20628 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) STARTER MOTOR ASSEMBLY NO. 53-4500 Parts Diagram

Walk-Behind Mower

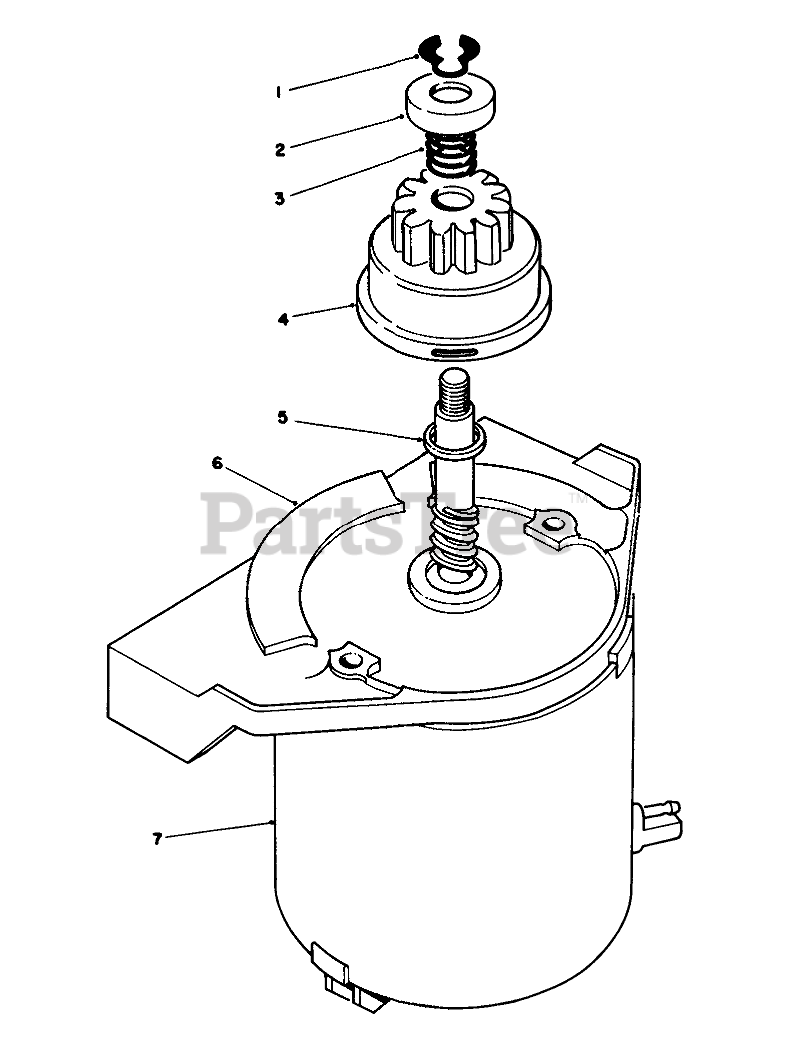

STARTER MOTOR ASSEMBLY NO. 53-4500 Parts Diagram

  • Title
1

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

2

Toro 49-2170

PINION STOP

$10.99

$

In Stock, only 1 left!

0

3

Toro 44-0500

COMPRESSION SPRING

$

$

Not available

4

Toro 434370

Pinion Assembly

$

$

Currently unavailable

5

Toro 23-9591

SPACER

$

$

Not available

6

Toro 53-4460

END FRAME ASSY, MOTOR

$109.99

$

Usually ships in 3-6 days

0

7

Toro 53-4490

Motor-Starter (Incl. Ref. #6)
(Superseded to 53-4500)

$

$

Not available
