20628 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) CARBURETOR ASSEMBLY Parts Diagram

Walk-Behind Mower

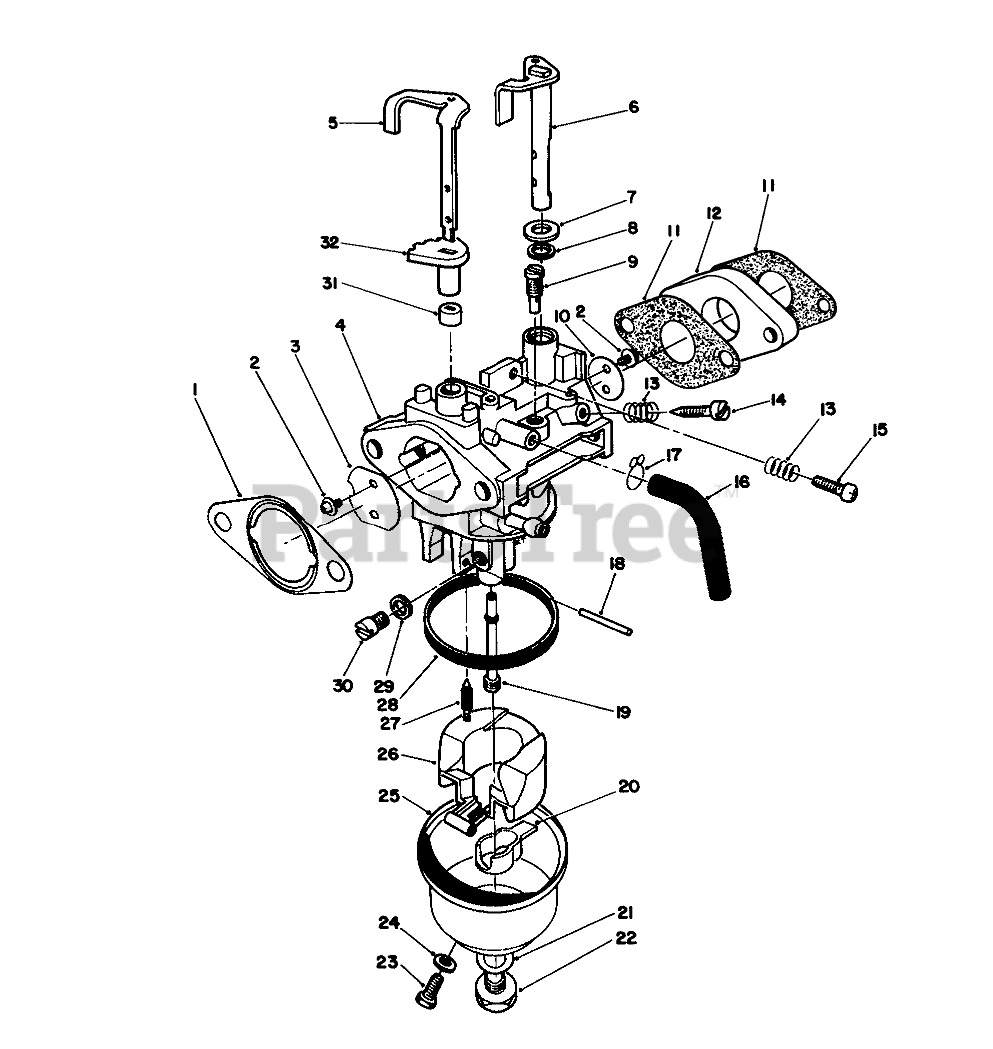

CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 81-4250

GASKET F/W ENGINE

$14.99

$

Usually ships in 3-6 days

0

2

Toro 81-2710

Screw
(Superseded to 81-2160)

$4.99

$

Usually ships in 3-6 days

0

3

Toro 81-2720

VALVE

$

$

Not available

4

Body-Carburetor

$

$

Not available

5

Toro 81-5500

Shaft-Choke Valve

$

$

Currently unavailable

6

Toro 81-2920

SHAFT

$

$

Not available

7

Toro 81-4280

WASHER

$

$

Not available

8

Toro 81-4290

Seal-Throttle Shaft
(Superseded to 81-2530)

$9.49

$

Usually ships in 3-6 days

0

9

Toro 81-1030

PILOT JET

$36.99

$

Usually ships in 3-6 days

0

10

Toro 81-2940

VALVE

$

$

Not available

11

Toro 81-2570

Gasket-Carburetor
(Superseded to 81-0780)

$7.49

$

In Stock, Qty 11

0

12

Toro 81-0460

CARB INSULATOR

$32.99

$

In Stock, only 2 left!

0

13

Toro 81-2580

SPRING-PILOT SCREW

$

$

Not available

14

Toro 50-2360

ADJUSTER

$21.99

$

Usually ships in 3-6 days

0

15

Toro 50-0250

SCREW

$

$

Not available

16

Toro 81-4310

TUBE

$

$

Not available

17

Toro 81-4300

CLAMP

$

$

Not available

18

Toro 81-0980

Pin
(Superseded to 81-2600)

$8.99

$

Usually ships in 3-6 days

0

19

Toro 81-4330

NOZZLE

$

$

Not available

20

Toro 81-4940

SPACER

$

$

Not available

21

Toro 81-2650

GASKET

$

$

Not available

22

Toro 81-2660

SCREW

$31.99

$

In Stock, only 2 left!

0

23

Toro 81-2670

SCREW

$12.99

$

Usually ships in 3-6 days

0

24

Toro 81-2680

GASKET

$6.99

$

In Stock, only 4 left!

0

25

Toro 81-4340

BOWL

$133.99

$

In Stock, only 1 left!

0

26

Toro 81-4920

FLOAT

$58.99

$

Usually ships in 3-6 days

0

27

Toro 81-4700

NEEDLE
(Superseded to 81-5820)

$47.99

$

In Stock, only 2 left!

0

28

Toro 81-2630

FLOAT BOWL GASKET

$

$

Not available

29

Toro 81-4350

SPACER

$

$

Not available

30

Toro 50-4760

MAIN JET

$28.99

$

Usually ships in 3-6 days

0

Toro 81-1040

MAIN JET

$31.99

$

Usually ships in 3-6 days

0

Toro 81-4360

Carburetor Kit (Incl. Ref. #1, 11, 21, 24, 27&28)

$159.99

$

Usually ships in 3-6 days

0

Toro 81-4750

Carburetor Assembly (Incl. Ref. #2-32)

$729.99

$

Usually ships in 3-6 days

0

31

Toro 81-5530

LOWER CHOKE RING

$16.99

$

Usually ships in 3-6 days

0

32

Toro 81-5520

UPPER CHOKE RING

$16.99

$

Usually ships in 3-6 days

0

Toro 81-4270

Shaft-Choke Assembly (Incl. Ref. #31-32)

$

$

Not available
