20626 C - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) RECOIL ASSEMBLY (MODEL NO. VMG6) Parts Diagram

Walk-Behind Mower

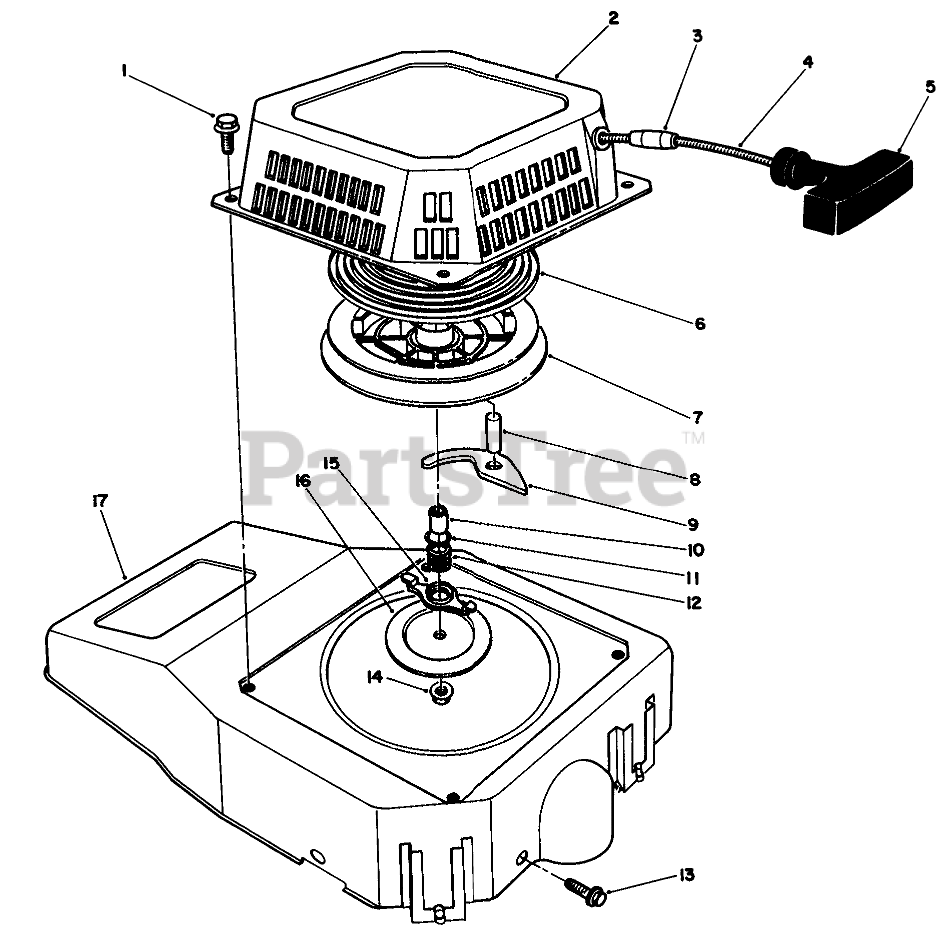

RECOIL ASSEMBLY (MODEL NO. VMG6) Parts Diagram

  • Title

1

Toro 81-1280

SCREW-HHF

$1.99

$

In Stock, only 3 left!

0

2

Toro 81-3970

Case-Recoil

$

$

Not available

3

Toro 81-3980

STOP

$7.49

$

In Stock, only 1 left!

0

4

Toro 81-1270

ROPE-STARTER
(Superseded to 613773)

$36.99

$

In Stock, only 2 left!

0

5

Toro 81-4000

HANDLE

$29.99

$

Usually ships in 3-6 days

0

6

Toro 81-4010

SPRING

$76.99

$

Usually ships in 3-6 days

0

7

Toro 81-4020

REEL

$101.99

$

Usually ships in 3-6 days

0

8

Toro 81-4030

Pin

$

$

Not available

9

Toro 81-4040

PAWL

$

$

Not available

10

Toro 81-4050

Spacer

$

$

Not available

11

Toro 81-4060

WASHER

$

$

Not available

12

Toro 81-4070

Spring-Friction

$

$

Not available

13

Toro 81-1170

BOLT

$

$

Not available

14

Toro 81-4100

NUT

$

$

Not available

15

Toro 81-4080

Guide-Paw

$

$

Not available

16

Toro 81-4090

PLATE

$

$

Not available

17

Toro 81-3960

SHROUD

$312.99

$

Usually ships in 3-6 days

0

Toro 81-3260

Recoil Starter Assembly (Incl. Ref. #2-12, & 14-16)

Note: Not illustrated

$491.99

$

Usually ships in 3-6 days

0
