20626 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

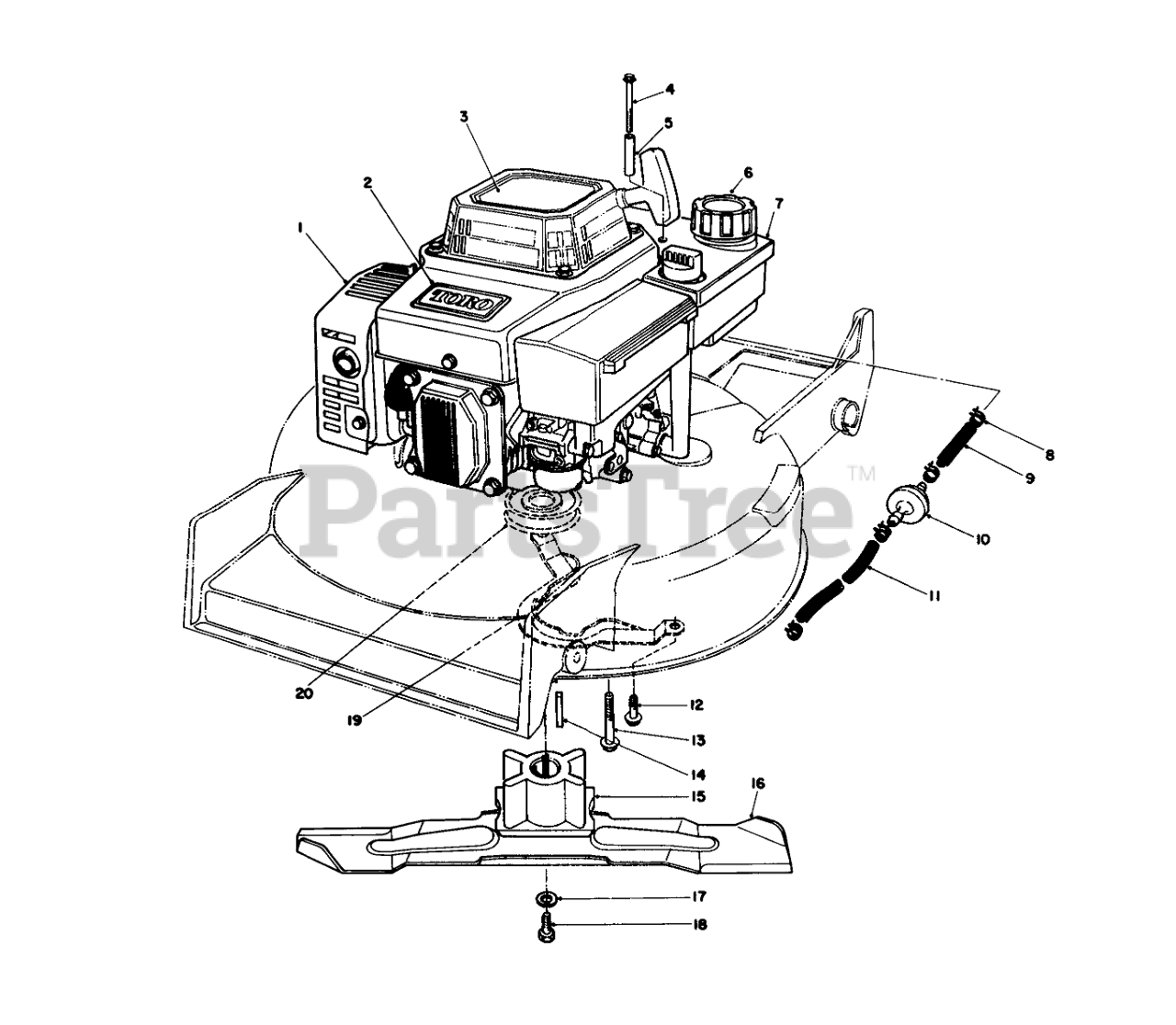

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 81-3040

Engine
(Superseded to 72-4144)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

3

Toro 57-3120

DECAL-HV INT'L

$

$

Not available

4

Toro 56-6610

THRD FORMING SCREW

$5.49

$

Usually ships in 3-6 days

0

5

Toro 57-3830

TUBULAR SPACER

$5.99

$

Usually ships in 3-6 days

0

6

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

7

Toro 55-3530

TANK ASM

$160.99

$

In Stock, only 2 left!

0

8

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

9

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

10

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

11

Toro 51-3214

HOSE-FUEL

$5.49

$

In Stock, only 2 left!

0

12

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

13

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

14

Toro 7-0036

KEY-SQUARE

$

$

Not available

15

Toro 46-7810

Retainer Blade
(Superseded to 62-7540)

$98.99

$

In Stock, only 1 left!

0

16

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

17

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

18

Toro 26-0670

SCREW-BLADE

$

$

Not available

19

Toro 40-5720

BELT GUIDE

$

$

Not available

20

Toro 46-7910

PULLEY-DRIVER

$36.99

$

In Stock, only 2 left!

0

Toro 56-6680

Drain Tube
(Superseded to 75-9850)

Note: Not illustrated

$

$

Not available
