20624 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) STARTER MOTOR ASSEMBLY NO. 53-4500 Parts Diagram

Walk-Behind Mower

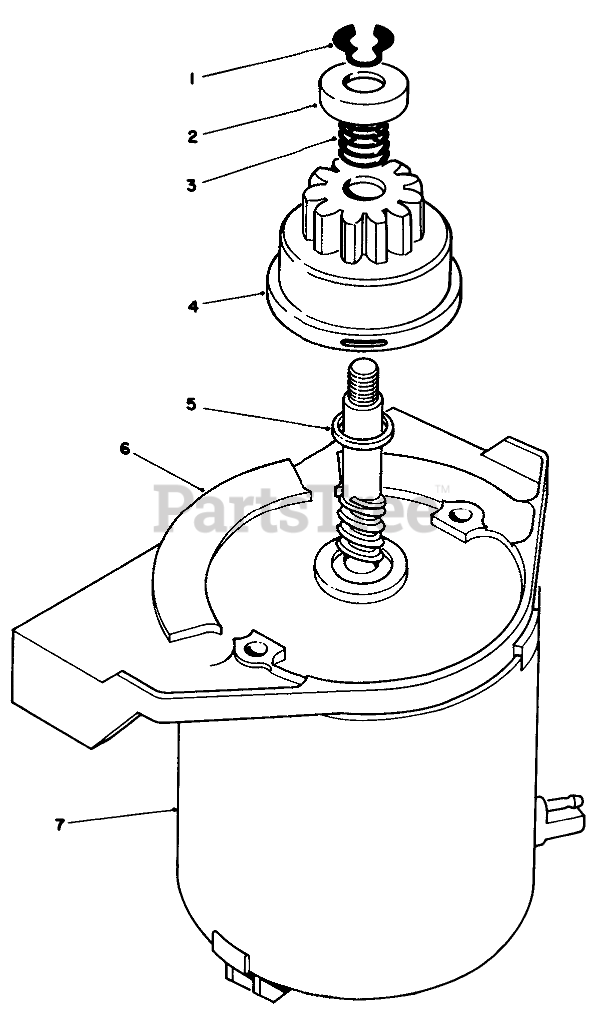

STARTER MOTOR ASSEMBLY NO. 53-4500 Parts Diagram

  • Title
1

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

2

Toro 49-2170

PINION STOP

$10.99

$

In Stock, only 1 left!

0

3

Toro 44-0500

COMPRESSION SPRING

$7.49

$

Usually ships in 3-6 days

0

4

Toro 43-4370

PINION ASM

$101.99

$

Usually ships in 3-6 days

0

5

Toro 23-9591

SPACER

$

$

Not available

6

Toro 53-4500

Motor-Starter (Incl. Ref. #7)

$

$

Not available

7

Toro 53-4460

END FRAME ASSY, MOTOR

$96.99

$

Usually ships in 3-6 days

0
