20622 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) CARBURETOR ASSEMBLY (MODEL NO. VMG6) Parts Diagram

Walk-Behind Mower

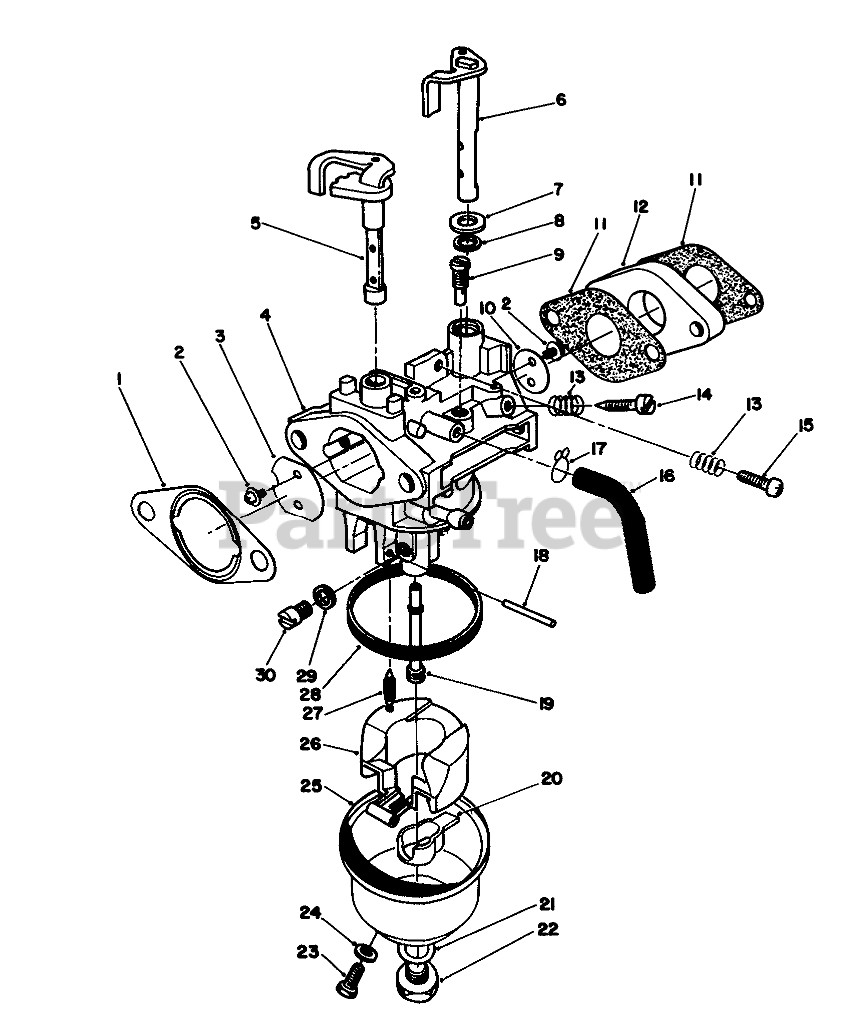

CARBURETOR ASSEMBLY (MODEL NO. VMG6) Parts Diagram

  • Title
1

Toro 81-4250

GASKET F/W ENGINE

$12.99

$

Usually ships in 3-6 days

0

2

Toro 81-2710

Screw
(Superseded to 81-2160)

$4.99

$

Usually ships in 3-6 days

0

3

Toro 81-2720

VALVE

$

$

Not available

4

Toro 93-4341

BODY - CARB F

$

$

Not available

5

Toro 81-4270

SHAFT

$

$

Not available

6

Toro 81-2920

SHAFT

$

$

Not available

7

Toro 81-4280

WASHER

$

$

Not available

8

Toro 81-4290

Seal-Throttle Shaft
(Superseded to 81-2530)

$8.99

$

Usually ships in 3-6 days

0

9

Toro 81-1030

PILOT JET

$33.99

$

Usually ships in 3-6 days

0

10

Toro 81-2940

VALVE

$

$

Not available

11

Toro 81-2570

Gasket-Carburetor
(Superseded to 81-0780)

$6.99

$

In Stock, only 2 left!

0

12

Toro 81-0460

CARB INSULATOR

$31.99

$

Usually ships in 3-6 days

0

13

Toro 81-2580

SPRING-PILOT SCREW

$

$

Not available

14

Toro 50-2360

ADJUSTER

$20.99

$

Usually ships in 3-6 days

0

15

Toro 50-0250

SCREW

$

$

Not available

16

$

$

Not available

17

Toro 81-4300

CLAMP

$

$

Not available

18

Toro 81-0980

Pin
(Superseded to 81-2600)

$8.49

$

Usually ships in 3-6 days

0

19

Toro 81-4330

NOZZLE

$

$

Not available

20

Toro 81-4940

SPACER

$

$

Not available

21

Toro 81-2650

GASKET

$6.99

$

Usually ships in 3-6 days

0

22

Toro 81-2660

SCREW

$29.99

$

In Stock, only 2 left!

0

23

Toro 81-2670

SCREW

$11.99

$

Usually ships in 3-6 days

0

24

Toro 81-2680

GASKET

$6.49

$

In Stock, Qty 5

0

25

$125.99

$

In Stock, only 1 left!

0

26

Toro 81-4920

FLOAT

$54.99

$

Usually ships in 3-6 days

0

27

Toro 81-4700

NEEDLE
(Superseded to 81-5820)

$45.99

$

In Stock, only 2 left!

0

28

Toro 81-2630

FLOAT BOWL GASKET

$12.99

$

In Stock, only 1 left!

0

29

Toro 81-4350

SPACER

$

$

Not available

30

Toro 50-4760

MAIN JET

$27.99

$

Usually ships in 3-6 days

0

Toro 81-1040

MAIN JET

$29.99

$

Usually ships in 3-6 days

0

Toro 12-6559

Carburetor Kit (Incl. Ref. #1, 11, 21, 24, 27 & 28)
(Superseded to 81-4890)

$138.99

$

Usually ships in 3-6 days

0

$687.99

$

Usually ships in 3-6 days

0
