20622 C - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

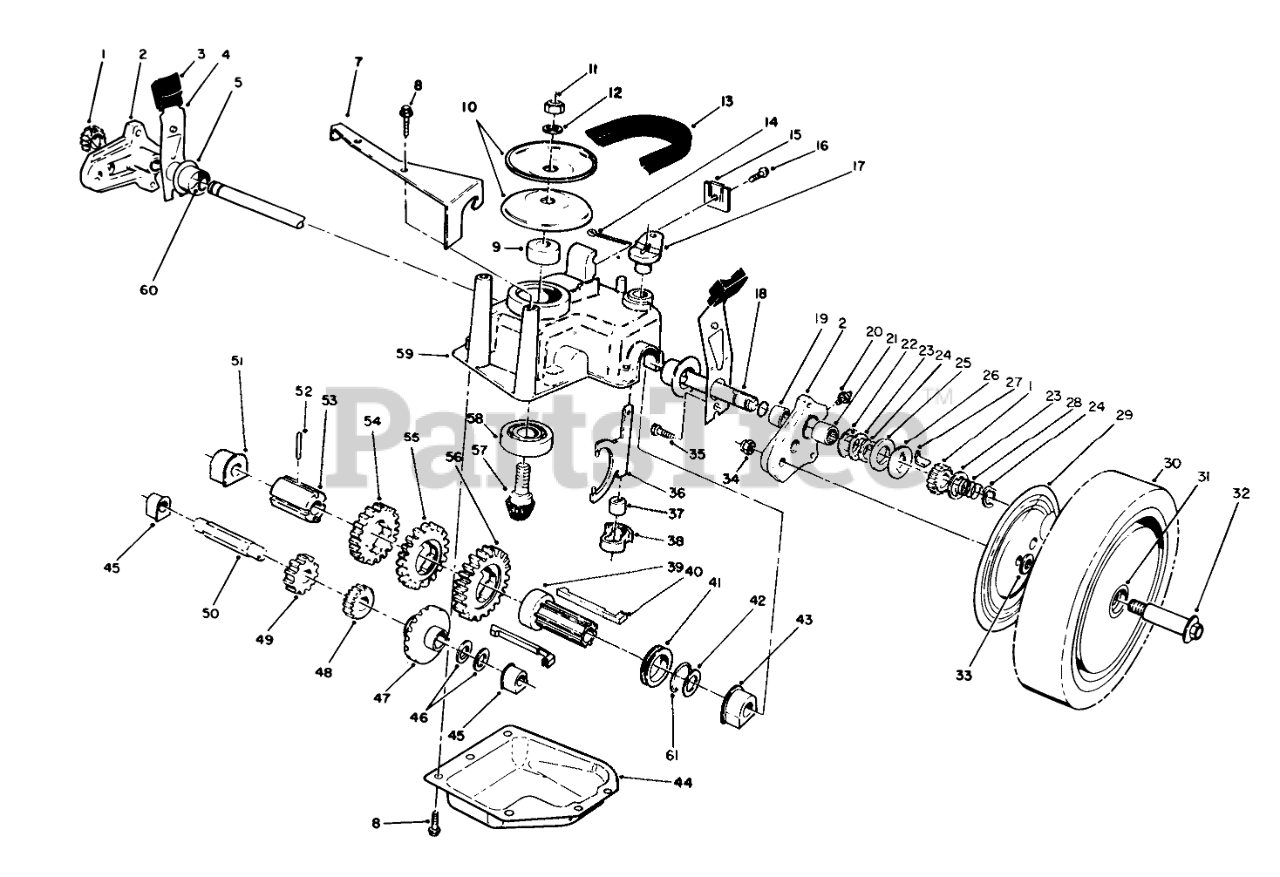

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Toro 65-4750

GEAR-PINION

$11.99

$

Usually ships in 3-6 days

0

2

Toro 63-8700

Pivot Arm Assembly (Incl. Ref. #19, 20, 21)
(Superseded to 63-8701)

$44.99

$

Usually ships in 3-6 days

0

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

4

Toro 63-8720

SPRING ARM ASM SP

$25.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.49

$

In Stock, only 2 left!

0

7

Toro 62-4320

Bracket-Guide
(Superseded to 62-4320-03)

$26.99

$

Usually ships in 3-6 days

0

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

9

Toro 62-6660

SPACER

$1.49

$

In Stock, only 3 left!

0

10

Toro 60-8840

Pulley Half
(Superseded to 100-1176)

$8.49

$

In Stock, only 2 left!

0

11

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 62-3900

V-BELT E

$22.99

$

In Stock, only 1 left!

0

14

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

15

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 60-8820

SHIFT LEVER

$8.99

$

Usually ships in 3-6 days

0

18

Toro 654770

Shaft-Output

$

$

Currently unavailable

19

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

20

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, only 3 left!

0

21

Toro 48-2060

BEARING-ROLLER
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 16

0

22

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 9

0

23

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

24

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

25

Toro 65-4710

RING-FRICTION

$2.99

$

In Stock, Qty 20+

0

26

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 15

0

27

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 14

0

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 7

0

28

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

29

Toro 63-5270

WHEEL COVER

$

$

Not available

30

Toro 11-9519

Wheel-Tire & Gear Assy. (Incl. Ref. #31)
(Superseded to 14-9959)

$36.99

$

In Stock, only 2 left!

0

31

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 15

0

32

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

33

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

34

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

35

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

36

Toro 60-8870

YOKE-SHIFT

$23.99

$

In Stock, only 2 left!

0

37

Toro 29-9570

BUSHING-YOKE

$11.99

$

In Stock, only 3 left!

0

38

Toro 60-8810

RETAINER-FORK, SHIFT

$

$

Not available

39

Toro 60-8780

Sleeve-Shift Key
(Superseded to 74-3620)

$4.99

$

Usually ships in 3-6 days

0

40

Toro 65-5230

SHIFT KEY

$

$

Not available

41

Toro 60-8760

SHIFT COLLAR

$

$

Not available

42

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 2 left!

0

43

Toro 60-8770

BUSHING-OUTPUT

$6.99

$

In Stock, only 3 left!

0

44

Toro 60-8730

Cover-Gearcase
(Superseded to 60-8730-03)

$

$

Not available

45

Toro 60-8750

BUSHING

$5.99

$

In Stock, Qty 10

0

46

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

47

Toro 55-3760

Gear-Bevel
(Superseded to 104-7668)

$30.99

$

In Stock, only 1 left!

0

48

Toro 55-3780

PINION-20T

$35.99

$

In Stock, only 1 left!

0

49

Toro 55-3800

PINION-25T

$40.99

$

Usually ships in 3-6 days

0

50

Toro 60-8800

SHAFT-INTERMEDIATE
(Superseded to 614696)

$94.99

$

Usually ships in 3-6 days

0

51

Toro 60-8850

BUSHING

$7.49

$

In Stock, Qty 17

0

52

Toro 32121-120

PIN-SPRING

$1.99

$

In Stock, only 2 left!

0

53

Toro 60-8790

SLEEVE-GEAR

$50.99

$

Usually ships in 3-6 days

0

54

Toro 55-3810

GEAR-39T

$50.99

$

Usually ships in 3-6 days

0

55

Toro 55-3790

GEAR-44T

$62.99

$

Usually ships in 3-6 days

0

56

Toro 55-3770

GEAR-49T

$62.99

$

Usually ships in 3-6 days

0

57

Toro 60-8890

Gear-Pinion
(Superseded to 104-7667)

$15.99

$

In Stock, only 1 left!

0

58

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

59

Toro 60-8710

CASE-GEAR, UPPER

$

$

Not available

60

Toro 237-153

O-RING

$3.49

$

Usually ships in 3-6 days

0

61

Toro 65-5250

CLIP-SPRING

$0.99

$

In Stock, Qty 14

0

Toro 62-6672

Gear Case Assembly
(Superseded to 62-6673)

$753.99

$

Usually ships in 3-6 days

0
