20616x50H - Murray 20" Walk-Behind Mower (2004) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

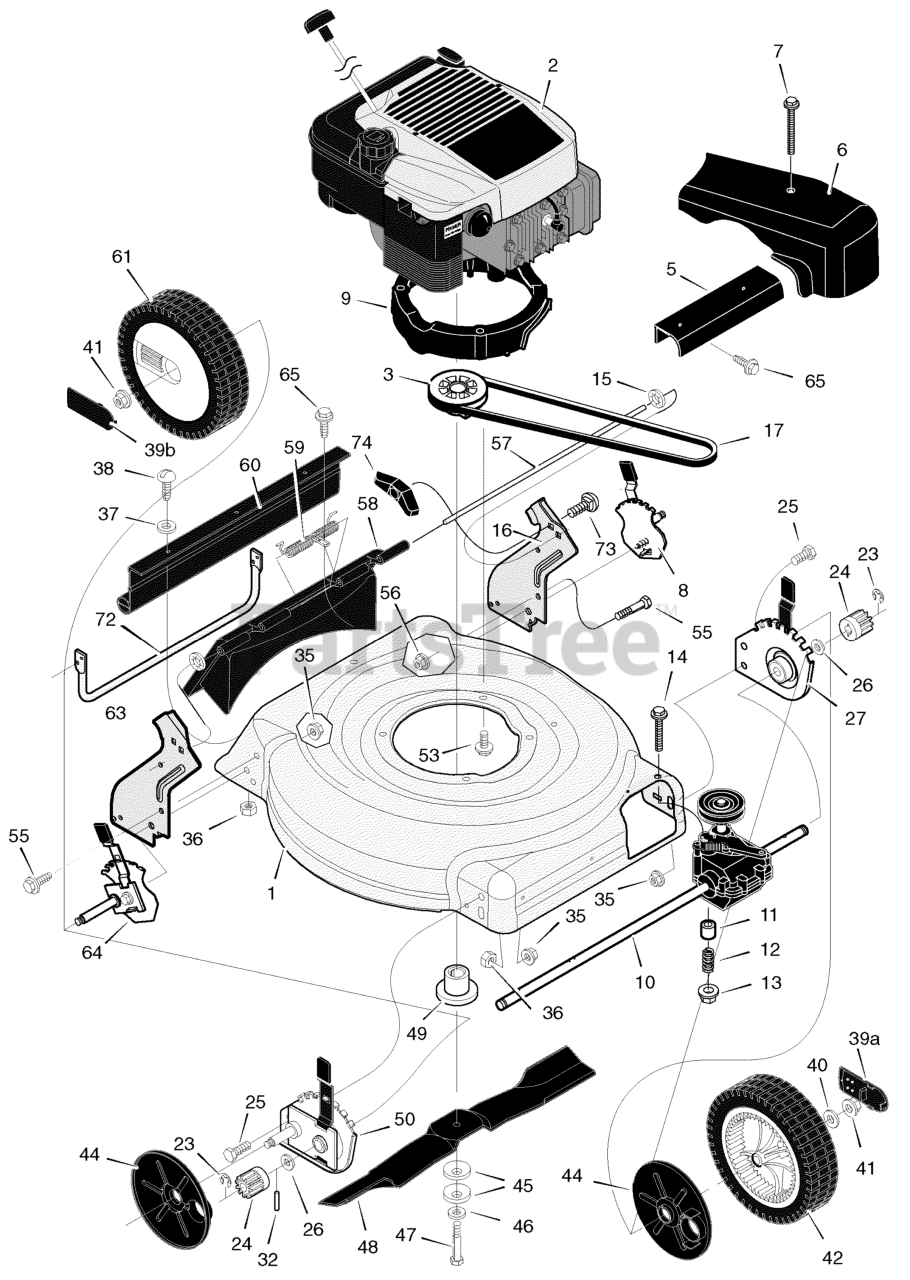

Mower Housing Assembly Parts Diagram

  • Title

1

Housing

$

$

Not available

2

Engine *

$

$

Not available

3

Murray 1101653

Pulley, Crankshaft

$9.99

$

Usually ships in 2-12 days

0

5

Murray 1101637

Cover, Axle (Gray)

$6.49

$

Usually ships in 2-12 days

0

6

Murray 1101635

Cover, Belt (Gray)

$33.99

$

Usually ships in 2-12 days

0

7

Murray 26X304

Screw

$4.49

$

Usually ships in 2-12 days

0

8

Murray 672605

Adjuster, Left Height

$23.99

$

Usually ships in 2-12 days

0

9

Murray 1101640

Spacer, Engine

$21.99

$

Usually ships in 2-12 days

0

10

Murray 1101619

Transmission *

$90.99

$

Usually ships in 2-12 days

0

11

Murray 43844

Spacer
(Superseded to 7043844YP)

$34.99

$

In Stock, Qty 20+

0

12

Murray 164X27

Spring

$

$

Not available

13

Murray 015X88

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

14

Murray 01X156

Bolt
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

15

Murray 028X49

Retainer, Push

Note: (Included with Ref. No. 58)

$3.99

$

In Stock, Qty 13

0

16

Murray 1101239E245

Bracket, Left Handle

$

$

Currently unavailable

17

Murray 37X128

Belt

$20.99

$

Usually ships in 2-12 days

0

23

Murray 011X16

E-Ring

$3.99

$

Usually ships in 2-12 days

0

24

Murray 71792

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

25

Murray 001X85

Bolt
(Superseded to 001X85MA)

$3.99

$

Usually ships in 2-12 days

0

26

Murray 17X186

Washer

$

$

Not available

27

Murray 672603

Adjuster, Left Frt. Height

$

$

Not available

35

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

36

Murray 15X102

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

37

Murray 017X38

Washer
(Superseded to 017X38MA)

$3.99

$

Usually ships in 2-12 days

0

38

Murray 004X21

Screw
(Superseded to 004X21MA)

$3.99

$

Usually ships in 2-12 days

0

39a

Murray 43615

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

39b

Murray 43847

Cap, Hub

$

$

Not available

40

Murray 17X169

Washer

$4.49

$

In Stock, only 2 left!

0

41

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

42

Murray 71133

Wheel, Drive

$50.99

$

In Stock, only 2 left!

0

44

Murray 71780

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

45

Murray 17X137

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

46

Murray 17X124

Washer

$

$

Not available

47

Murray 01X144

Bolt

$5.49

$

In Stock, only 3 left!

0

48

Murray 672763E701

Blade

$

$

Not available

49

Murray 1101336

Adapter, Blade

$9.99

$

Usually ships in 2-12 days

0

50

Murray 672602

Adjuster, Right Frt. Height

$79.99

$

Usually ships in 2-12 days

0

53

Murray 025X11

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

55

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

56

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

57

Murray 215X17 Z

Rod, Pivot

Note: (Included with Ref. No. 58)

$

$

Currently unavailable

58

Murray 672612

Door, Rear (Gray)

$49.99

$

Usually ships in 2-12 days

0

59

Murray 166X44

Spring

Note: (Included with Ref. No. 58)

$14.99

$

In Stock, only 1 left!

0

60

Murray 671970

Deflector, Rear

$13.99

$

Usually ships in 2-12 days

0

61

Murray 71134

Wheel, Rear

$34.99

$

Usually ships in 2-12 days

0

63

Murray 1101238E245

Bracket, Right Handle

$6.49

$

Usually ships in 2-12 days

0

64

Murray 672604

Adjuster, Right Height

$24.99

$

Usually ships in 2-12 days

0

65

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

72

Murray 671990

Guard, Rear

$

$

Not available

73

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

74

Murray 71495

Knob

$

$

Not available

--

Murray F-040453L

Instruction Book

$

$

Currently unavailable

32

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, only 3 left!

0
