20616x50H - Murray 20" Walk-Behind Mower (2004) Handle & Bag Assembly Parts Diagram

20" Walk-Behind Mower

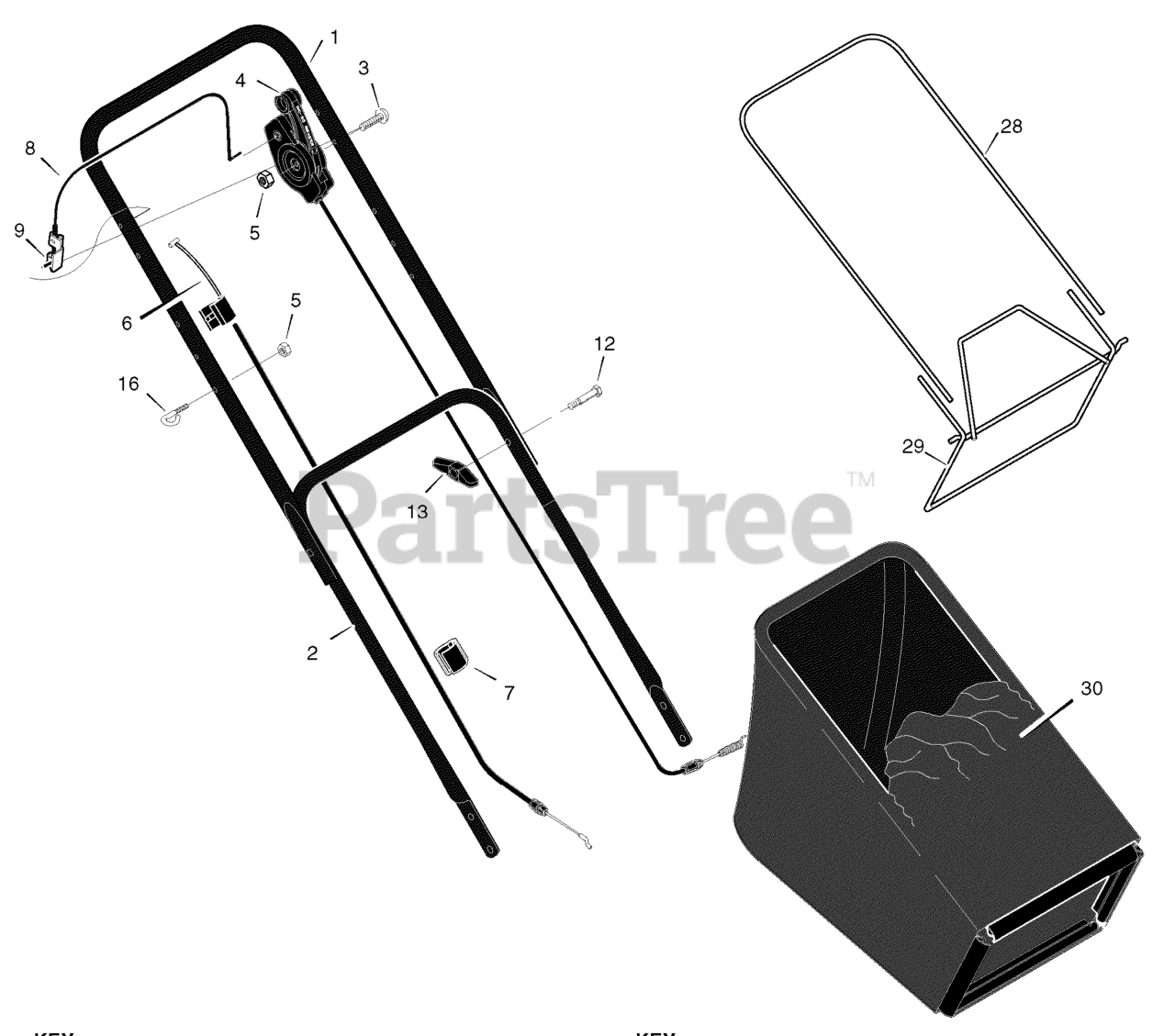

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 1101555E724

Handle, Upper (Gray)

$

$

Currently unavailable

2

Murray 672874E724

Handle, Lower (Gray)

$

$

Not available

3

Murray 025X14

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1101678

Cable, Drive

$39.99

$

Usually ships in 2-12 days

0

5

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101183

Cable, Stop

$

$

Not available

7

Murray 1101353

Fastener, Cable

$5.99

$

In Stock, only 2 left!

0

8

Murray 672878E701

Engine Stop Lever

$4.99

$

Usually ships in 2-12 days

0

9

Murray 1101454

Bracket, Stop Lever

$20.99

$

In Stock, only 1 left!

0

12

Murray 002X77

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 71294

Knob

$7.99

$

In Stock, Qty 6

0

16

Murray 71530

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

28

Murray 71592

Frame, Top

$

$

Not available

29

Murray 672905

Frame Assembly

$

$

Not available

30

Murray 1101032

Bag, Cloth

$164.99

$

Usually ships in 2-12 days

0
