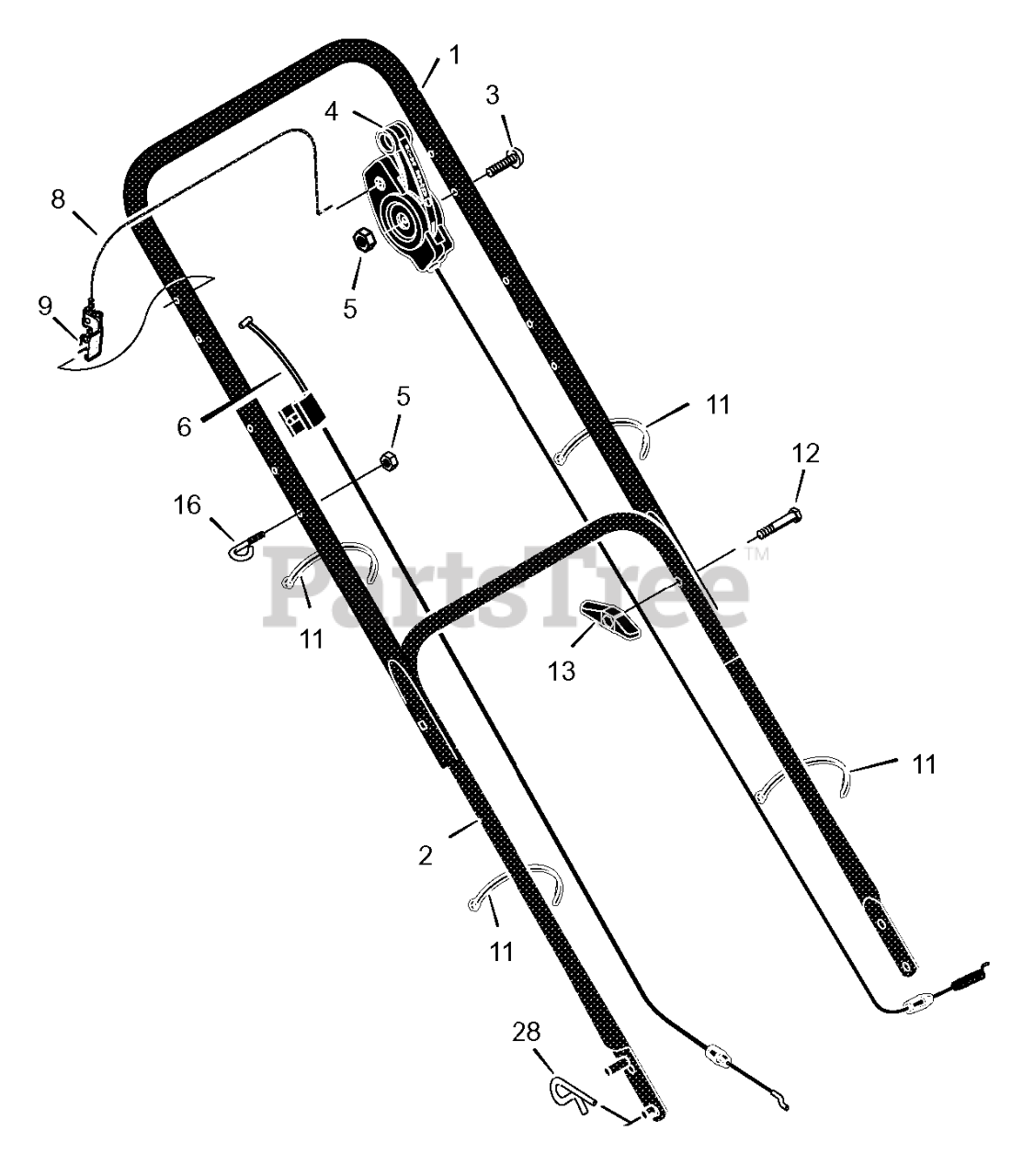

20615x8B - Scotts 20" Walk-Behind Mower (2000) Handle Assembly Parts Diagram

20" Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Murray 671918E701

Handle, Upper (Black)

$11.99

$

Usually ships in 2-12 days

0

2

Murray 1101010E701MA

Handle, Lower (Black)

$139.99

$

Usually ships in 2-12 days

0

3

Murray 025X14MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 672872MA

Control, Drive

$

$

Not available

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 672831

Cable, Stop

$

$

Currently unavailable

8

Murray 672878E701MA

Lever, Stop

$4.99

$

Usually ships in 2-12 days

0

9

Murray 1101454E701MA

Bracket, Stop Lever

$20.99

$

In Stock, only 1 left!

0

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

28

Murray 031X10MA

Hairpin

$3.49

$

Usually ships in 2-12 days

0
