20611 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HOUSING ASSEMBLY (USED ON UNITS WITH SERIAL NO. 9012542 & UP) Parts Diagram

Walk-Behind Mower

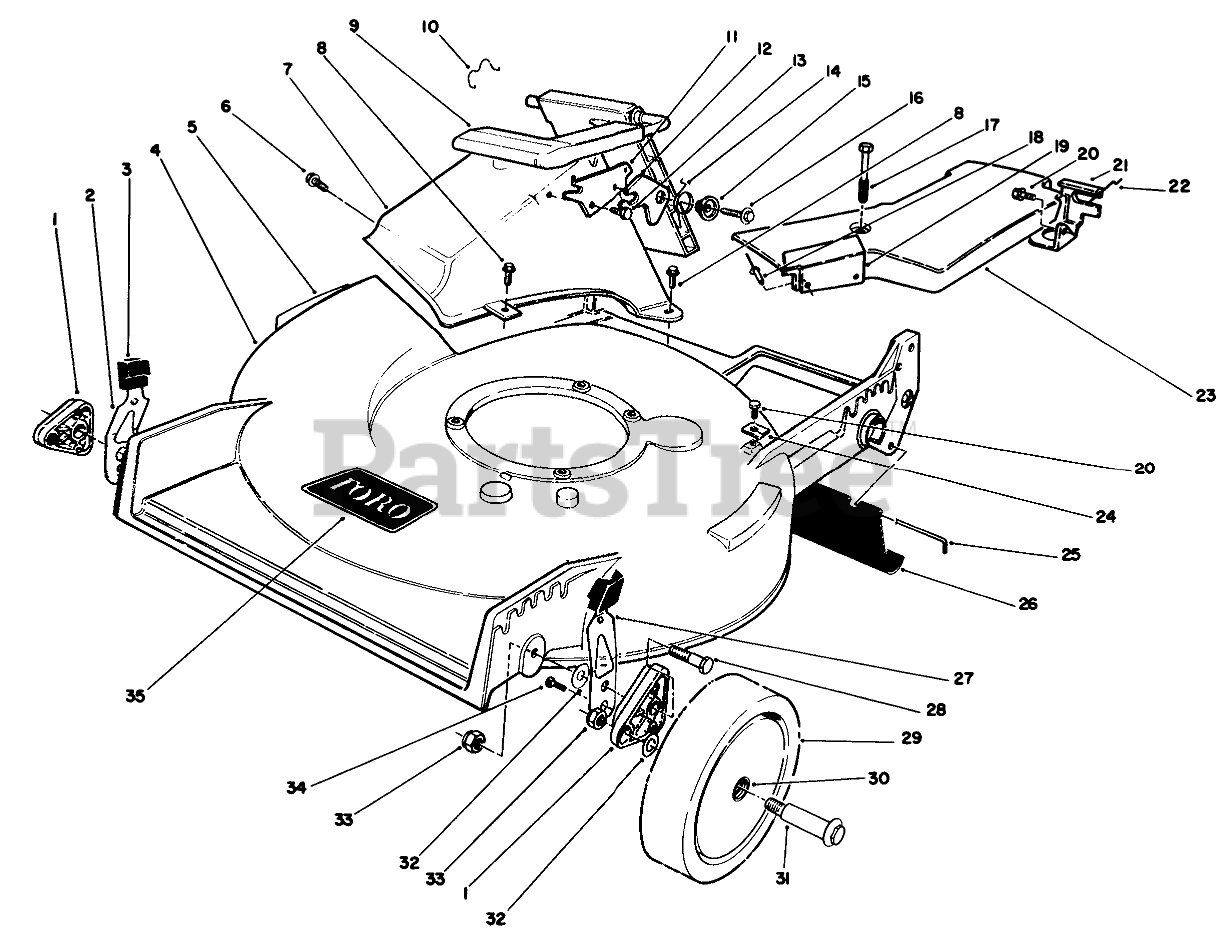

HOUSING ASSEMBLY (USED ON UNITS WITH SERIAL NO. 9012542 & UP) Parts Diagram

  • Title
1

Toro 66-0580

ARM-PIVOT, FRONT

$18.99

$

In Stock, only 1 left!

0

2

Toro 71-0560

RH SPRING ARM ASSEMBLY
(Superseded to 71-0561)

$19.99

$

In Stock, only 1 left!

0

3

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

4

Toro 13-4649

Housing (Incl. Ref. #5 & 8)
(Superseded to 14-3489)

$863.99

$

Usually ships in 3-6 days

0

5

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

6

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

7

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$192.99

$

Usually ships in 3-6 days

0

8

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

9

Toro 51-0201

Discharge Door Assembly
(Superseded to 77-0200)

$

$

Not available

10

Toro 47-5840

DOOR RET SPRING

$

$

Not available

11

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

12

Toro 42-4010

SAFETY LATCH

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

15

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

16

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

17

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, only 2 left!

0

18

Toro 3295-35

RIVET-HEAD, FLAT

$2.99

$

Usually ships in 3-6 days

0

19

Toro 38-8730

HEAT SHIELD

$

$

Not available

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 62-3940

Bracket-Traction Adj.
(Superseded to 82-5680-03)

$14.99

$

Usually ships in 3-6 days

0

22

Toro 46-7030

RETAINER-CABLE

$6.49

$

In Stock, only 2 left!

0

23

Toro 52-7404

Belt Cover Assembly (Incl. Ref. #18-19)

$84.99

$

Usually ships in 3-6 days

0

24

Toro 62-3720

CLAMP-CABLE

$2.99

$

In Stock, only 3 left!

0

25

Toro 33-3203

Rod Shield
(Superseded to 47-4682)

$

$

Not available

26

Toro 29-9180

SHIELD - TRAILING

$67.99

$

Usually ships in 3-6 days

0

27

Toro 71-0570

LH SPRING ARM ASSEMBLY

$24.99

$

Usually ships in 3-6 days

0

28

Toro 66-0560

BOLT-SHOULDER

$4.99

$

In Stock, Qty 16

0

29

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #30)

$

$

Not available

30

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 9

0

31

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 8

0

32

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

33

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

34

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

35

Toro 70-2200

DECAL

$6.49

$

Usually ships in 3-6 days

0
