20611 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HANDLE & TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

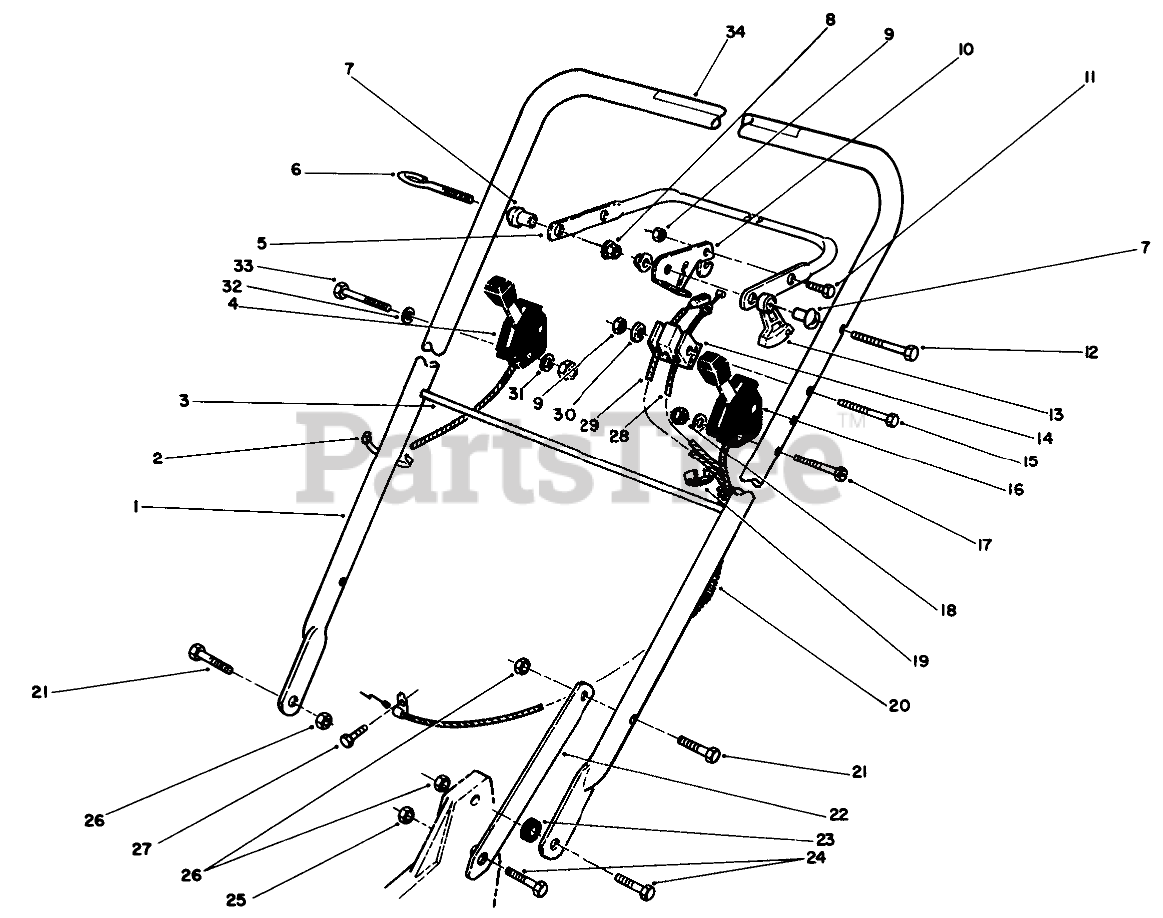

HANDLE & TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 13-6939

Handle (Incl. Ref. #34)

$

$

Not available

2

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

3

Toro 71-0930

B ROD - BAG

$

$

Not available

4

Toro 71-3680

GROUND SPEED CONTROL

$

$

Not available

5

Toro 71-3080

Bar-Control
(Superseded to 71-3080-05)

$

$

Not available

6

Toro 71-3710

Guide-Rope

$

$

Not available

7

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

8

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

13

Toro 46-5520

LEVER-TRACTION

$

$

Not available

14

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

15

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

16

Toro 71-3670

THROTTLE CONTROL

$

$

Not available

17

Toro 32105-19

SCREW-SLOT HX HD

$

$

Not available

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

20

Toro 46-6440

CONTROL CABLE COVER

$

$

Not available

21

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 65-5830

HANDLE LATCH
(Superseded to 65-5830-03)

$

$

Not available

23

Toro 26-4840

SPACER-PIN, MOUNTING

$6.49

$

Usually ships in 3-6 days

0

24

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

25

Toro 3296-47

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, only 2 left!

0

27

Toro 2210-250

SCREW-HH

$

$

Not available

28

Toro 46-8011

BRAKE CABLE

$

$

Not available

29

Toro 46-5481

CABLE-TRACTION

$65.99

$

In Stock, only 1 left!

0

30

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Toro 57-3151

Washer

$

$

Currently unavailable

33

Toro 32105-20

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

34

Toro 71-1580

Decal-Warning

$

$

Not available
