20610 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

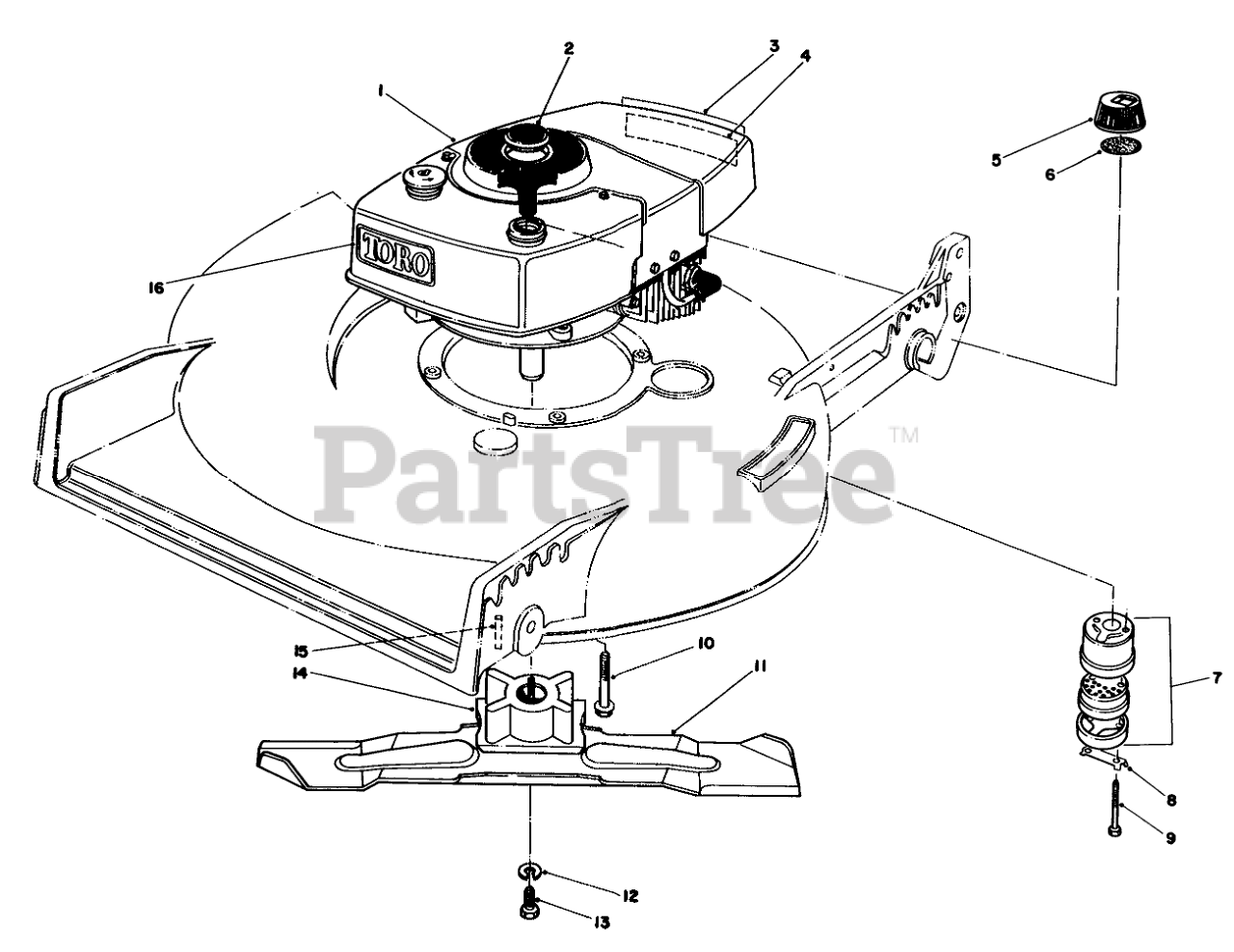

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-739

Engine

$

$

Currently unavailable

2

Toro 38-1481

Plug Button

$

$

Not available

3

Toro 46-9300

Decal-Primer

$

$

Not available

4

Toro 40-2950

Decal Maintenance

$

$

Not available

5

Toro 42-0682

Gas Cap Assembly (Incl. Ref. #6)

$

$

Not available

6

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

7

Toro 5-4769

Muffler Assembly (Incl. Ref. #8 & 9)

$62.99

$

Usually ships in 3-6 days

0

8

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

9

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

10

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

11

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

12

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

13

Toro 26-0670

SCREW-BLADE

$

$

Not available

14

Toro 46-3490

BLADE RETAINER(DEEP)

$109.99

$

In Stock, only 1 left!

0

15

Toro 7-0036

KEY-SQUARE

$

$

Not available

16

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

Toro 39-5930

Spark Arrestor Muffler (Optional)(Incl. Ref. #8 & 9)

Note: Not illustrated

$

$

Not available
