20610 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

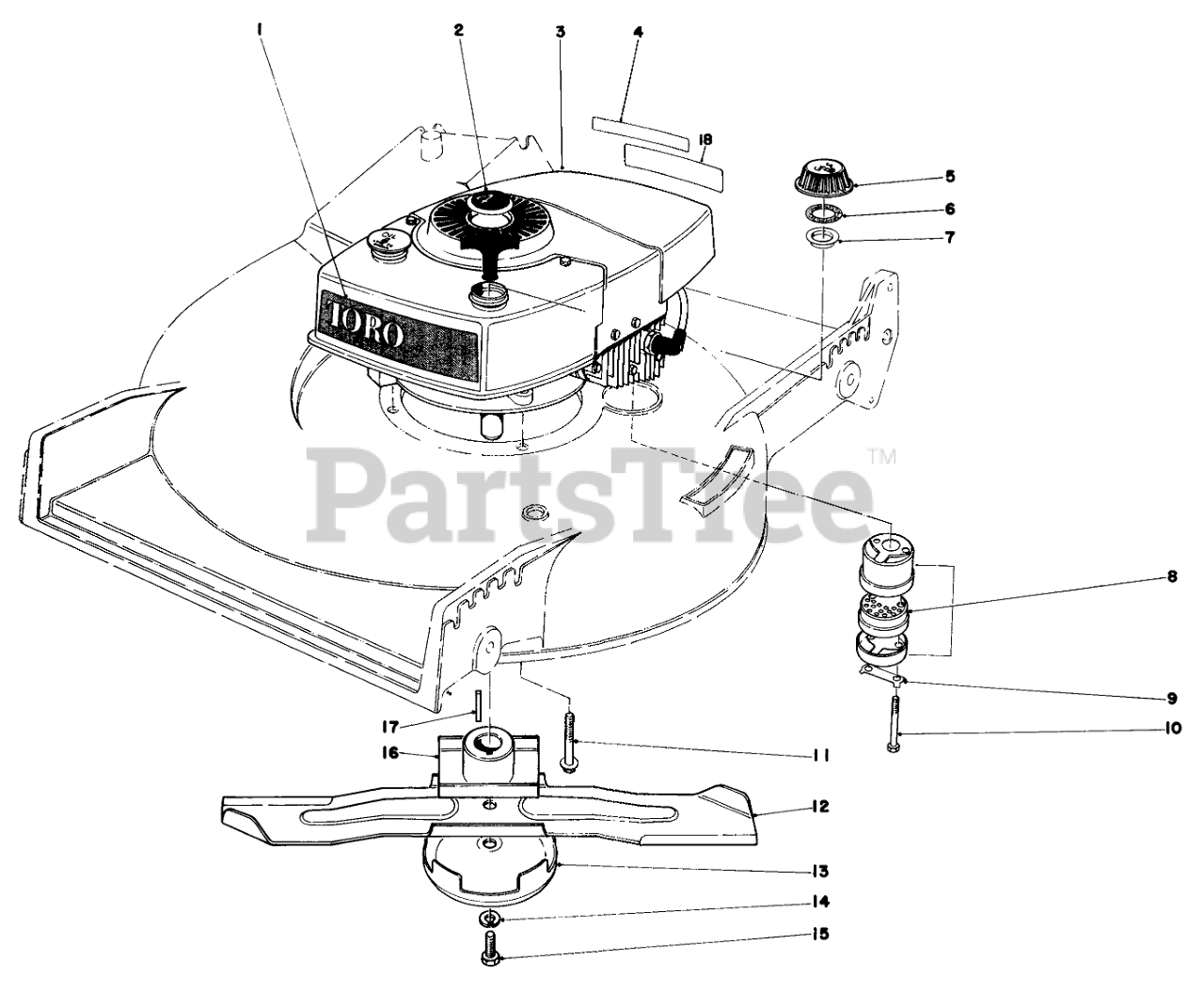

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 40-5470

Decal Toro
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 38-1482

Plug Button

$

$

Not available

3

Toro 221-622

Engine

$

$

Currently unavailable

4

Toro 40-2690

Snap Ring

$

$

Currently unavailable

5

Toro 27-7872

Gas Cap (Incl. Ref. #6 & 7)
(Superseded to 42-0682)

$

$

Not available

6

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

7

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

8

Toro 5-4769

Muffler Assembly (Incl. Ref. #9 & 10)

$54.99

$

Usually ships in 3-6 days

0

9

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

10

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

12

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

13

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$15.99

$

Usually ships in 3-6 days

0

14

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

15

Toro 23-0080

BLADE SCREW

$31.99

$

Usually ships in 3-6 days

0

16

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

17

Toro 7-0036

KEY-SQUARE

$

$

Not available

18

Toro 40-2950

Decal Maintenance

$

$

Not available
