20606x83A - Briggs & Stratton 20" Walk-Behind Mower (1998) Handle Assembly Parts Diagram

20" Walk-Behind Mower

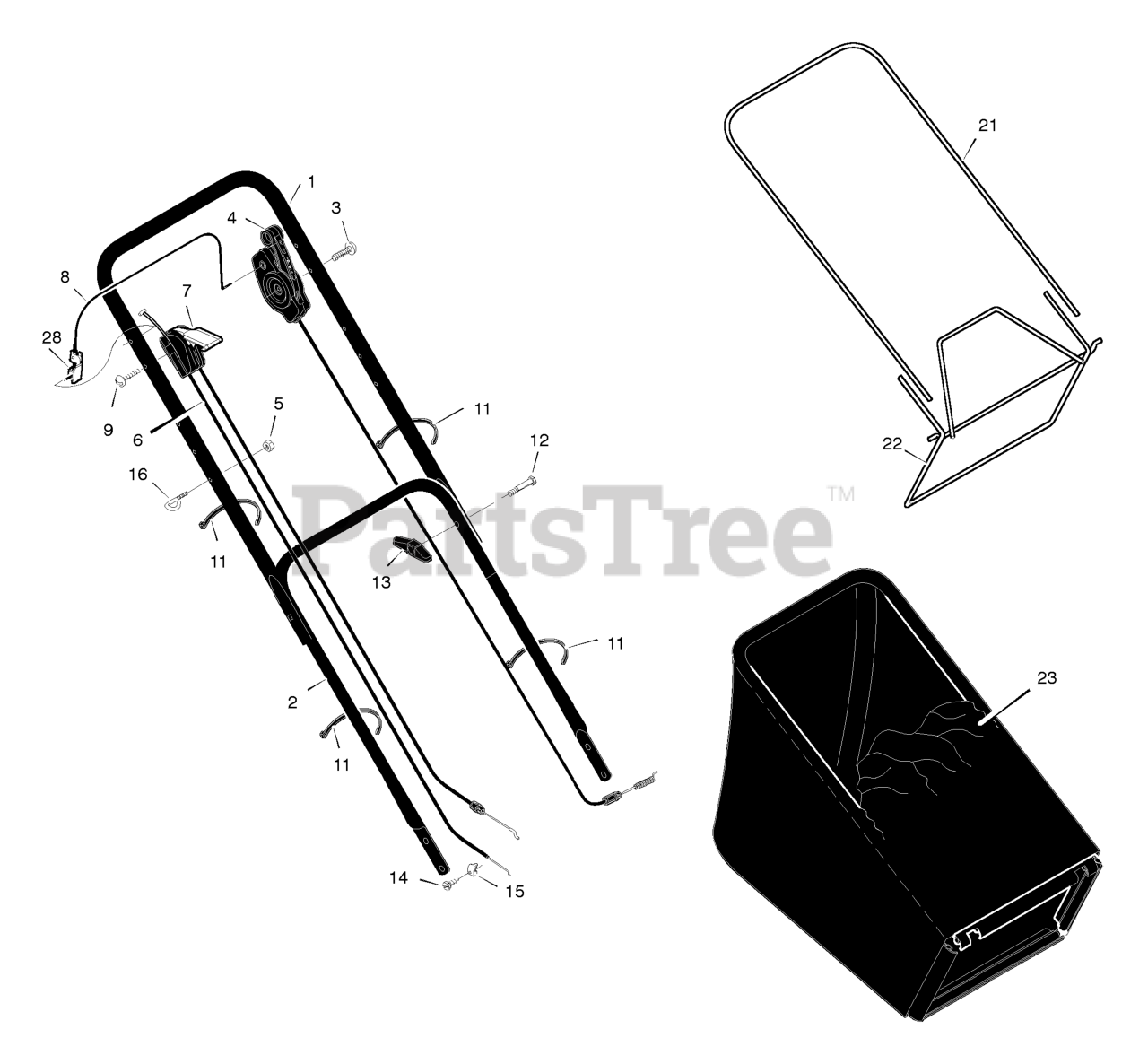

Handle Assembly Parts Diagram

  • Title

1

Murray 672665E701

Handle, Upper

$10.99

$

Usually ships in 2-12 days

0

2

Murray 671917E701

Handle, Lower

$

$

Not available

3

Murray 03X144

Bolt

$

$

Not available

4

Murray 672580MA

Control, Drive

$66.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 672664MA

Cable, Stop

$29.99

$

Usually ships in 2-12 days

0

7

Murray 672134MA

Throttle Control

$30.99

$

Usually ships in 2-12 days

0

8

Murray 672570E245

Engine Stop Lever

$

$

Currently unavailable

9

Murray 26X256MA

Screw

$

$

Not available

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

Murray 26X268MA

Screw

$3.99

$

Usually ships in 2-12 days

0

15

Murray 042294

Clamp

$

$

Not available

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

21

Murray 071592MA

Frame, Top

$

$

Not available

22

Murray 672614

Frame Assembly

$

$

Not available

23

Murray 672069

Bag, Cloth

$

$

Currently unavailable

28

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable
