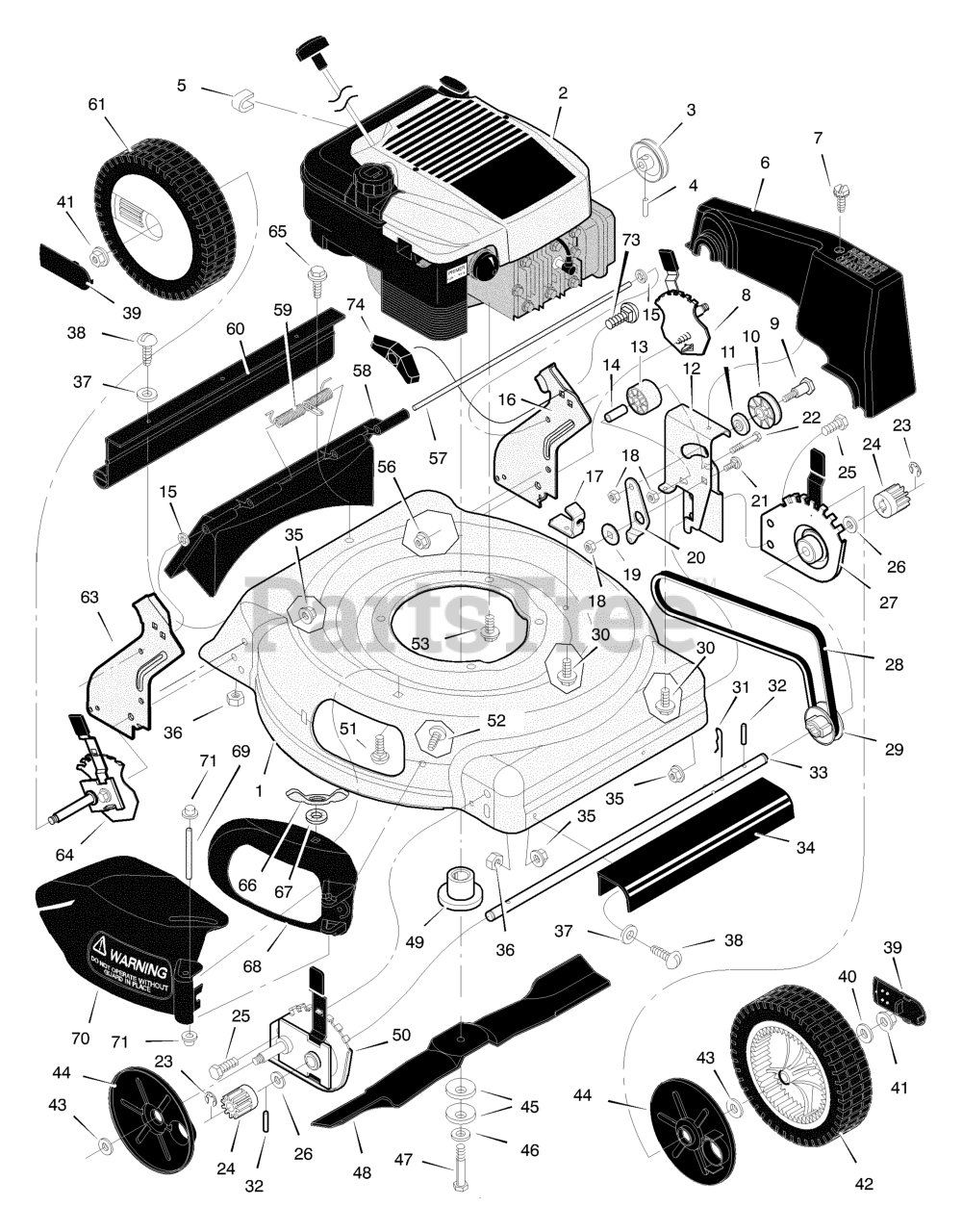

20606x30E - Murray 20" Walk-Behind Mower (2003) Housing Assembly Parts Diagram

20" Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title
1

Murray 776155

Housing

$

$

Currently unavailable

2

Engine

$

$

Not available

3

Murray 071434MA

Pulley, Engine

$16.99

$

Usually ships in 2-12 days

0

4

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

6

Murray 671928

Cover, Belt (Black)

$

$

Currently unavailable

7

$4.49

$

In Stock, only 4 left!

0

8

Murray 672605MA

Adjuster, Left Height

$23.99

$

Usually ships in 2-12 days

0

9

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

10

$

$

Not available

11

$3.99

$

Usually ships in 2-12 days

0

12

Murray 672772 Z

Bracket, Idler Support

$

$

Currently unavailable

13

Murray 071778MA

Pulley, Idler

$

$

Not available

14

Murray 071793MA

Bearing

$4.99

$

In Stock, Qty 5

0

15

Murray 028X49MA

Retainer, Push

Note: (Included with Ref. No. 63)

$3.99

$

In Stock, Qty 13

0

16

Murray 1101239E245

Bracket, Left Handle

$

$

Currently unavailable

17

Murray 671934

Bracket, Cable

$

$

Currently unavailable

18

Murray 015X43MA

Nut, Hex
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

19

$3.99

$

Usually ships in 2-12 days

0

20

Murray 671936 Z

Arm, Idler

$

$

Currently unavailable

21

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 12

0

22

Murray 001X81MA

Bolt, Shoulder

$3.49

$

In Stock, only 2 left!

0

23

$3.99

$

Usually ships in 2-12 days

0

24

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

25

$3.99

$

Usually ships in 2-12 days

0

26

$

$

Not available

27

Murray 672603MA

Adjuster, Left Frt. Height

$113.99

$

Usually ships in 2-12 days

0

28

$19.99

$

In Stock, only 2 left!

0

29

Murray 071791MA

Pulley, Axle

$16.99

$

Usually ships in 2-12 days

0

30

$4.99

$

In Stock, only 1 left!

0

31

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

32

Murray 043629MA

Pin, Spring

$5.99

$

In Stock, only 3 left!

0

33

$60.99

$

Usually ships in 2-12 days

0

34

Murray 671948

Cover, Axle (Black)

$

$

Not available

35

Murray 015X68MA

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

36

Murray 15X102MA

Nut, Hex

$3.99

$

Usually ships in 2-12 days

0

37

$3.99

$

Usually ships in 2-12 days

0

38

$3.99

$

Usually ships in 2-12 days

0

39

Murray 043615MA

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

40

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

41

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

42

Murray 071133MA

Wheel, Drive

$50.99

$

In Stock, only 2 left!

0

43

$3.49

$

Usually ships in 2-12 days

0

44

Murray 071780MA

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

45

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

46

$4.49

$

Usually ships in 2-12 days

0

47

$5.49

$

In Stock, only 3 left!

0

$26.99

$

In Stock, only 2 left!

0

49

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

50

Murray 672602MA

Adjuster, Right Frt. Height

$79.99

$

Usually ships in 2-12 days

0

51

Murray 002X16MA

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

52

$3.49

$

Usually ships in 2-12 days

0

53

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

56

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

57

Murray 215X17 Z

Rod, Pivot

Note: (Included with Ref. No. 63)

$

$

Currently unavailable

58

Murray 672610

Door, Rear

$11.99

$

Usually ships in 2-12 days

0

59

Murray 166X44MA

Spring

Note: (Included with Ref. No. 63)

$14.99

$

In Stock, only 1 left!

0

60

Murray 671970MA

Deflector, Rear

$13.99

$

Usually ships in 2-12 days

0

61

Murray 071132MA

Wheel, Rear

$36.99

$

In Stock, only 4 left!

0

63

Murray 1101238E245

Bracket, Right Handle

$6.49

$

Usually ships in 2-12 days

0

64

Murray 672604MA

Adjuster, Right Height

$24.99

$

Usually ships in 2-12 days

0

65

$4.49

$

In Stock, Qty 6

0

66

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, only 3 left!

0

67

Murray 028X64MA

Retainer, Push
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

68

Murray 671926

Bezel

Note: (Included with Ref. No. 70)

$

$

Not available

69

Murray 215X18 Z

Pin, Pivot

Note: (Included with Ref. No. 70)

$

$

Currently unavailable

70

Murray 672158MA

Deflector, Chute

$72.99

$

Usually ships in 2-12 days

0

71

Murray 028X42MA

Cap, Push-On

Note: (Included with Ref. No. 70)

$3.99

$

Usually ships in 2-12 days

0

73

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

74

$4.99

$

In Stock, only 3 left!

0

--

Murray F-030440L

Instruction Book

$

$

Currently unavailable
