20596 - Troy-Bilt Pony III Rear-Tine Tiller, Electric (SN: S101751 - S164132) HANDLE BARS & CONTROL LEVERS Parts Diagram

Pony III Rear-Tine Tiller, Electric

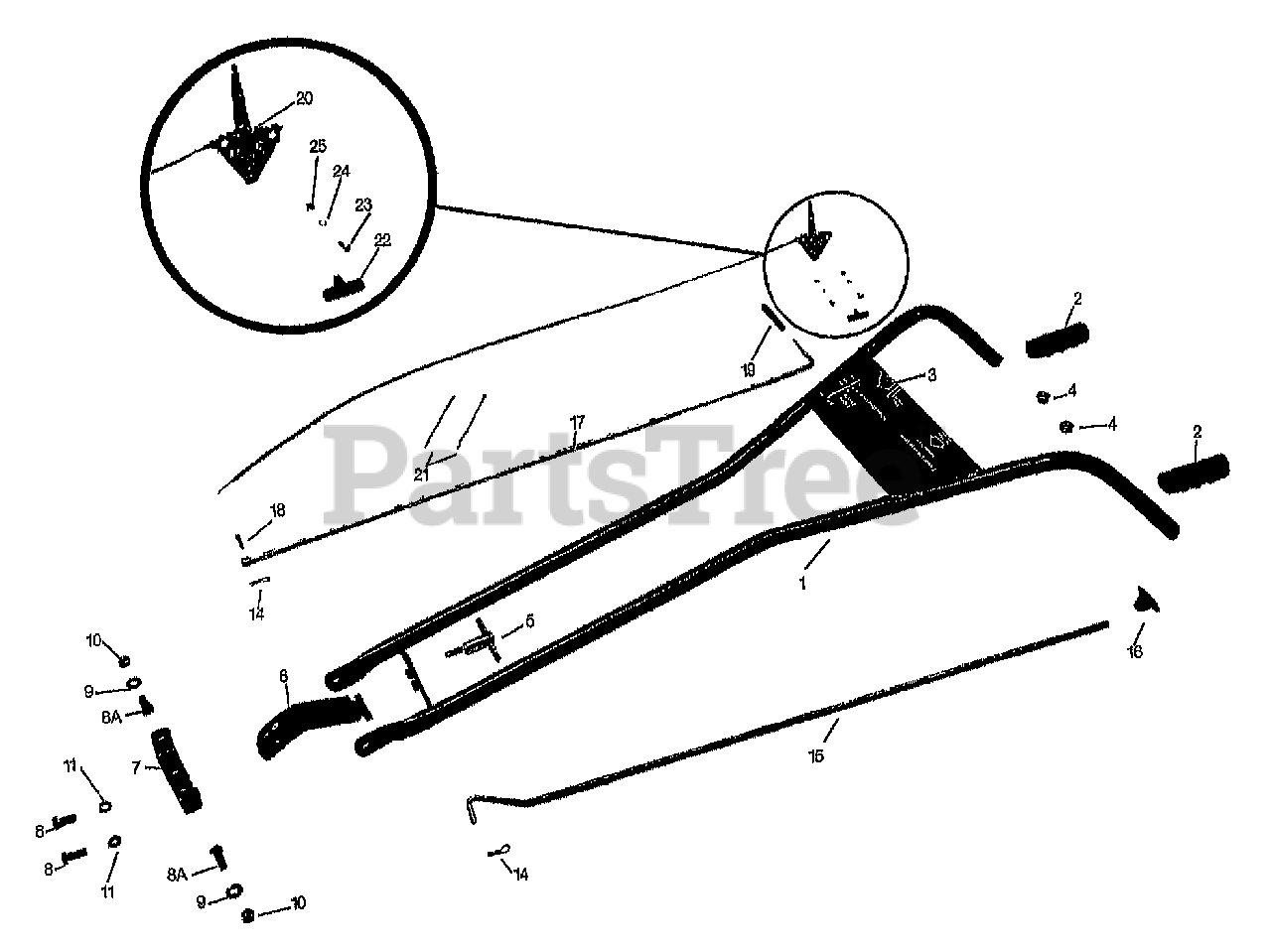

HANDLE BARS & CONTROL LEVERS Parts Diagram

  • Title

1

Troy-Bilt 20438

ASSM-HANDLEBAR (INCL. 2-5)

$

$

Currently unavailable

2

Troy-Bilt 9117

GRIP-HANDLEBAR

$

$

Currently unavailable

3

Troy-Bilt 20399

DECAL-CONTROL PANEL

$

$

Currently unavailable

4

Troy-Bilt 9211

GROMMET-PLASTIC (PART OF OPERATOR CONTROL PANEL)

$

$

Currently unavailable

5

Troy-Bilt 20629

ASSM-CLAMP

$

$

Currently unavailable

6

Troy-Bilt 20539

PLATE-HANDLEBAR ADJUST

$

$

Currently unavailable

7

Troy-Bilt 20349-03

BRKT-HANDLEBAR MTG

$

$

Currently unavailable

8

Troy-Bilt 9710

SCR-HH 3/8-16X1.0 G5 ZP

Note: (FASTENS HANDLEBAR ATTACHMENT BRACKET TO TRANSMISSION TOP COVER)

$

$

Currently unavailable

8A

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

Note: (TO ATTACH HANDLEBARS TO HANDLEBAR ATTACHMENT BRACKET)

$

$

Currently unavailable

9

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

10

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

11

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

14

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 20602

ASSM-DRIVE CNTL ROD (INCL. KNOB #9208)

$

$

Currently unavailable

15

Troy-Bilt 20630

ASSM-DRIVE CNTL ROD (#9208 KNOB NOT INCL.)

$

$

Currently unavailable

16

Troy-Bilt 9208

KNOB-DRIVE CNTRL ROD

$

$

Currently unavailable

17

Troy-Bilt 20343

ROD-CONTROL

$

$

Currently unavailable

18

MTD 9336

PIN-CLEVIS .183X1.0 ZP

$

$

Not available

19

Troy-Bilt 9198

GRIP-CONTROL ROD

$

$

Currently unavailable

20

Troy-Bilt 9191

CABLE-THROTTLE (INCL. #22 ONLY)

$

$

Currently unavailable

21

Troy-Bilt 9202

TIE-RED (TO SECURE THROTTLE CABLE TO HANDLEBARS)
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 9212

KNOB-THROTTLE CABLE
(Superseded to 731-0108)

$9.49

$

In Stock, only 3 left!

0

23

Troy-Bilt 9722

SCR-RH M10-32X.5 MACH

$

$

Currently unavailable

24

Troy-Bilt 9909

WASHER-LK M10

$

$

Currently unavailable

25

Troy-Bilt 9809

NUT-HH M10-32X.125

$

$

Currently unavailable
