20595 - Troy-Bilt Pony III Rear-Tine Tiller (SN: S101751 - S164132) TRANSMISSION HOUSING & SEALS/GASKET Parts Diagram

Pony III Rear-Tine Tiller

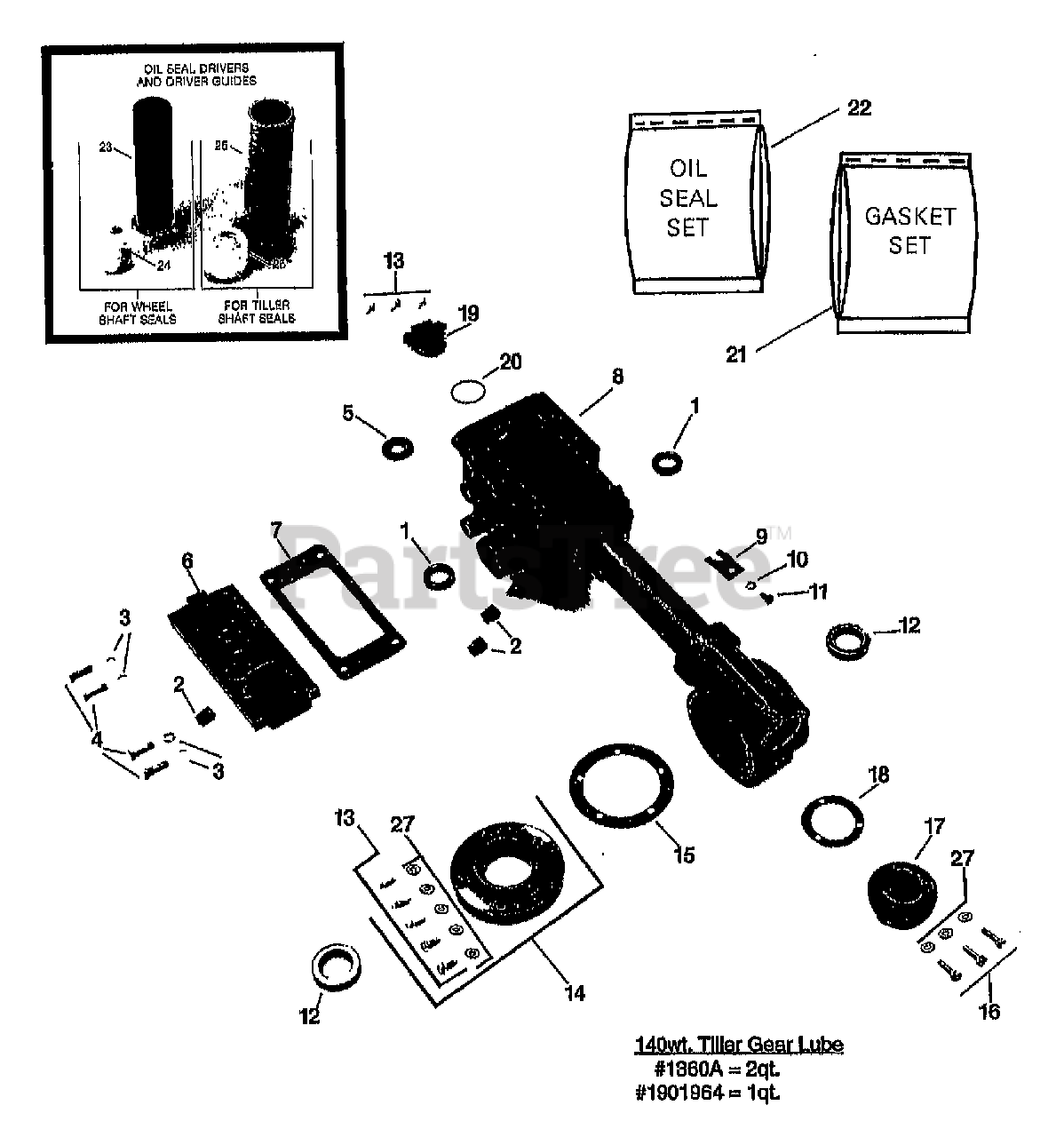

TRANSMISSION HOUSING & SEALS/GASKET Parts Diagram

  • Title
1

Troy-Bilt 9621

SEAL-OIL WHEELSHAFT
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9727

PLUG-PIPE 3/8 NPT
(Superseded to 737-04202)

$6.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

4

Troy-Bilt 9574

SCR-HH 5/16-18X1.25 G5

$

$

Currently unavailable

5

Troy-Bilt 9614

SEAL-OIL PINION SHAFT

$

$

Currently unavailable

6

Troy-Bilt 20512

COVER-TRANS MACH

$

$

Currently unavailable

7

Troy-Bilt 20537

GASKET-TRANS HSG

$

$

Currently unavailable

8

Troy-Bilt 20593

ASSM-TRANS PONY 3-A UNIT (INCL. ONE #9402 REAR BEARING RACE)

$

$

Currently unavailable

9

Troy-Bilt 20325

PLATE-FRICTION

$

$

Currently unavailable

10

Troy-Bilt 9910

WASHER-LK .25

$

$

Currently unavailable

11

Troy-Bilt 9743

SCR-HH 1/4-20X.5 GR5 YEL

$

$

Currently unavailable

12

Troy-Bilt 9618

SEAL-OIL TILLERSHAFT

$

$

Currently unavailable

13

Troy-Bilt 9780

SCR-HH 1/4-20X.625

$

$

Currently unavailable

14

Troy-Bilt 1872

COVER-W/SCRS(TLR) (INCL. FIVE #9780)

$

$

Currently unavailable

15

Troy-Bilt 1129-1

GASKET-TILLER COVER (FITS ALL COVERS)
(Superseded to GW-1129-1099)

$8.99

$

In Stock, Qty 17

0

16

Troy-Bilt 9773

SCR-HFLK 1/4-20X.875

$

$

Currently unavailable

17

Troy-Bilt 1115

CAP-REAR #1115

$

$

Currently unavailable

18

Troy-Bilt 1124-2

GASKET-BRG COVER
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 19

0

19

Troy-Bilt 20511

COVER-FRONT BRG MACH

$

$

Currently unavailable

20

Troy-Bilt 9615

RING-O 1.625 ID

$

$

Currently unavailable

21

Troy-Bilt 1929

TRANS GASKET SET-PONY (UNIVERSAL)

$

$

Currently unavailable

22

Troy-Bilt 1930

SEAL-OIL (PONY)

$

$

Currently unavailable

23

Troy-Bilt 4921-1

OIL SEAL DRIVER-PLASTIC - (USE WITH PART #4921-2)

$

$

Currently unavailable

24

Troy-Bilt 4921-2

SEAL-DRIVER PILOT (USE WITH PART #4921-1)

$

$

Currently unavailable

25

Troy-Bilt 1961-1

H&P SEAL DRIVER (USE WITH PART #1961-2)

$

$

Currently unavailable

26

Troy-Bilt 1961-2

PILOT-SEAL DRIVER (USE WITH PART #1961-1)

$

$

Currently unavailable

27

0

WASHER - NYLON, NON-REUSEABLE

$

$

Not available

Troy-Bilt 10148

OBS-KIT NYLON WASHER (INCL. EIGHT #27)

$

$

Currently unavailable

Troy-Bilt 1360A

OIL GEAR LUBE 2 QT 140WT

$

$

Currently unavailable

Troy-Bilt 1901964

OIL GEAR LUBE 1 QT 140WT

$

$

Currently unavailable
