20588 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

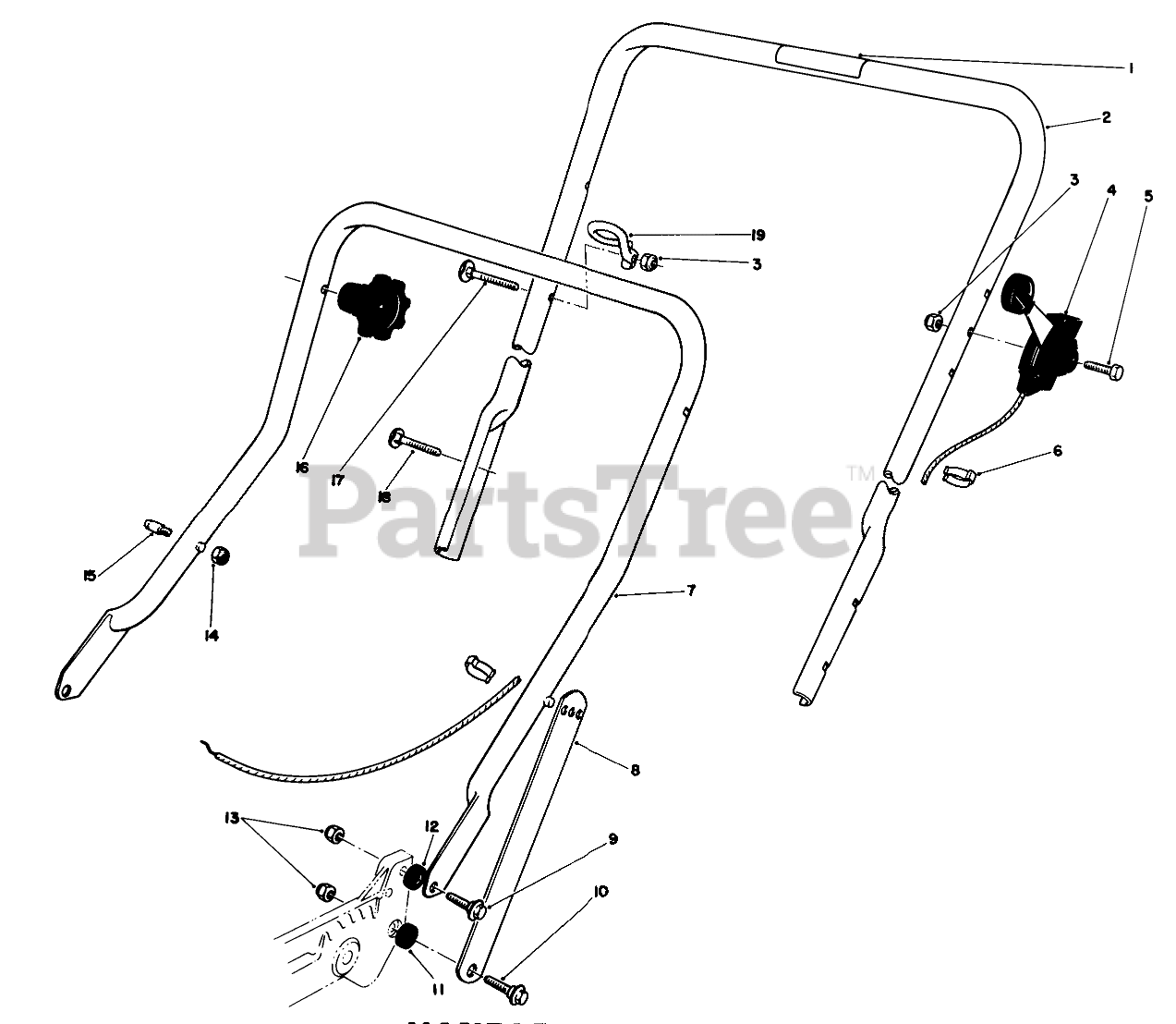

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 52-7510

Decal-Danger

$

$

Not available

2

Toro 12-4419

Handle-Upper (Incl. Ref. #1) (Used on Units With Serial No. 7000001-7004102)
(Superseded to 49-4231)

$

$

Not available

2

Toro 49-4234

Handle-Upper (Incl. Ref. #1) (Used on Units With Serial No. 7004103 & Up)

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

4

Toro 46-6000

SERVICE THROTTLE CONTRO

$50.99

$

Usually ships in 3-6 days

0

5

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 218-465

BOWDEN CLIP

$

$

Not available

7

Toro 43-1361

LOWER HANDLE ASM

$

$

Not available

8

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

9

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

10

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

12

Toro 55-8060

SPACER

$0.99

$

In Stock, only 4 left!

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3296-47

NUT-LOCK, NI

Note: Service Replacement Part

$3.99

$

In Stock, Qty 8

0

15

Toro 49-2750

HANDLE PIN

Note: Service Replacement Part

$36.99

$

Usually ships in 3-6 days

0

16

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

17

Toro 46-6433

HANDLE SCREW

$14.99

$

Usually ships in 3-6 days

0

18

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, only 2 left!

0

19

Toro 46-8080

Guide
(Superseded to 86-9671)

$4.49

$

In Stock, only 4 left!

0
