20588 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

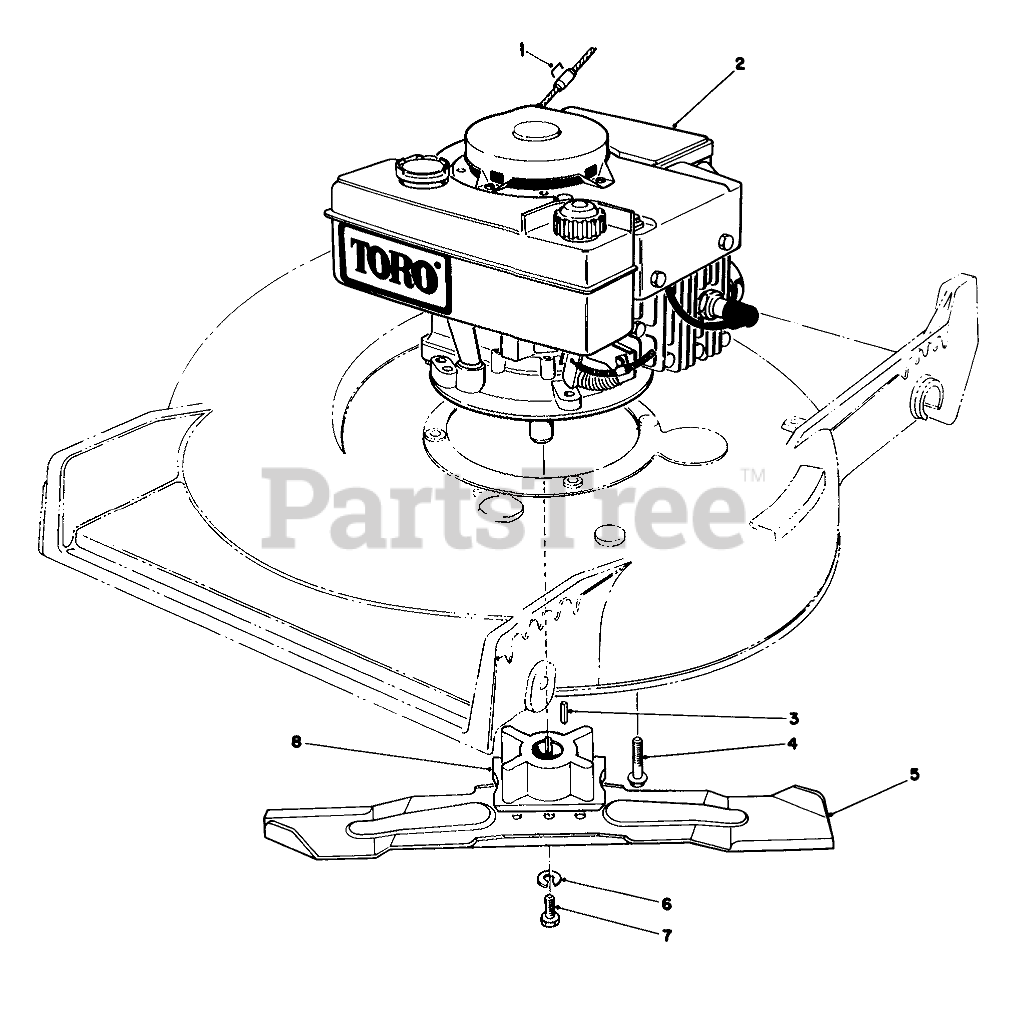

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Staple

Note: Obtain Locally

$

$

Not available

2

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

3

Toro 7-0036

KEY-SQUARE

$

$

Not available

4

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

5

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0

6

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

7

Toro 26-0670

SCREW-BLADE

$

$

Not available

8

Toro 46-3490

BLADE RETAINER(DEEP)

$109.99

$

In Stock, only 1 left!

0

8

Toro 46-7810

Retainer Blade
(Superseded to 62-7540)

$98.99

$

In Stock, only 1 left!

0
