20588 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

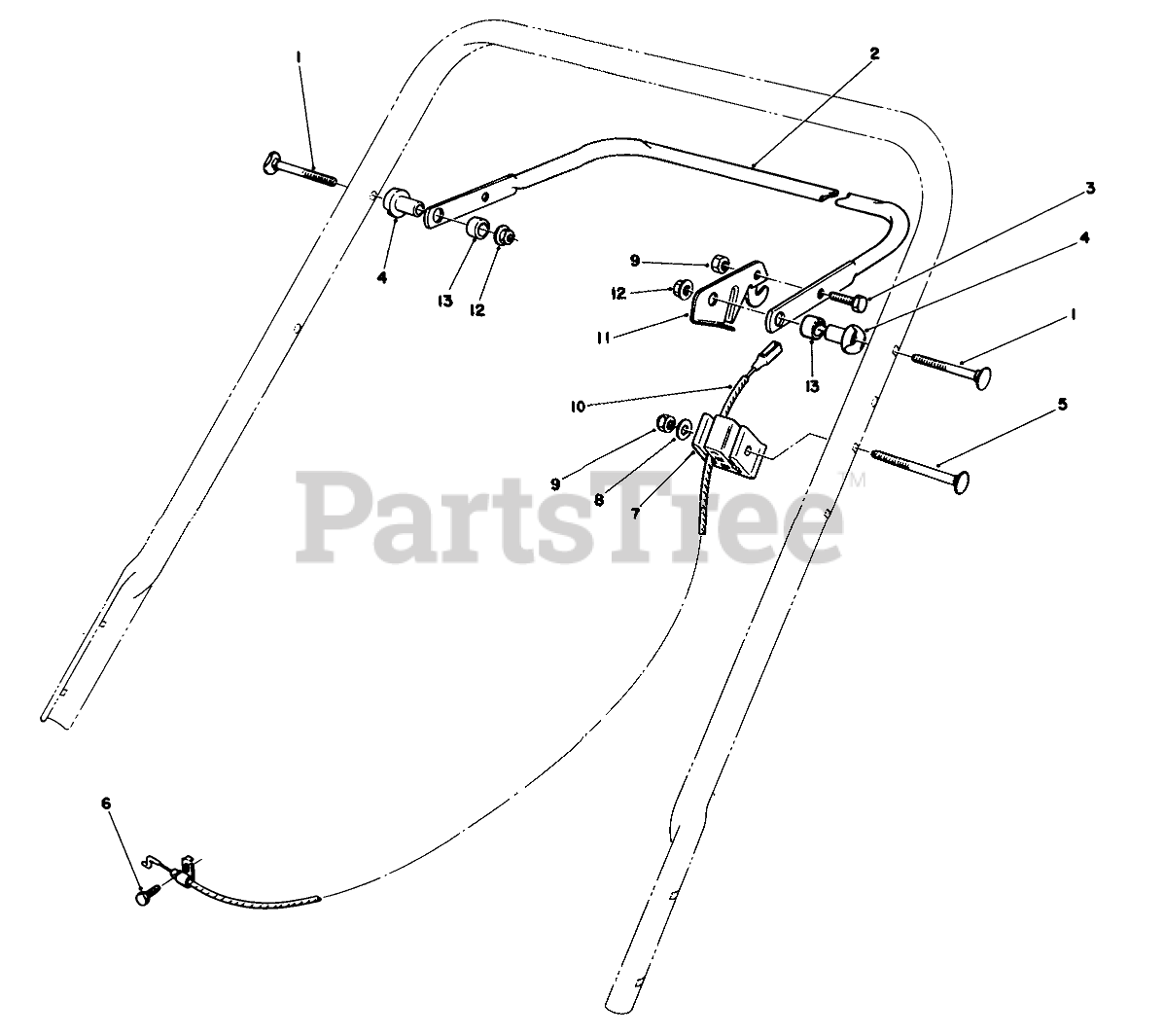

CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 11

0

2

Toro 49-4220

CONTROL BAR PROMO

$

$

Not available

2

Toro 62-3810

Bar-Control
(Superseded to 71-3080-05)

$38.99

$

Usually ships in 3-6 days

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

5

Toro 46-6434

HANDLE SCREW

$4.49

$

Usually ships in 3-6 days

0

6

Toro 2210-250

SCREW-HH

$

$

Not available

7

Toro 46-6980

SUPPORT-CABLE

$15.99

$

Usually ships in 3-6 days

0

8

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 46-8011

BRAKE CABLE

$91.99

$

Usually ships in 3-6 days

0

11

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

12

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

13

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0
