20586 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

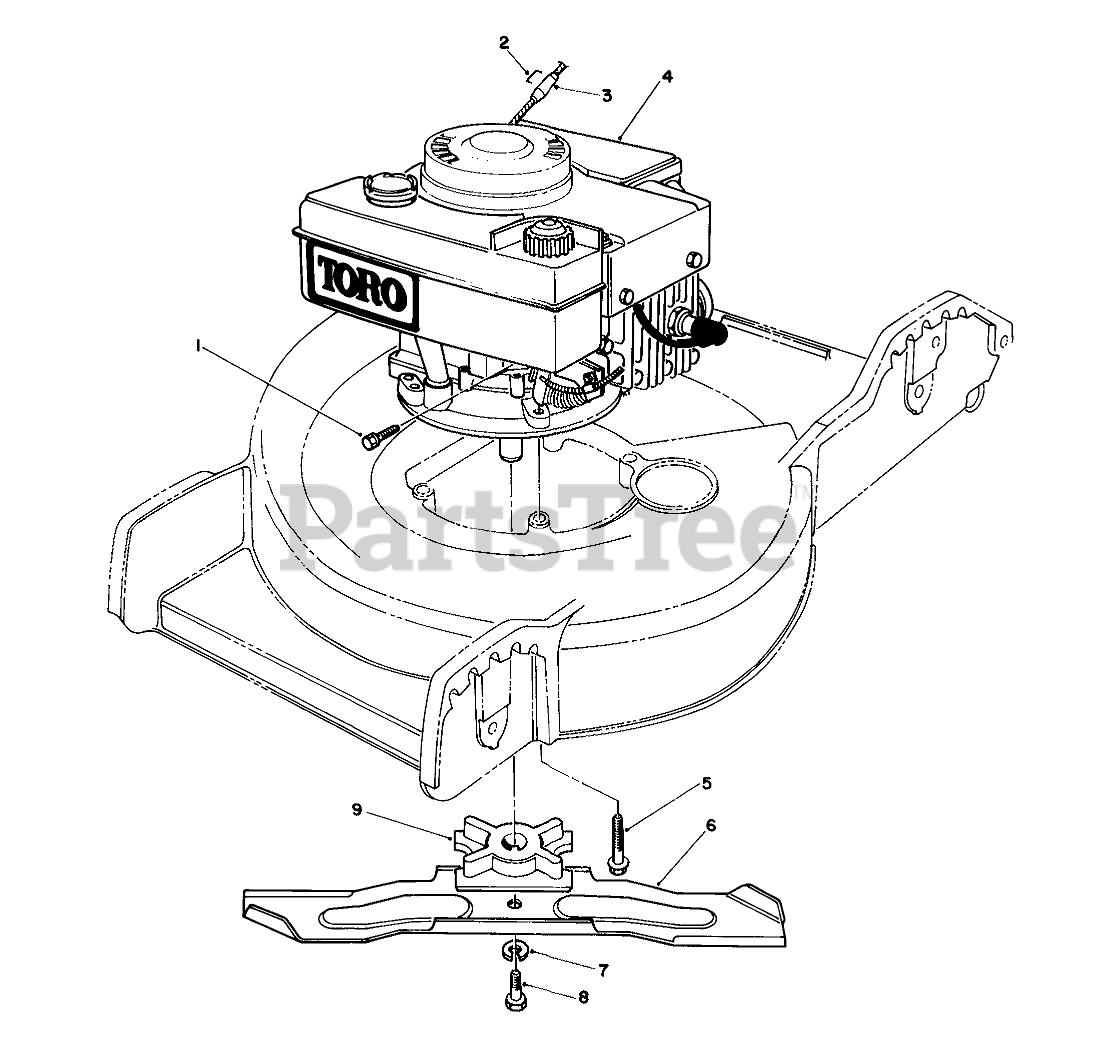

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 2210-250

SCREW-HH

$

$

Not available

2

Staple

Note: Obtain Locally

$

$

Not available

3

Stop-Rope

$

$

Not available

4

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

5

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

6

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

Usually ships in 3-6 days

0

7

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

8

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

9

Toro 49-7900

BLADE RETAINER

$73.99

$

In Stock, only 2 left!

0
