20586 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

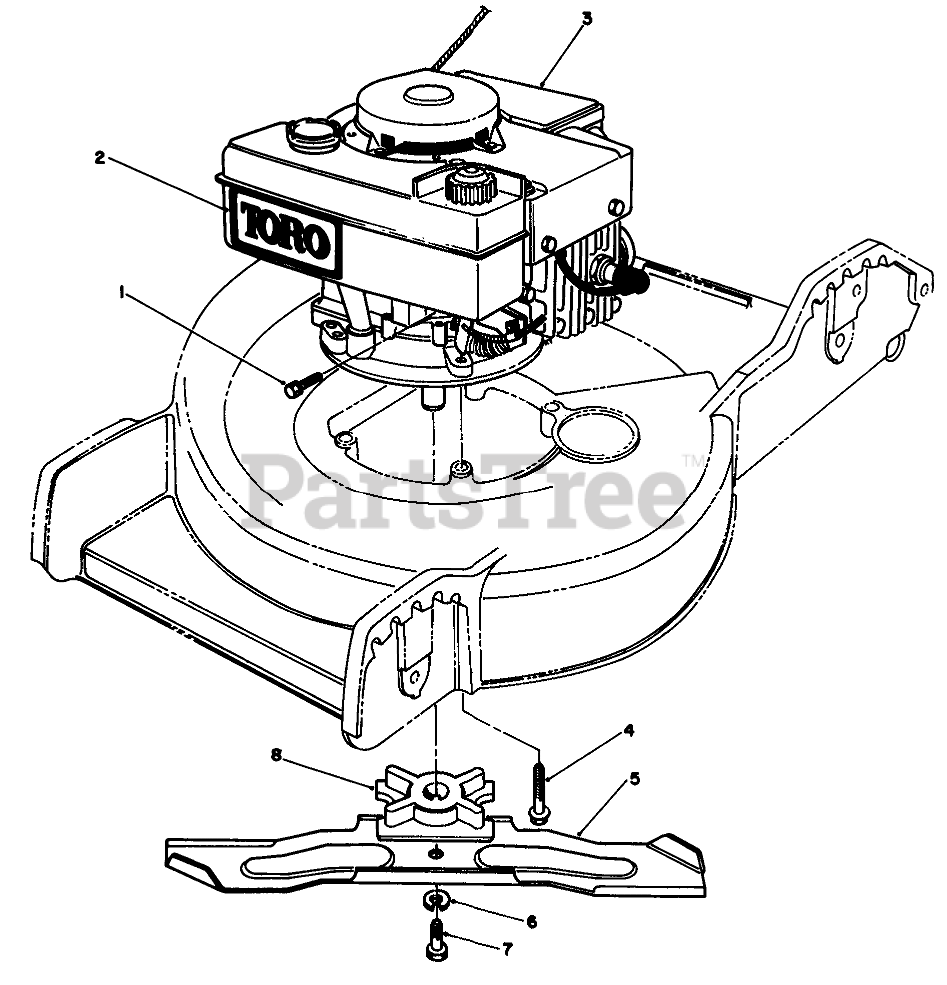

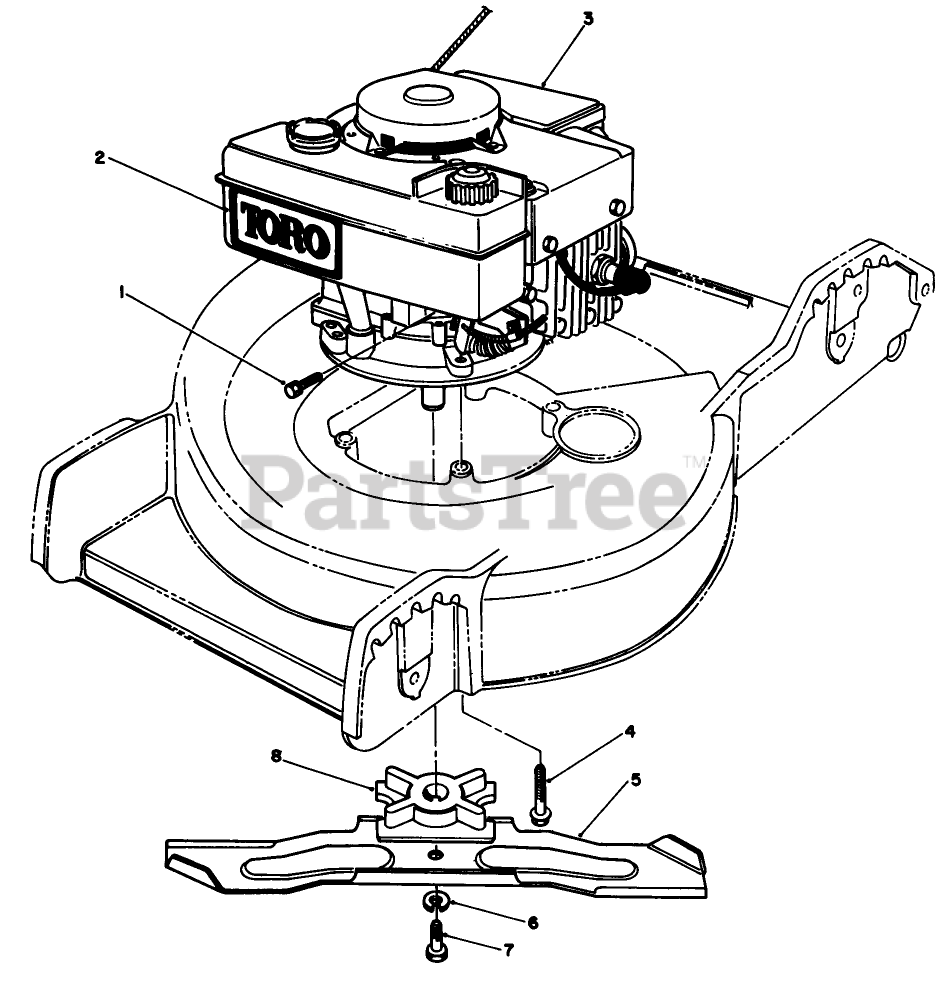

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 2210-250

SCREW-HH

$

$

Not available

2

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

3

Engine-Briggs and Stratton 084232-0121-e1

$

$

Not available

4

Toro 11-0581

3/8-16 X 2 CAPSCREW

$4.49

$

Usually ships in 3-6 days

0

5

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

Usually ships in 3-6 days

0

6

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

7

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

8

Toro 49-7890

BLADE RETAINER

$

$

Not available
