20584 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) ENGINE ASSEMBLY (MODEL NO. 47PF5)(USED ON UNITS WITH SERIAL NO. 7000101-7002011) Parts Diagram

Walk-Behind Mower

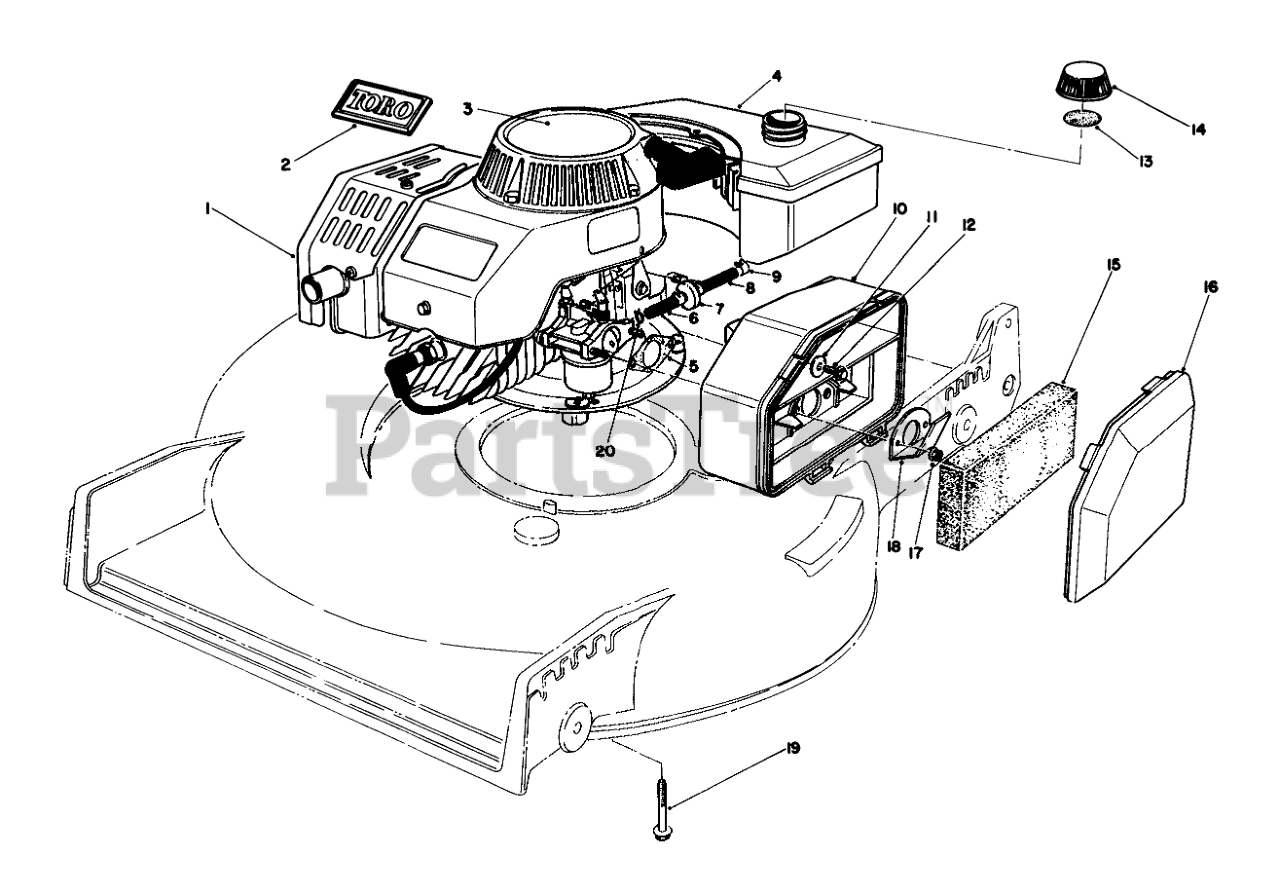

ENGINE ASSEMBLY (MODEL NO. 47PF5)(USED ON UNITS WITH SERIAL NO. 7000101-7002011) Parts Diagram

  • Title

1

Toro 51-0401

Engine
(Superseded to 98-2049)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

Usually ships in 3-6 days

0

3

Toro 57-9870

DECAL

$

$

Not available

4

Toro 81-0041

Gas Tank Assembly
(Superseded to 99-5264)

$

$

Not available

5

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

6

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

7

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, Qty 7

0

8

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

9

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

10

Toro 81-0110

AIR CLEANER

$

$

Not available

11

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 51-2690

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

13

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

14

Toro 42-0681

Gas Cap Assembly (Incl. Ref. #13)

$42.99

$

Usually ships in 3-6 days

0

15

Toro 81-0100

FILTER

$9.49

$

In Stock, only 1 left!

0

16

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

17

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

19

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

20

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0
