20584 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

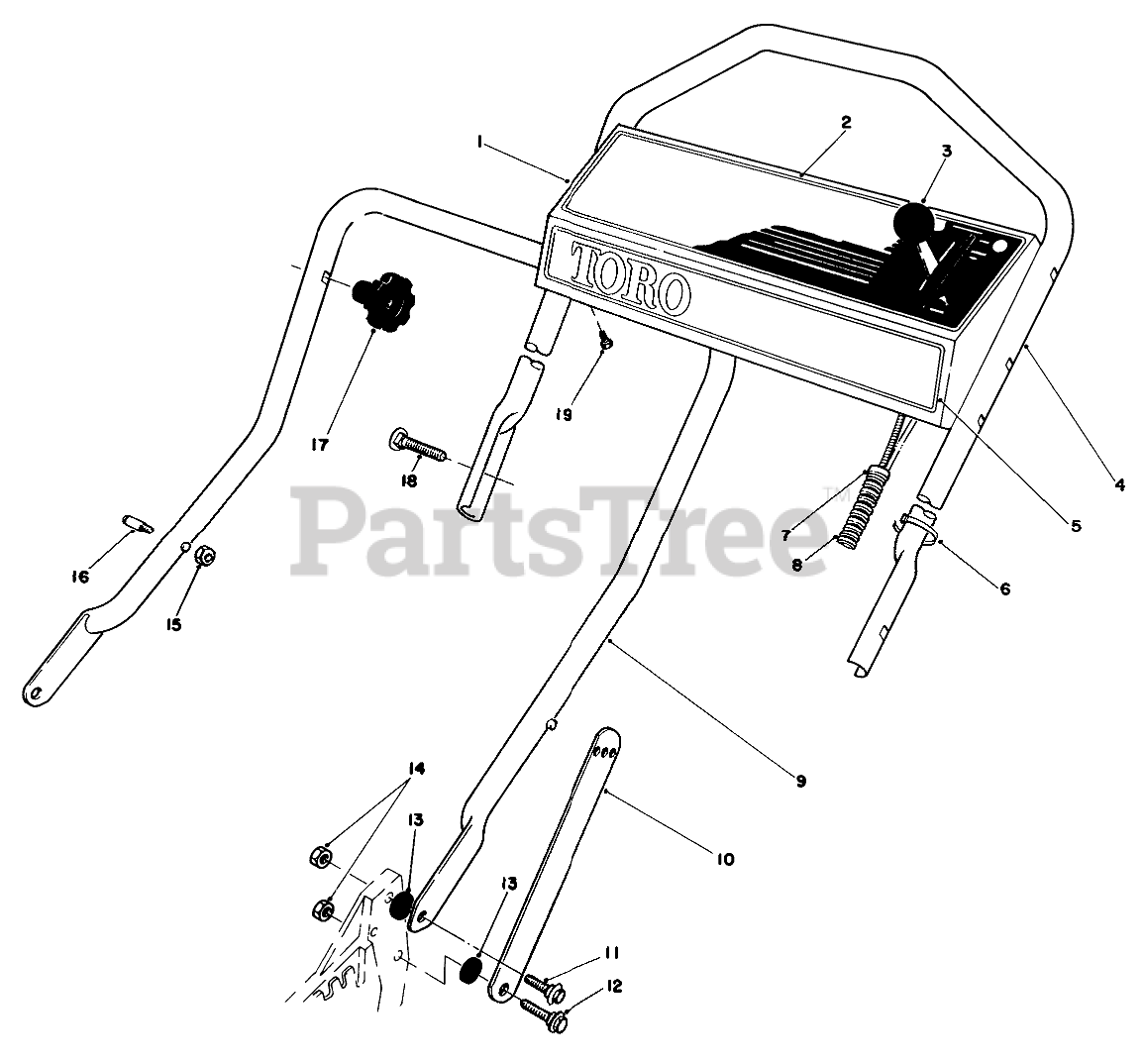

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-6779

Panel-Control (Incl. Ref. #2)

$

$

Not available

2

Toro 49-3070

OBS INSTRUCTION DECAL

$

$

Not available

3

Toro 49-4183

THROTTLE CONT-SERVICE

$77.99

$

Usually ships in 3-6 days

0

4

Toro 46-5411

Handle-Upper
(Superseded to 84-8332)

$

$

Not available

5

Toro 46-7380

Decal-Toro
(Superseded to 66-1770)

$

$

Not available

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

7

Toro 2412-50

FITTING-RING

$9.99

$

Usually ships in 3-6 days

0

8

Toro 46-6442

CONTROL CABLE COVER

$

$

Not available

9

Toro 43-1360

Handle-Lower
(Superseded to 43-1361)

$

$

Not available

10

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

11

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

12

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

13

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

16

Toro 49-2750

HANDLE PIN

$36.99

$

Usually ships in 3-6 days

0

17

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

18

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 7

0

19

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
