20584 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1985) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

Walk-Behind Mower

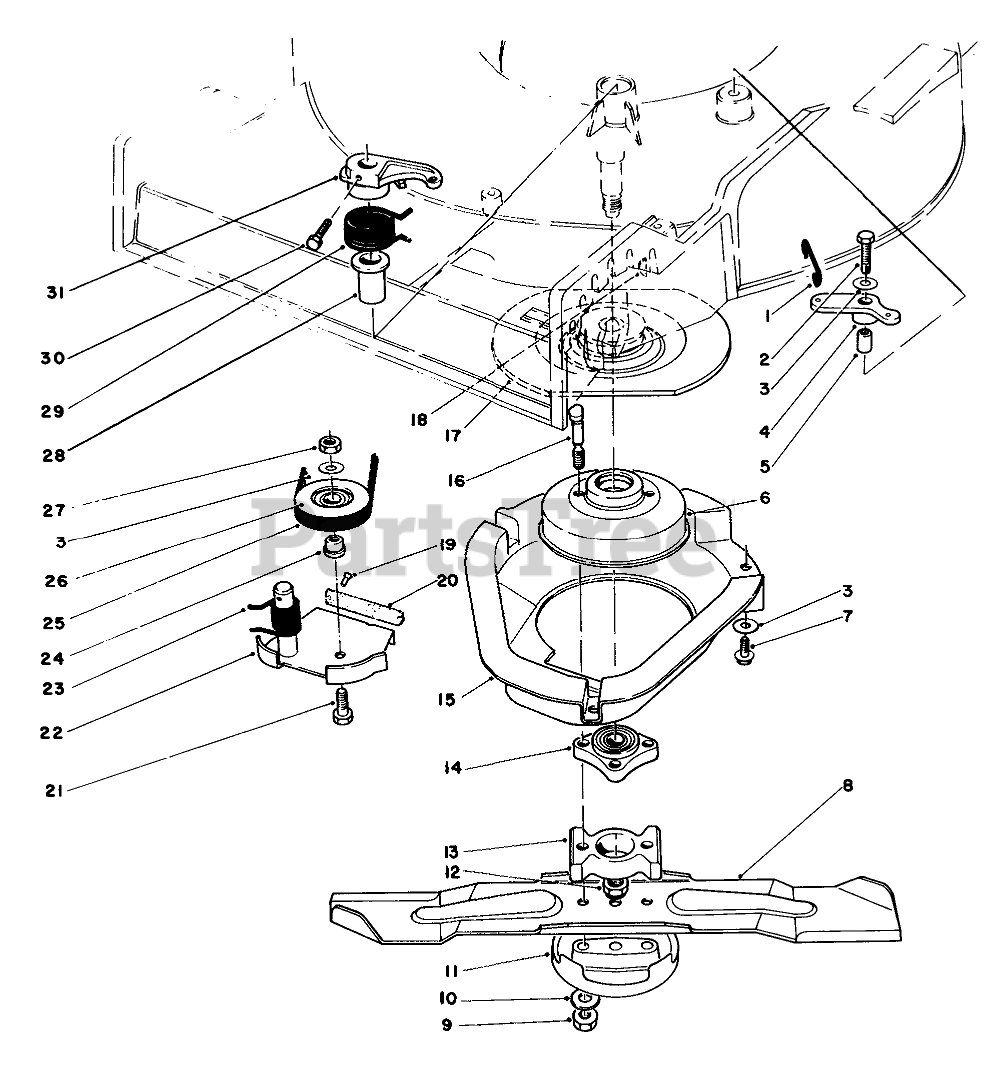

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 49-2810

LINK-CONTROL

$2.99

$

In Stock, only 1 left!

0

2

Toro 32104-107

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 49-7960

BELLCRANK

$11.99

$

In Stock, only 1 left!

0

5

Toro 49-7950

SLEEVE-BELLCRANK

$5.49

$

Usually ships in 3-6 days

0

6

Toro 42-1020

Brake Drum
(Superseded to 94-9431)

$46.99

$

In Stock, Qty 11

0

7

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

8

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

Usually ships in 3-6 days

0

9

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

11

Toro 42-0910

Anti Scalp Cup
(Superseded to 80-2770)

$16.99

$

Usually ships in 3-6 days

0

12

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

13

Toro 42-6760

Spacer Blade
(Superseded to 107-4275)

$23.99

$

Usually ships in 3-6 days

0

14

Toro 42-6890

HUB ASM

$95.99

$

Usually ships in 3-6 days

0

15

Toro 46-5691

SHIELD BBC

$

$

Not available

16

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 14

0

17

Toro 43-7720

Flywheel

$

$

Not available

18

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

19

Toro 3295-23

.185 DIA X .375 RT +

$11.99

$

Usually ships in 3-6 days

0

20

Toro 42-0890

Paid
(Superseded to 11-1359)

$

$

Not available

21

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

22

Toro 49-7920

Brake Plate (Incl. Ref. #19 & 20)
(Superseded to 94-1601)

$

$

Not available

23

Toro 46-5670

SPRING-TORSION

$11.99

$

Usually ships in 3-6 days

0

24

Toro 46-5630

HUB-PULLEY, IDLER

$19.99

$

In Stock, only 1 left!

0

25

Toro 42-0881

V-BELT

$33.99

$

Usually ships in 3-6 days

0

26

Toro 46-5650

PULLEY-IDLER
(Superseded to 117-5299)

$42.99

$

In Stock, only 2 left!

0

27

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

28

Toro 46-6680

BUSHING PM

$27.99

$

In Stock, only 1 left!

0

29

Toro 49-7970

SPRING-TORSION

$14.99

$

Usually ships in 3-6 days

0

30

Toro 32104-96

SCREW-HH

$6.49

$

In Stock, Qty 5

0

31

Toro 49-2820

LEVER

$11.99

$

In Stock, only 1 left!

0
