20582 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

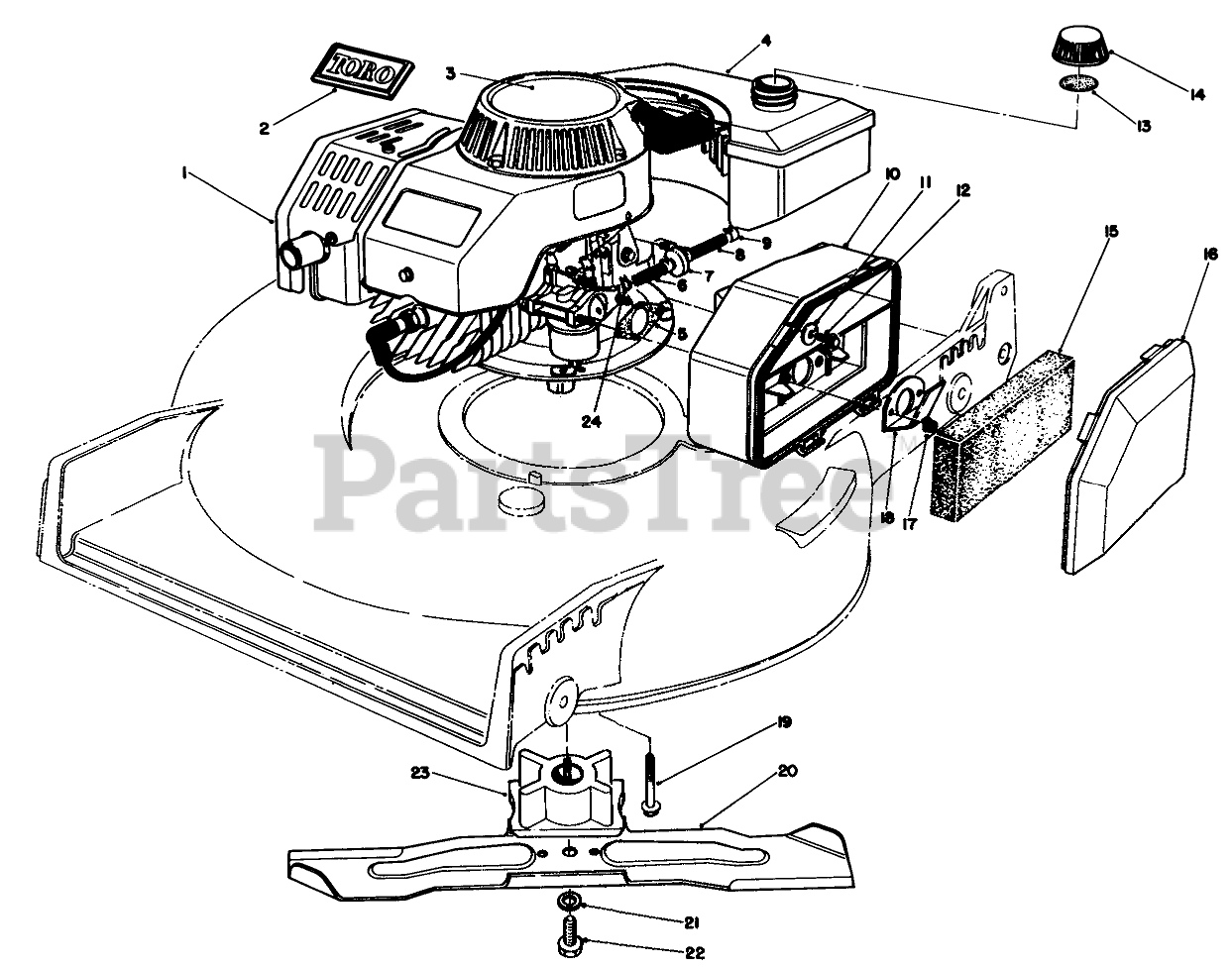

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 59257

Engine
(Superseded to 12-8099)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$2.49

$

Usually ships in 3-6 days

0

3

Toro 57-3110

DECAL- 2 CYC RECOIL

$

$

Not available

4

Toro 81-0041

Gas Tank Assembly
(Superseded to 99-5264)

$

$

Not available

5

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

6

Toro 51-3215

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

7

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

8

Toro 51-3216

HOSE-FUEL

$5.49

$

In Stock, only 4 left!

0

9

Toro 2412-95

CLAMP-FUEL LINE

$1.49

$

In Stock, Qty 8

0

10

Toro 81-0110

AIR CLEANER

$

$

Not available

11

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

12

Toro 51-2690

SCREW-HH

$2.49

$

In Stock, only 4 left!

0

13

Toro 20-4620

GAS CAP GASKET

$10.99

$

In Stock, Qty 6

0

14

Toro 42-0681

Gas Cap Assy. (Incl. Ref. #13)

$43.99

$

Usually ships in 3-6 days

0

15

Toro 81-0100

FILTER

$9.49

$

In Stock, only 1 left!

0

16

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

17

Toro 49-7810

NUT-LOCK
(Superseded to 33023-00)

$0.99

$

Usually ships in 3-6 days

0

18

Toro 81-0140

SPIT BACK DEFLECTOR

$

$

Not available

19

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

20

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

21

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

22

Toro 26-0670

SCREW-BLADE

$

$

Not available

23

Toro 46-7810

Retainer Blade
(Superseded to 62-7540)

$98.99

$

In Stock, only 1 left!

0

24

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

Toro 56-2530

Fuel Filter Kit (Includes Ref. #6, 7, 8, 9 & 24)

Note: Not illustrated

$

$

Not available
