20581 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

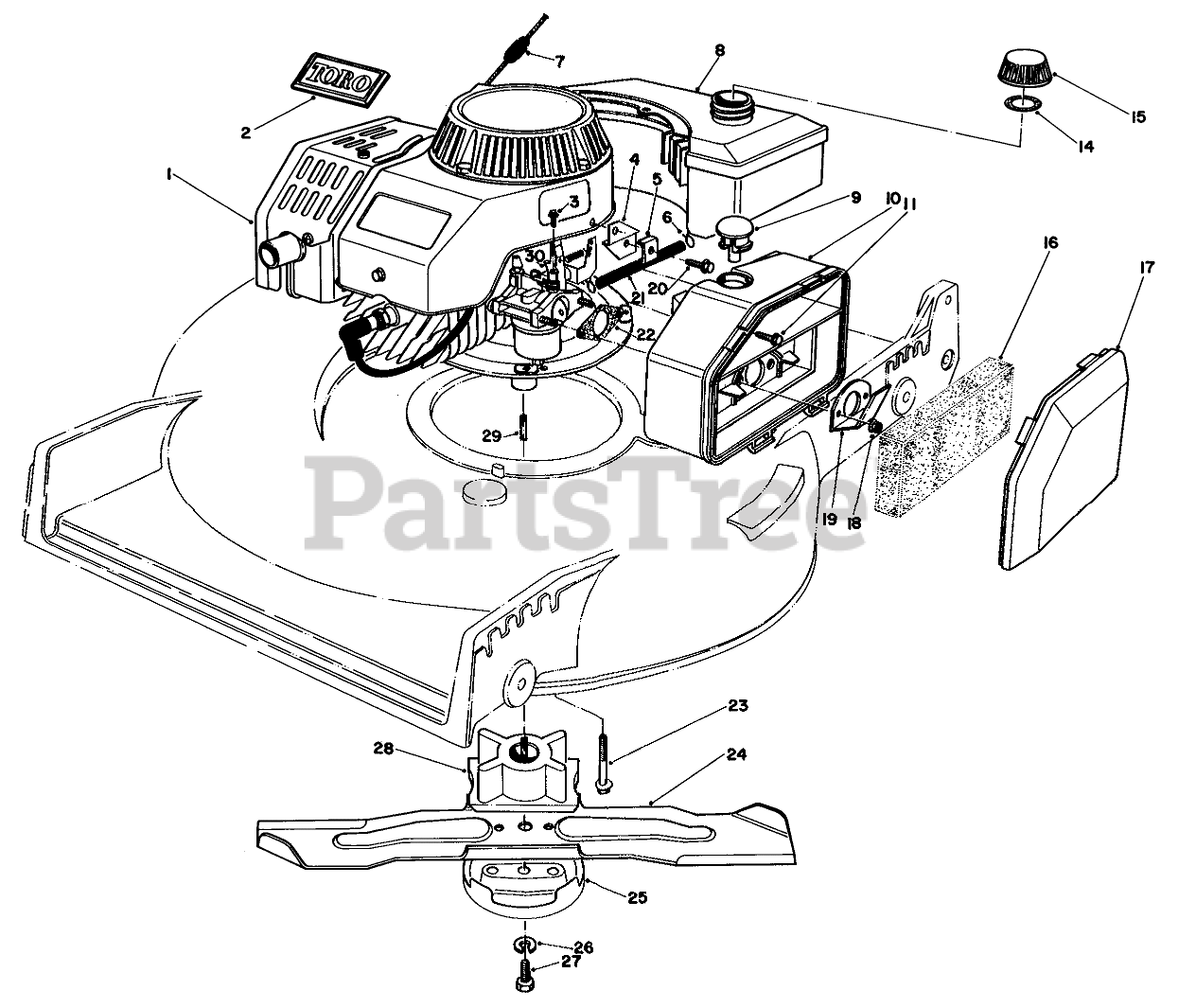

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 11-5169

Engine (Incl. Ref. #2)

$

$

Not available

2

Toro 46-8290

TORO LOGO PLT
(Superseded to 98-3206)

$1.99

$

Usually ships in 3-6 days

0

3

Toro 32144-60

TAPPING SCREW

$

$

Not available

4

Toro 46-7860

Carrier-Cable

$

$

Not available

5

Toro 29-9550

CLAMP-CABLE

$

$

Not available

6

Toro 2412-80

CLAMP-HOSE

$5.49

$

In Stock, only 1 left!

0

7

Toro 47-2480

STOP-ROPE

$

$

Not available

8

Toro 81-0040

Gas Tank Assembly
(Superseded to 99-5263)

$

$

Not available

9

Toro 81-0080

Plug-Button

$

$

Not available

10

Toro 81-0110

AIR CLEANER

$

$

Not available

11

Toro 46-0071

Screw-Hex Head

$

$

Not available

14

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

15

Toro 42-0681

Gas Cap Assembly (Incl. Ref. #14)

$42.99

$

Usually ships in 3-6 days

0

16

Toro 81-0100

FILTER

$9.49

$

In Stock, only 1 left!

0

17

Toro 81-0120

AIR CLEANER COVER

$

$

Not available

18

Toro 46-0400

M6 X 1 LOCKNUT

$

$

Not available

19

Toro 81-0140

SPIT BACK DEFLECTOR

$16.99

$

Usually ships in 3-6 days

0

20

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

21

Toro 81-0150

FUEL LINE

$

$

Not available

22

Toro 81-0090

GASKET-AIR CLEANER

$7.99

$

In Stock, only 3 left!

0

23

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

24

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

25

Toro 42-0910

Anti Scalp Cup
(Superseded to 80-2770)

$15.99

$

In Stock, only 1 left!

0

26

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

27

Toro 26-0670

SCREW-BLADE

$

$

Not available

28

Toro 46-7810

Retainer Blade
(Superseded to 62-7540)

$83.99

$

In Stock, only 1 left!

0

29

Toro 7-0036

KEY-SQUARE

$

$

Not available

30

Toro 81-0190

CHOKE LEVER

$

$

Not available
