20576 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) TRACTION CONTROL ASSEMBLY Parts Diagram

Walk-Behind Mower

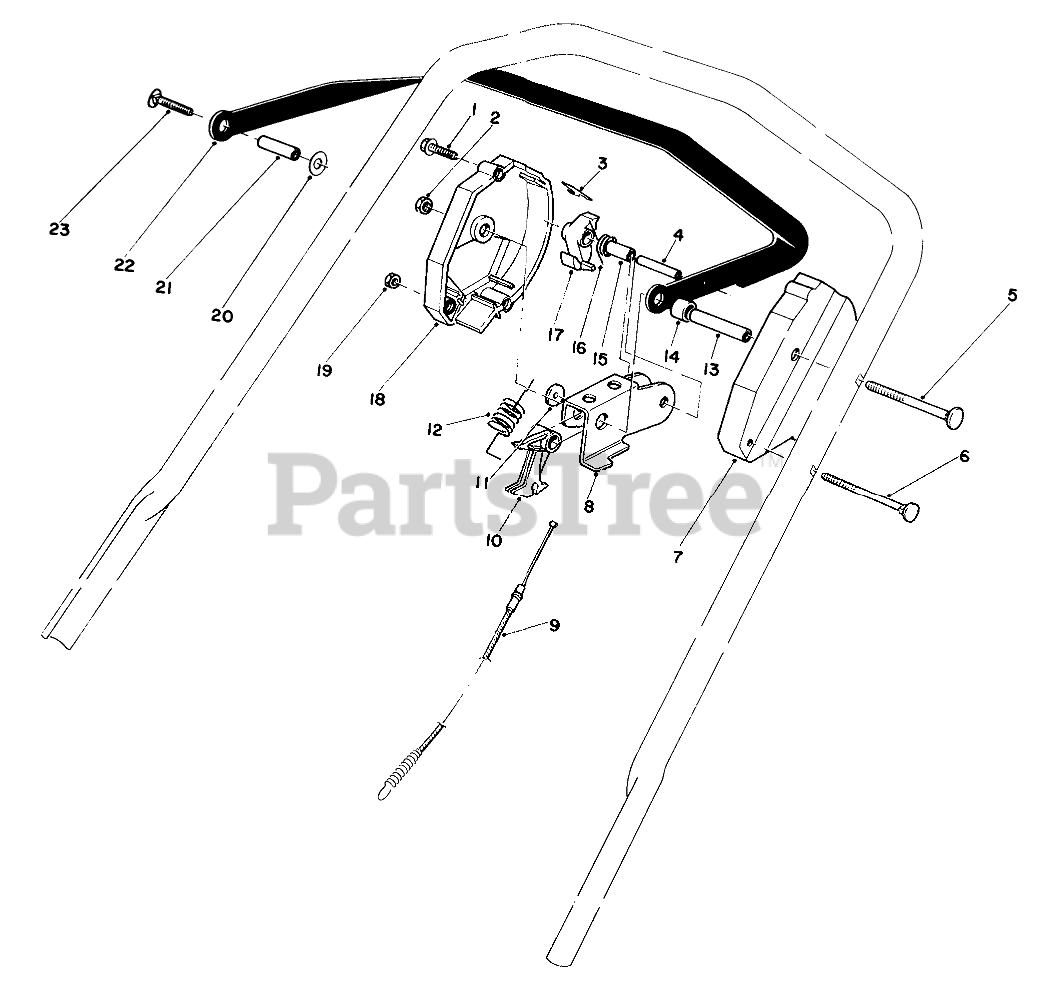

TRACTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

2

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

3

Toro 46-5570

LEAF SPRING

$

$

Not available

4

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

5

Toro 17-9422

5/16-18 X 3 HNDLE SCREW

$

$

Not available

6

Toro 46-6431

HANDLE SCREW

$

$

Not available

7

Toro 46-5450

Housing Control R.H.
(Superseded to 12-3429)

$

$

Not available

8

Toro 46-5490

Rocker
(Superseded to 62-3710)

$

$

Not available

9

Toro 46-5470

Cable-Clutch
(Superseded to 83-6600)

$

$

Not available

10

Toro 46-5540

LEVER-CABLE

$19.99

$

In Stock, only 3 left!

0

11

Toro 46-5600

PLASTIC WASHER

$3.99

$

Usually ships in 3-6 days

0

12

Toro 46-5500

Spring-Extension
(Superseded to 65-5990)

$

$

Not available

13

Toro 46-5590

TUBING-SPACER

$19.99

$

Usually ships in 3-6 days

0

14

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

15

Toro 46-5550

SPACER

$19.99

$

Usually ships in 3-6 days

0

16

Toro 46-5510

SPRING-TORSION

$6.49

$

Usually ships in 3-6 days

0

17

Toro 46-5530

HOOK-CONTROL

$

$

Not available

18

Toro 46-5460

HOUSING-CONTROL, LH

$

$

Not available

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 46-5580

Spacer

$

$

Not available

22

Toro 46-5560

Bar-Control
(Superseded to 52-7430-03)

$

$

Not available

23

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0
