20576 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

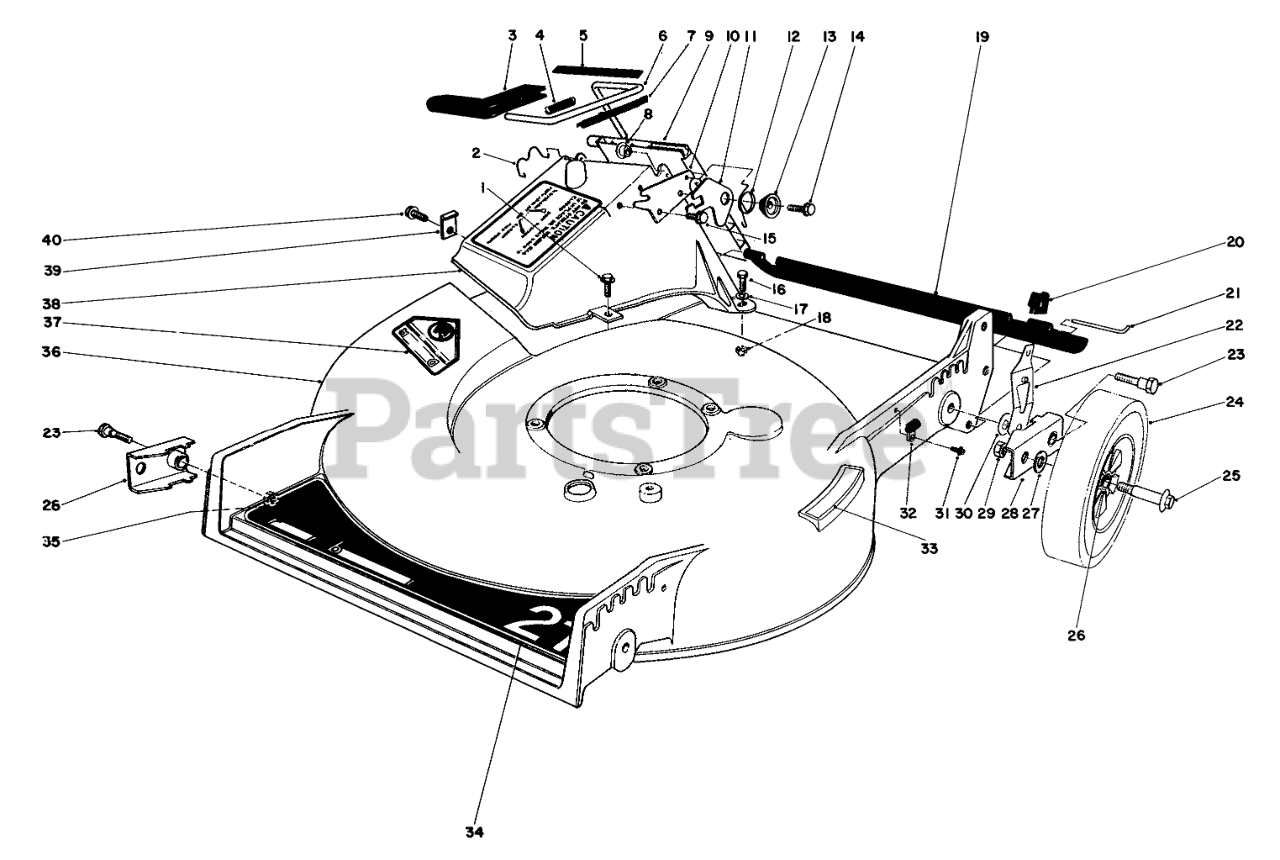

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 11-9760

Screw
(Superseded to 49-2040)

$2.49

$

In Stock, Qty 20+

0

2

Toro 47-5840

DOOR RET SPRING

$

$

Not available

3

Toro 46-3520

Handle-Door

$

$

Not available

4

Toro 46-7060

Spring

$

$

Not available

5

Toro 46-6820

DOOR COVER

$

$

Not available

6

Toro 46-3530

DOOR ROD +

$

$

Not available

7

Toro 46-7050

DOOR HANDLE COVER

$5.99

$

Usually ships in 3-6 days

0

8

Toro 23-0880

BUSHING-NYLON

$

$

Not available

9

Toro 46-3510

Door Discharge
(Superseded to 77-0200)

$

$

Not available

10

Toro 23-1040

DOOR LATCH PLATE

$

$

Not available

11

Toro 42-4010

SAFETY LATCH

$

$

Not available

12

Toro 33-4860

TORSION SPRING

$68.99

$

Usually ships in 3-6 days

0

13

Toro 43-4840

DOOR SPACER

$8.49

$

Usually ships in 3-6 days

0

14

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

15

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

16

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

19

Toro 29-9180

SHIELD - TRAILING

$67.99

$

Usually ships in 3-6 days

0

20

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

21

Toro 33-3203

Rod Shield
(Superseded to 47-4682)

$

$

Not available

22

Toro 44-0990

Spring Arm
(Superseded to 99-5260)

$

$

Not available

23

Toro 44-5270

PIVOT SCREW

$10.99

$

In Stock, Qty 8

0

24

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #26)

$

$

Not available

25

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

26

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

27

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

28

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

29

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

30

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

31

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

32

Toro 2412-83

CLAMP-CABLE

$

$

Not available

33

Toro 46-7370

STEP PAD DECAL

$27.99

$

Usually ships in 3-6 days

0

34

Toro 44-0450

DECK DECAL

$

$

Not available

35

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

36

Toro 11-4079

Housing (Incl. Ref. #33 & 37)
(Superseded to 13-6989)

$

$

Not available

37

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

38

Toro 46-3500

Tunnel Discharge
(Superseded to 82-9151)

$192.99

$

Usually ships in 3-6 days

0

39

Toro 47-6540

TUNNEL CLIP

$

$

Not available

40

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0
