20576 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

Walk-Behind Mower

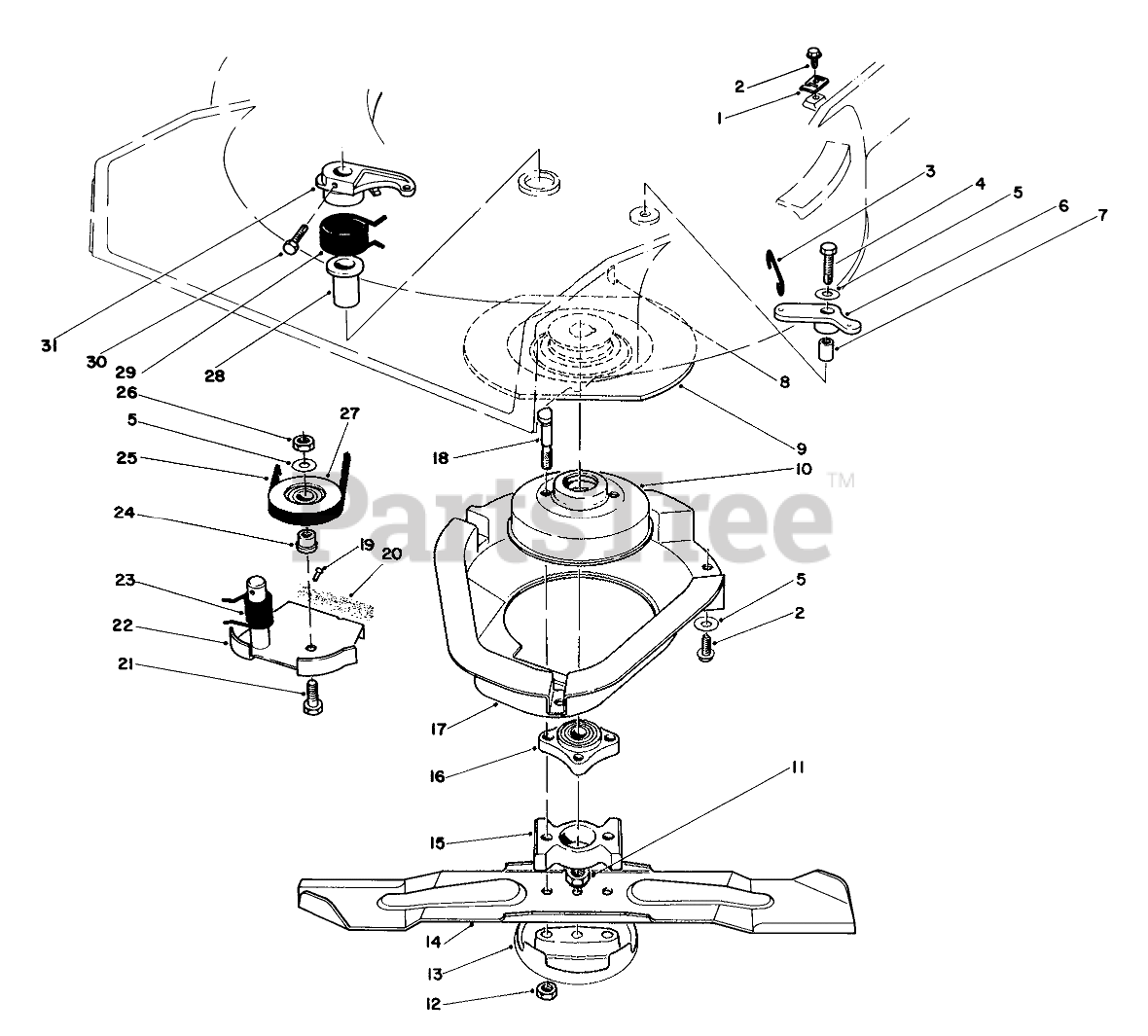

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Toro 46-5610

Cable Clamp
(Superseded to 62-3720)

$2.99

$

In Stock, only 3 left!

0

2

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

3

Toro 43-1380

Link Control

$

$

Not available

4

Toro 32104-107

SCREW-HH

$7.99

$

Usually ships in 3-6 days

0

5

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 46-5640

Bell Crank

$

$

Not available

7

Toro 42-1330

Sleeve-Bell Crank

$

$

Not available

8

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 10

0

9

Toro 43-7720

Flywheel

$

$

Not available

10

Toro 42-1020

Brake Drum
(Superseded to 94-9431)

$46.99

$

In Stock, Qty 11

0

11

Toro 3296-33

NUT-LOCK, NI

$2.99

$

Usually ships in 3-6 days

0

12

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

13

Toro 42-0910

Anti Scalp Cup
(Superseded to 80-2770)

$16.99

$

Usually ships in 3-6 days

0

14

Toro 42-1000

BLADE-21in
(Superseded to 107-4276-03)

$30.99

$

Usually ships in 3-6 days

0

15

Toro 42-6760

Spacer Blade
(Superseded to 107-4275)

$23.99

$

Usually ships in 3-6 days

0

16

Toro 42-6890

HUB ASM

$95.99

$

Usually ships in 3-6 days

0

17

Toro 46-5691

SHIELD BBC

$

$

Not available

18

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 14

0

19

Toro 3295-23

.185 DIA X .375 RT +

$11.99

$

Usually ships in 3-6 days

0

20

Toro 42-0890

Paid
(Superseded to 11-1359)

$

$

Not available

21

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

22

Toro 42-0940

Brake Plate
(Superseded to 11-1359)

$

$

Not available

23

Toro 46-5670

SPRING-TORSION

$11.99

$

Usually ships in 3-6 days

0

24

Toro 46-5630

HUB-PULLEY, IDLER

$19.99

$

In Stock, only 1 left!

0

25

Toro 42-0880

V-Belt
(Superseded to 42-0881)

$33.99

$

Usually ships in 3-6 days

0

26

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 12

0

27

Toro 46-5650

PULLEY-IDLER
(Superseded to 117-5299)

$42.99

$

In Stock, only 2 left!

0

28

Toro 46-6680

BUSHING PM

$27.99

$

In Stock, only 1 left!

0

29

Toro 46-5660

TORSION SPRING

$

$

Not available

30

Toro 32104-97

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

31

Toro 42-0950

Lever

$

$

Not available
