20575 - Toro Walk-Behind Mower (SN: 008007501 - 008999999) (1978) REWIND STARTER NO. 590519 Parts Diagram

Walk-Behind Mower

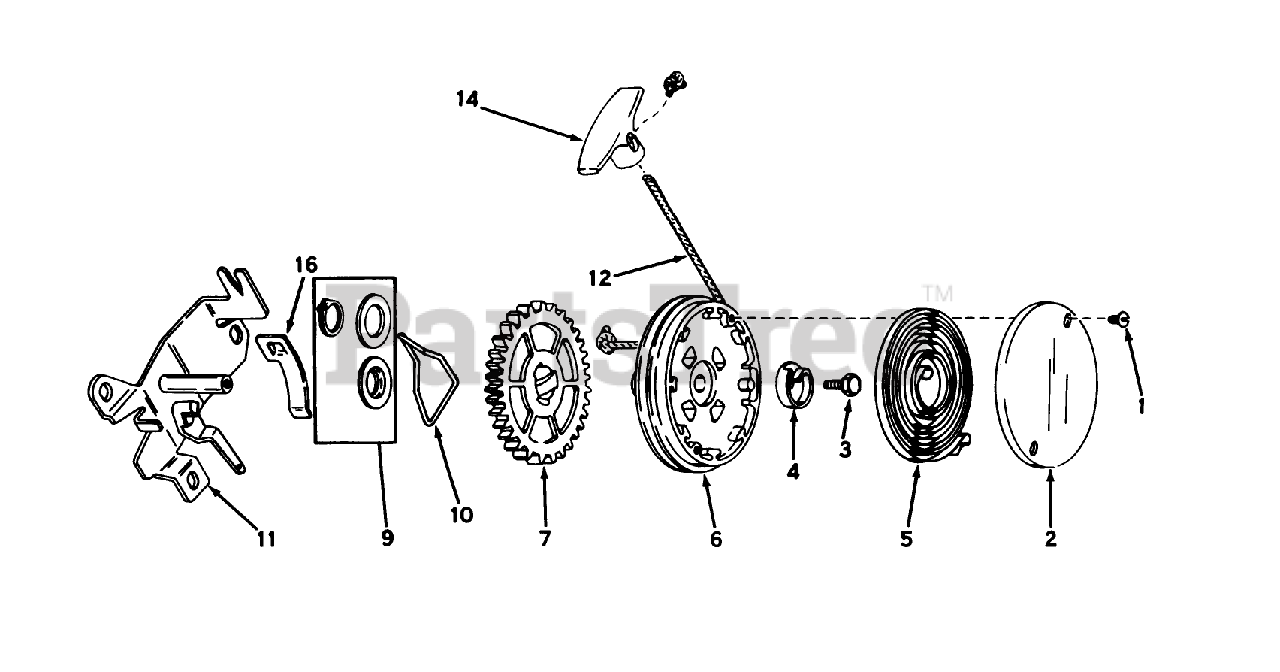

REWIND STARTER NO. 590519 Parts Diagram

  • Title
1

$1.99

$

In Stock, only 3 left!

0

2

Tecumseh 590431

Cover, Spring

$5.99

$

Usually ships in 3-12 days

0

3

Tecumseh 590472

Screw, Hex Washer Head

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 590432

Hub Spring

$5.49

$

Usually ships in 3-12 days

0

5

Tecumseh 590433

Spring, Rewind

$18.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590434A

Pulley Assembly (Incl. Ref. #9)

$31.99

$

Usually ships in 3-12 days

0

$

$

Not available

9

Tecumseh 590470

Kit, Thrust Wash. & Snap Rg.

$5.49

$

Usually ships in 3-12 days

0

10

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 590520

Bracket Assy., Mounting

$

$

Not available

12

Toro 590451a

Rope-Starter

$

$

Currently unavailable

14

Tecumseh 590452

Handle-Starter
(Superseded to 590701)

$6.49

$

In Stock, only 2 left!

0

16

Tecumseh 590446

Clip Rope

$3.99

$

Usually ships in 3-12 days

0
