20574 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

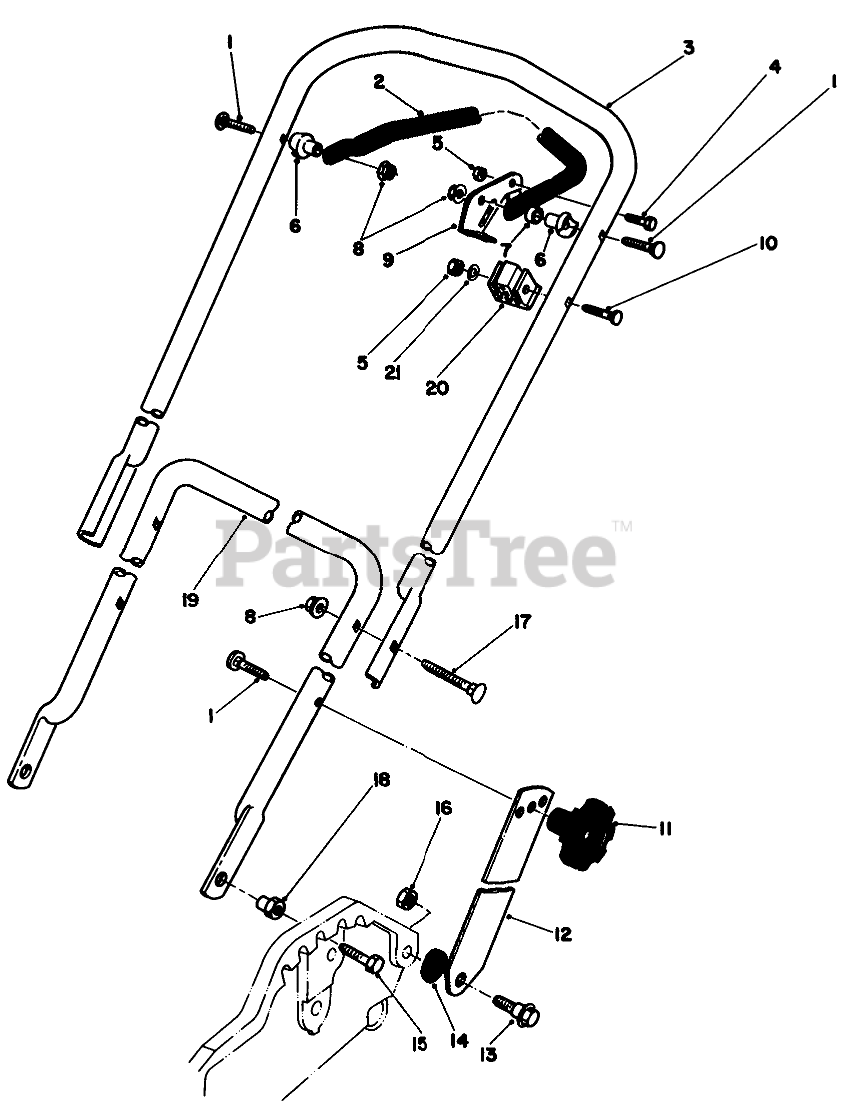

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 7

0

2

Toro 46-9900

CONTROL BAR

$

$

Not available

3

Toro 52-7420

UPPER HANDLE

$149.99

$

Usually ships in 3-6 days

0

4

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

7

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

8

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

9

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

10

Toro 46-6434

HANDLE SCREW

$

$

Not available

11

Toro 19-4050

KNOB

$17.99

$

In Stock, only 3 left!

0

12

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

13

Toro 27-7210

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

14

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

15

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

17

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

18

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

19

Toro 50-9920

LOWER HANDLE

$

$

Not available

20

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

21

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
