20574 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) ENGINE MODEL NO. TNT 100-10104F Parts Diagram

Walk-Behind Mower

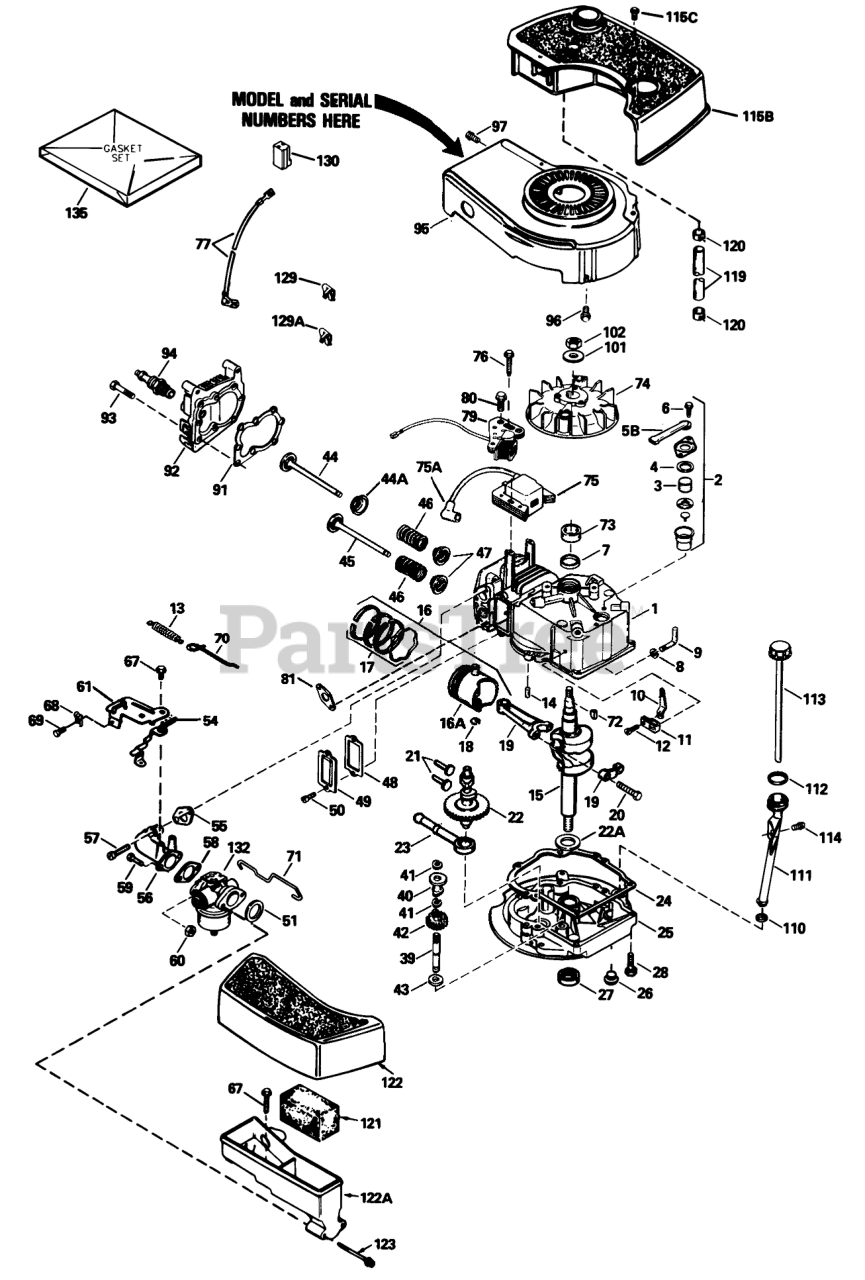

ENGINE MODEL NO. TNT 100-10104F Parts Diagram

  • Title

1

Tecumseh 34429A

Cylinder Assy. (Incl. Ref. #6 & 14)

$

$

Currently unavailable

2

Tecumseh 34214A

Breather Assy. (Incl. Ref. #3-6 & 129)
(Superseded to 34214B)

$

$

Not available

3

Tecumseh 33734

Element-Breather

$1.99

$

In Stock, Qty 11

0

4

Tecumseh 33735

Gasket-Breather

$1.99

$

Usually ships in 3-12 days

0

5B

Tecumseh 33886

Tube, Breaker

$

$

Not available

6

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

7

Tecumseh 32600

Seal-Oil

$

$

Not available

8

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

9

Tecumseh 30589

Rod, Governor (Incl. Ref. #8)

$5.49

$

In Stock, only 1 left!

0

10

Tecumseh 32651

Governor Lever

$

$

Not available

11

Tecumseh 31335

Clamp-Lever, Governor

$1.99

$

In Stock, only 3 left!

0

12

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 9

0

13

Tecumseh 33890

Spring Governor

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 26727

Pin-Dowel

$1.99

$

In Stock, Qty 5

0

15

Tecumseh 35482

Crankshaft

$77.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35544

Piston, Pin & Ring Assy. (STD.)(Incl. Ref. #16A, 17 & 18)
(Superseded to 35544A)

$60.99

$

In Stock, only 2 left!

0

16

Tecumseh 35545

Piston, Pin & Ring Assy. (.010 oversize)(Incl. Ref. #16A, 17 & 18)
(Superseded to 35545A)

$

$

Not available

16

Tecumseh 35546

Piston, Pin & Ring Assy. (.020 oversize)(Incl. Ref. #16A, 17 & 18)

$

$

Not available

16A

Tecumseh 35541

Piston & Pin Assy. (Std.)(Incl. Ref. #18)

$45.99

$

In Stock, only 1 left!

0

16A

Tecumseh 35542

Piston & Pin Assy. (.010 oversize)(Incl. Ref. #18)

$

$

Not available

16A

Tecumseh 35543

Piston & Pin Assy. (.020 oversize)(Incl. Ref. #18)

$

$

Not available

17

Tecumseh 35547

Ring Set-Piston (Std.)
(Superseded to 35547A)

$

$

Not available

17

Tecumseh 35548

Ring Set, Piston(.0100versize)
(Superseded to 35548A)

$

$

Not available

17

Tecumseh 35549

Ring Set (.020" OS)

$

$

Not available

18

Tecumseh 20381

Ring-Retaining, Piston Pin

$1.99

$

In Stock, Qty 7

0

19

Tecumseh 30963B

Rod Assy., Connecting (Incl. Ref. #20)

$29.99

$

Usually ships in 3-12 days

0

20

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

21

Tecumseh 27241

Lifter-Valve

$5.49

$

In Stock, only 2 left!

0

22

Tecumseh 33553

Camshaft(Mech.Comp. Release)
(Superseded to 35992)

$72.99

$

Usually ships in 3-12 days

0

22A

Tecumseh 32323

Washer-Thrust

$8.49

$

Usually ships in 3-12 days

0

23

Tecumseh 29914

Oil Pump ASM

$9.49

$

Usually ships in 3-12 days

0

24

Tecumseh 35261

Gasket
(Superseded to 37609)

$2.99

$

In Stock, only 3 left!

0

25

Tecumseh 34311B

Flange, Mounting (Incl. Ref. #26, 27 & 39)
(Superseded to 37608A)

$77.99

$

Usually ships in 3-12 days

0

26

Tecumseh 27244

Plug Oil Drain
(Superseded to 36083)

$6.99

$

In Stock, Qty 5

0

27

Tecumseh 27897

Seal-Oil

$8.49

$

In Stock, Qty 17

0

28

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

$1.99

$

Usually ships in 3-12 days

0

39

Tecumseh 30574

Shaft-Governor
(Superseded to 30574A)

$7.49

$

In Stock, only 4 left!

0

40

Tecumseh 30588A

Spool-Governor

$1.99

$

In Stock, only 4 left!

0

41

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

42

Tecumseh 30591

Gear Assy., Governor (Incl. Ref. #43)

$13.99

$

In Stock, only 1 left!

0

43

Tecumseh 35479

Washer
(Superseded to 651080)

$1.99

$

In Stock, Qty 8

0

44

Tecumseh 29314B

Valve, Intake (Std.) (Incl. Ref. #47)
(Superseded to 29314C)

$5.99

$

In Stock, only 1 left!

0

44

Tecumseh 29315C

Valve, Intake (1/32" oversize) (Incl. Ref. #47)

$

$

Not available

44A

Tecumseh 35390

Seal Assy., Intake

$

$

Not available

45

Tecumseh 29313C

Valve, Exhaust (Std.) (Incl. Ref. #47)

$

$

Not available

45

Tecumseh 29315C

Valve, Exhaust (1/32" oversize) (Incl. Ref. #47)

$

$

Not available

46

Tecumseh 31672

Spring-Valve

$1.99

$

In Stock, Qty 14

0

47

Tecumseh 31673

Cap-Valve, Spring

$1.99

$

In Stock, Qty 5

0

48

Tecumseh 27234A

Gasket-Cover, Valve

$5.99

$

In Stock, only 2 left!

0

49

Tecumseh 32755

Cover-Valve

$5.49

$

Usually ships in 3-12 days

0

50

Tecumseh 650128

Screw

$5.49

$

In Stock, only 2 left!

0

51

Tecumseh 33051

Gasket-Air Cleaner

$1.49

$

In Stock, Qty 9

0

54

Tecumseh 34310

Lever Control

$

$

Not available

55

Tecumseh 34690A

Gasket-Intake Pipe

$4.49

$

In Stock, only 2 left!

0

56

Tecumseh 33004A

Pipe, Intake (Incl. Ref. #55)

$23.99

$

Usually ships in 3-12 days

0

57

Tecumseh 650451

Screw (1/4-20 x 1)

$1.99

$

In Stock, only 4 left!

0

58

Tecumseh 31688A

Gasket-Carburetor

$2.49

$

In Stock, only 2 left!

0

59

Tecumseh 6201

Screw (1/4-28 x 7/8)

$

$

Not available

60

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 1 left!

0

61

Tecumseh 33889A

Bracket Assy., Control (Incl. Ref. #54 & 67)

$13.99

$

Usually ships in 3-12 days

0

67

Tecumseh 650804

Screw, Hex Washer Hd Shoulder Self-Tap

$3.49

$

In Stock, Qty 9

0

68

Tecumseh 27793

Conduit

$1.99

$

In Stock, only 2 left!

0

69

Tecumseh 28942

Screw (10-32 x 3/8)

$1.49

$

In Stock, only 4 left!

0

70

Tecumseh 33151

Link Governor Spring

$1.99

$

In Stock, only 3 left!

0

71

Tecumseh 34336

Link-Throttle
(Superseded to 34336A)

$1.99

$

In Stock, Qty 5

0

72

Tecumseh 611004

Key-Flywheel

$1.49

$

In Stock, only 4 left!

0

73

Tecumseh 34080

Spacer

$1.99

$

In Stock, only 2 left!

0

74

Tecumseh 611050

Flywheel

$64.99

$

Usually ships in 3-12 days

0

75

Tecumseh 34443A

Solid State
(Superseded to 34443D)

$44.99

$

Usually ships in 3-12 days

0

75A

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 3 left!

0

76

Tecumseh 650814

Screw
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

77

Tecumseh 35020

Wire-Ground

$3.49

$

Usually ships in 3-12 days

0

79

Tecumseh 34990

Coil, Alternator
(Superseded to 36952)

$62.99

$

In Stock, only 1 left!

0

80

Tecumseh 650767

Screw (8-32x27/64)

$1.49

$

In Stock, only 4 left!

0

81

Tecumseh 30081A

Gasket, Exhaust

$1.49

$

In Stock, only 2 left!

0

91

Tecumseh 33015A

Gasket-Cylinder Head

$11.99

$

Usually ships in 3-12 days

0

92

Tecumseh 34342

Head-Cylinder
(Superseded to 36476)

$32.99

$

Usually ships in 3-12 days

0

93

Tecumseh 6021A

Screw (5/16-18x1-1/2)

$1.99

$

In Stock, only 3 left!

0

94

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

$3.49

$

In Stock, Qty 16

0

95

Tecumseh 33891B

Housing-Blower

$

$

Not available

96

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

97

Tecumseh 30200

Screw (10-24 x 9/16)

$1.49

$

In Stock, Qty 10

0

101

Tecumseh 650815

Washer-Belleville

$1.99

$

In Stock, Qty 10

0

102

Tecumseh 650816

Nut-Flywheel

$4.49

$

In Stock, Qty 6

0

110

Tecumseh 34265

Gasket

$2.49

$

In Stock, only 1 left!

0

111

Tecumseh 35581

Tube, Oil Fill

$3.99

$

Usually ships in 3-12 days

0

112

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

113

Tecumseh 35582

Dipstick, Oil

$5.49

$

Usually ships in 3-12 days

0

114

Tecumseh 650562

Screw (10-32 x 1/2)

$1.99

$

In Stock, Qty 9

0

115B

Tecumseh 33904B

Tank Assy. (Incl. Ref. #118 & 120)

$

$

Not available

115C

Tecumseh 28763

Screw (10-32 x 35/64)

$1.99

$

Usually ships in 3-12 days

0

119

Tecumseh 30705

Line-Fuel

$16.99

$

In Stock, only 2 left!

0

120

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

121

Tecumseh 33896

Filer, Air

$4.49

$

In Stock, only 1 left!

0

122

Tecumseh 33897

Cove, Air Cleaner

$

$

Not available

122A

Tecumseh 33895

Body Air Cleaner

$10.99

$

Usually ships in 3-12 days

0

123

Tecumseh 650762

Screw Fil Hd.

$5.49

$

Usually ships in 3-12 days

0

129

Tecumseh 29443

Clip-Wire

$1.99

$

In Stock, Qty 5

0

129A

Tecumseh 33887

Clip, Breather

$3.99

$

In Stock, only 1 left!

0

130

Tecumseh 34977

Connector-Body

$

$

Not available

132

Tecumseh 632050A

Carburetor (Incl. Ref. #58)
(Superseded to 632795A)

$109.99

$

In Stock, only 2 left!

0

135

Tecumseh 33906B

Gasket Set (Incl. items marked )
(Superseded to 33906D)

$23.99

$

In Stock, only 1 left!
