20574 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1989) CONTROL PANEL ASSEMBLY Parts Diagram

Walk-Behind Mower

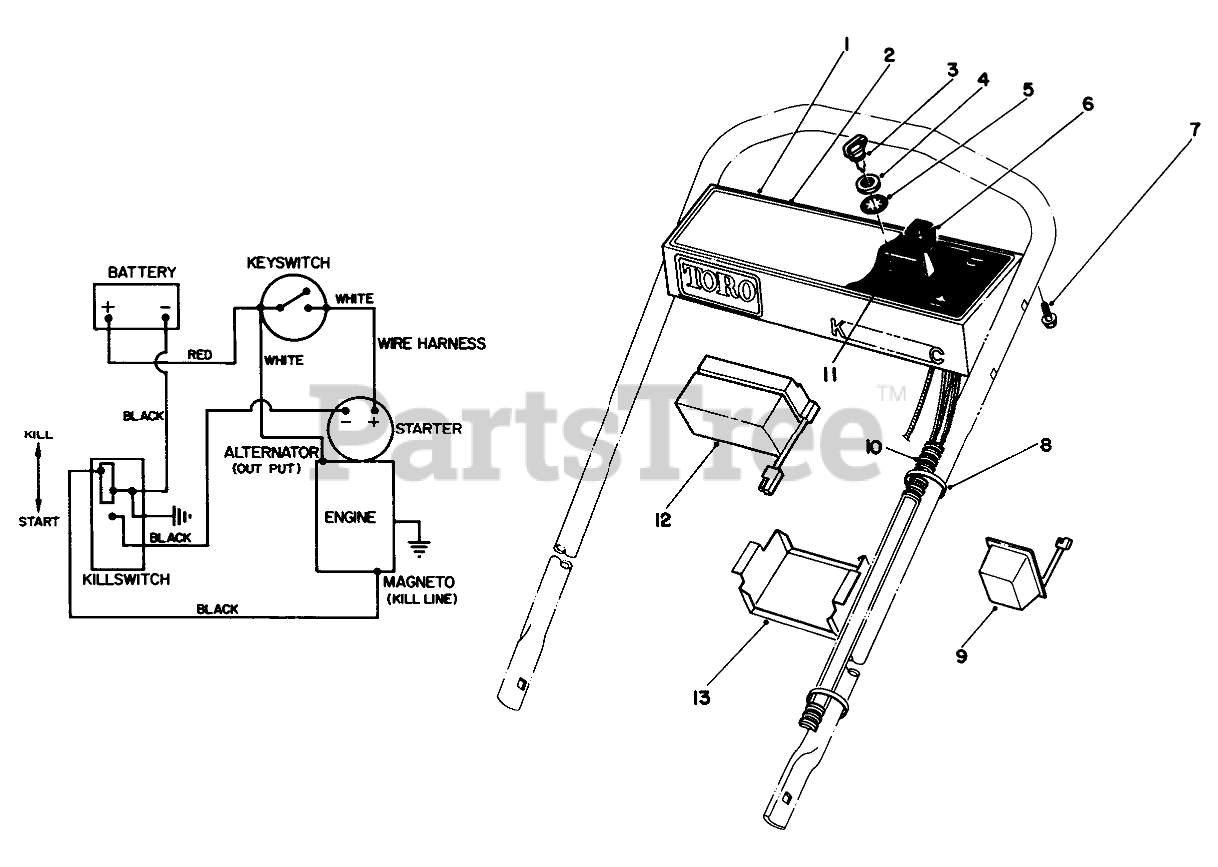

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title
1

Toro 11-6919

Control Panel (Incl. Ref. #2)

$

$

Not available

2

Toro 46-7440

Decal-Instructions

$

$

Not available

3

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

5

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 2 left!

0

6

Toro 67-9812

THROTTLE CONTROL

$

$

Not available

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 6-9780

Charger
(Superseded to 131-0848)

$78.99

$

Usually ships in 3-6 days

0

10

Toro 46-5810

WIRE HARNESS

$186.99

$

Usually ships in 3-6 days

0

11

Toro 46-5780

Switch-Starter (Incl. Ref. #4 & 5)

$29.99

$

In Stock, only 1 left!

0

12

Toro 63-8570

Battery
(Superseded to 99-5262)

$

$

Not available

13

Toro 63-8480

BATTERY RETAINER

$

$

Not available
