20574 - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) CONTROL PANEL ASSEMBLY Parts Diagram

Walk-Behind Mower

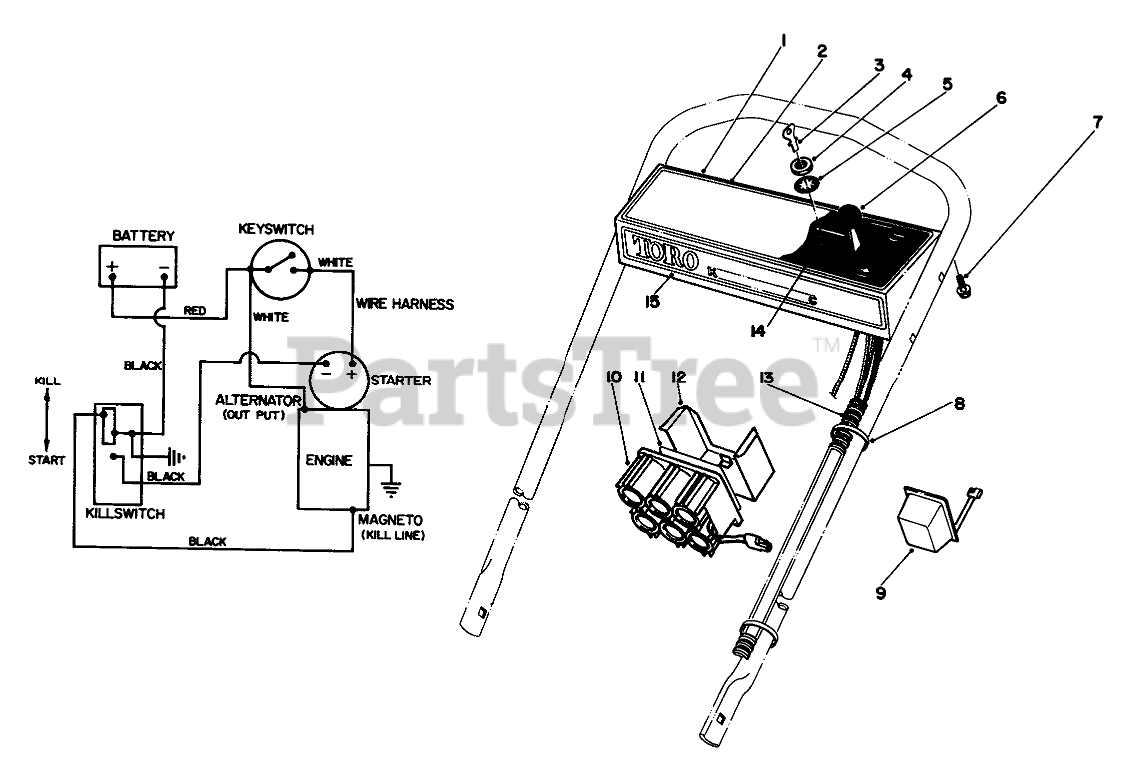

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 11-6919

Control Panel (Incl. Ref. #2)

$

$

Not available

2

Toro 46-7440

Decal-Instructions

$

$

Not available

3

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 17

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

5

Toro 32545

Lockwasher

$

$

Currently unavailable

6

Toro 46-6010

SERVICE THROTTLE CONTRO

$72.99

$

Usually ships in 3-6 days

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 6-9780

Charger
(Superseded to 131-0848)

$69.99

$

Usually ships in 3-6 days

0

10

Toro 55-7520

BATTERY ASSEMBLY

$176.99

$

Usually ships in 3-6 days

0

11

Toro 55-8190

Decal
(Superseded to 92-8659)

$16.99

$

Usually ships in 3-6 days

0

12

Toro 55-8180

Retainer-Battery
(Superseded to 55-8180-03)

$41.99

$

Usually ships in 3-6 days

0

13

Toro 46-5810

WIRE HARNESS

$186.99

$

Usually ships in 3-6 days

0

14

Toro 46-5780

Switch-Starter (Incl. Ref. #4 8 5)

$29.99

$

In Stock, Qty 7

0

15

Toro 47-4600

Decal-Toro

$

$

Not available
