20574 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) STARTER ASSEMBLY Parts Diagram

Walk-Behind Mower

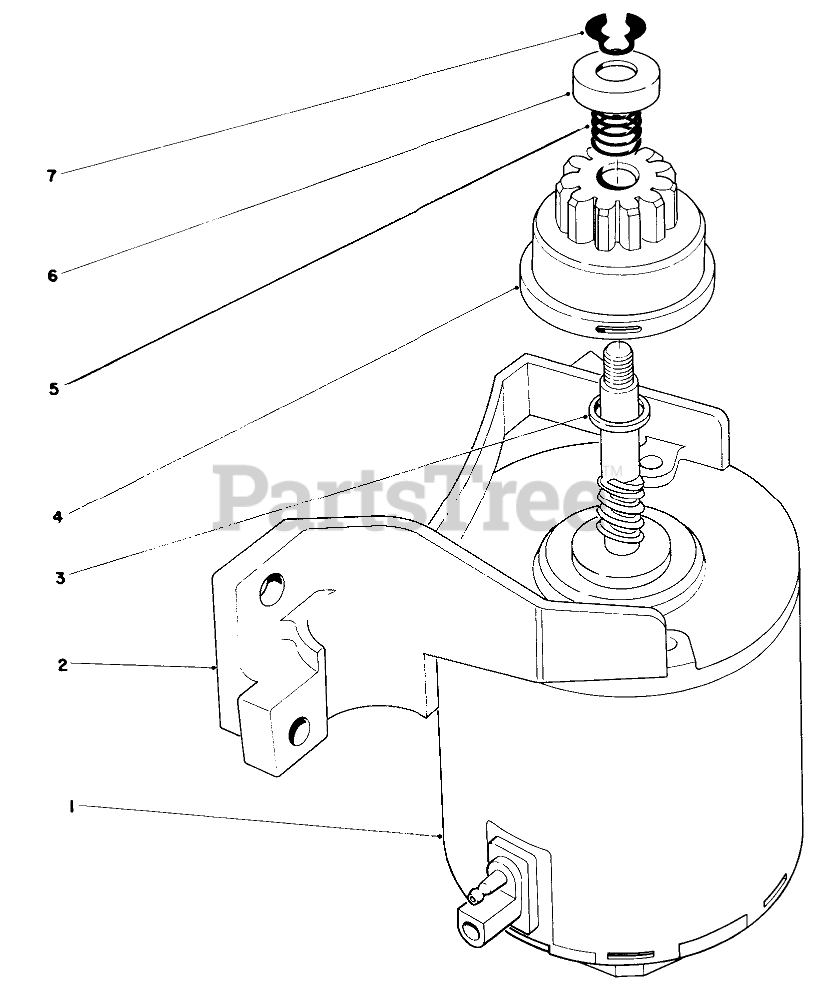

STARTER ASSEMBLY Parts Diagram

  • Title
1

Toro 218-543

END FRAME W/BRUSH

$

$

Not available

2

Toro 218-541

BRKT END FRAME

$85.99

$

In Stock, only 1 left!

0

3

Toro 23-9591

SPACER

$

$

Not available

4

Toro 43-4370

PINION ASM

$104.99

$

Usually ships in 3-6 days

0

5

Toro 44-0500

COMPRESSION SPRING

$

$

Not available

6

Toro 49-2170

PINION STOP

$10.99

$

In Stock, only 1 left!

0

7

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

Toro 49-4210

Starter Assy. (Incl. Ref. #1-7)

Note: Not Illusrated

$

$

Not available
