20574 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) CONTROL PANEL ASSEMBLY Parts Diagram

Walk-Behind Mower

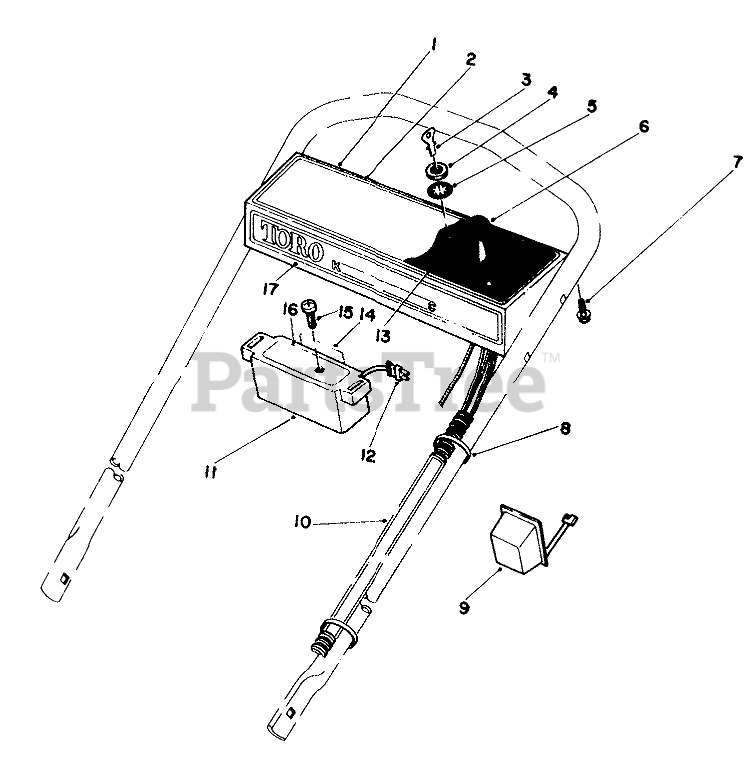

CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 11-6919

Control Panel (Incl. Ref. #2)

$

$

Not available

2

Toro 46-7440

Decal-Instructions

$

$

Not available

3

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

4

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

5

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

6

Toro 46-6010

SERVICE THROTTLE CONTRO

$60.99

$

Usually ships in 3-6 days

0

7

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

8

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

9

Toro 6-9780

Charger
(Superseded to 131-0848)

$67.99

$

Usually ships in 3-6 days

0

10

Toro 46-5810

WIRE HARNESS

$164.99

$

Usually ships in 3-6 days

0

11

Toro 39-0640

Battery Case

$

$

Not available

12

Toro 48-2070

LEAD WIRE ASM

$

$

Not available

13

Toro 46-5780

Switch-Starter (Incl. Ref. #4 & 5)

$29.99

$

In Stock, only 1 left!

0

14

Toro 36-5380

Decal

$

$

Not available

15

Toro 32104-129

Screw

$

$

Not available

16

Toro 39-0630

BATTERY COVER

$

$

Not available

17

Toro 47-4600

Decal-Toro

$

$

Not available

Toro 38-4180

Battery Assembly (Incl. Ref. #11-12 & 14-16)
(Superseded to 99-5262)

Note: Not illustrated

$

$

Not available
