20571 - Toro Guardian Walk-Behind Mower (SN: 001000001 - 001999999) (1971) REWIND STARTER NO. 590450A Parts Diagram

Guardian Walk-Behind Mower

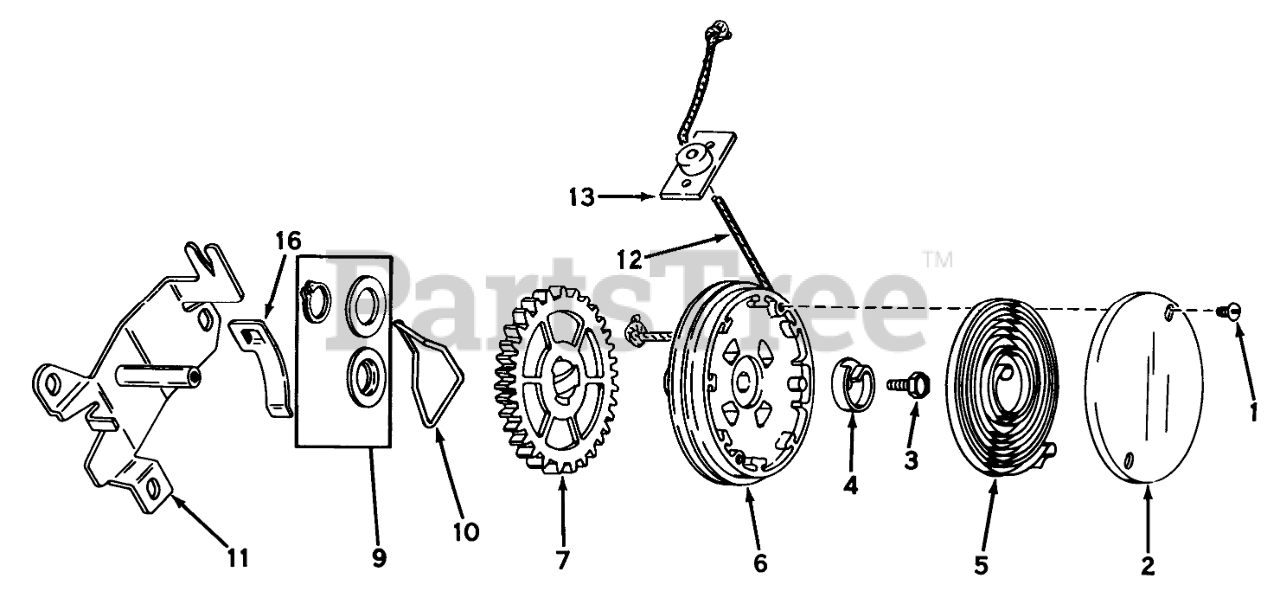

REWIND STARTER NO. 590450A Parts Diagram

  • Title
1

Tecumseh 590430

Screw, Cover
(Superseded to 590477)

$1.99

$

In Stock, only 3 left!

0

2

Tecumseh 590431

Cover, Spring

$5.99

$

Usually ships in 3-12 days

0

3

Tecumseh 590472

Screw, Hex Washer Head

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 590432

Hub Spring

$5.49

$

Usually ships in 3-12 days

0

5

Tecumseh 590433

Spring, Rewind

$18.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590434A

Pulley Assy. (Incl. No. 9)

$31.99

$

Usually ships in 3-12 days

0

7

Tecumseh 590435A

Gear
(Superseded to 590435B)

$

$

Not available

9

Tecumseh 590470

Kit, Thrust Wash. & Snap Rg.

$5.49

$

Usually ships in 3-12 days

0

10

$1.99

$

Usually ships in 3-12 days

0

11

Tecumseh 590439A

Bracket Assy. Mounting

$13.99

$

Usually ships in 3-12 days

0

12

Tecumseh 590451

Rope, Starter
(Superseded to 590535)

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590441

Bracket Assy.

$7.99

$

Usually ships in 3-12 days

0

16

Tecumseh 590446

Clip Rope

$3.99

$

Usually ships in 3-12 days

0
