20564 - Toro Walk-Behind Mower, Electric (SN: 008000001 - 008999999) (1988) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower, Electric

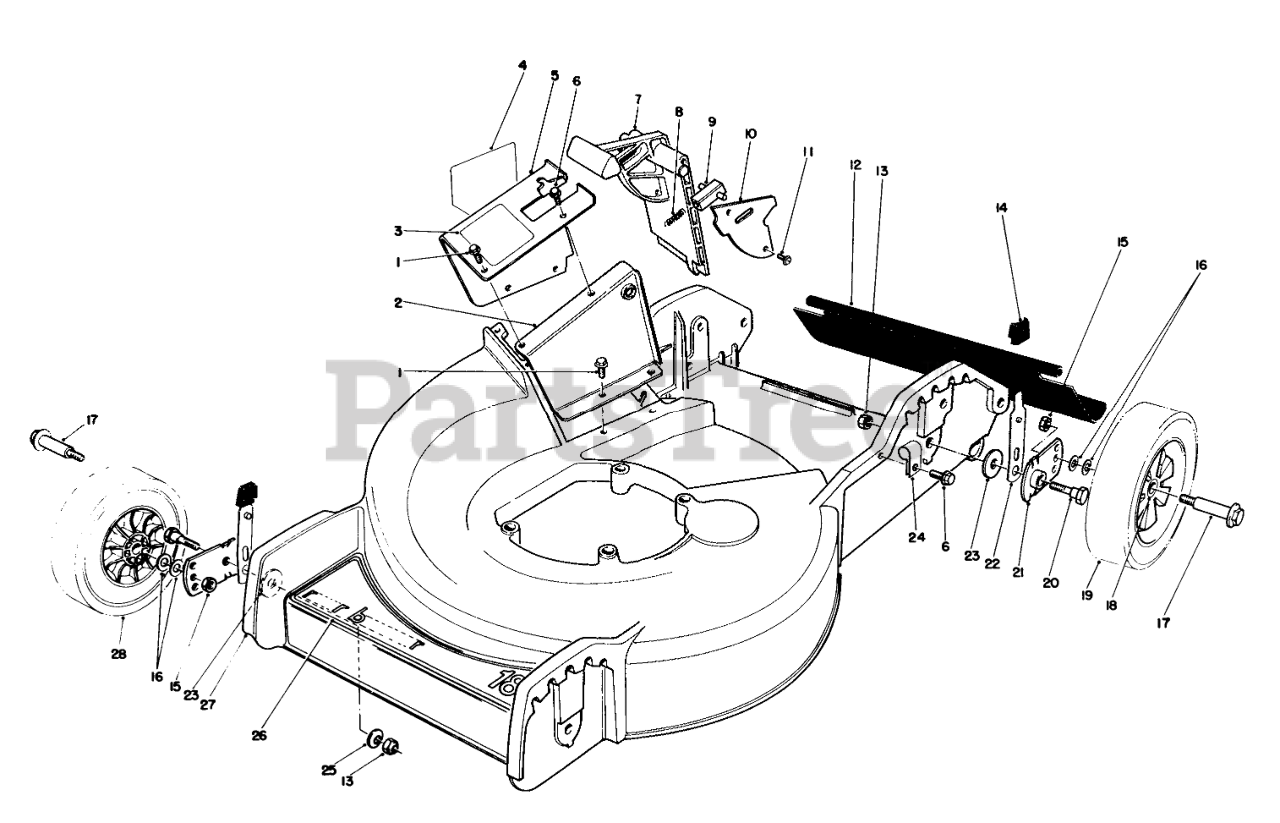

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

2

Toro 49-8030

Tunnel-Inner
(Superseded to 49-8030-01)

$

$

Not available

3

Toro 50-9650

CAUTION DECAL

$

$

Not available

4

Toro 50-9620

Decal-Danger
(Superseded to 43-8480)

$6.99

$

In Stock, Qty 6

0

5

Toro 11-8959

Tunnel-Outer (Incl. Ref. #3 & 4)

$

$

Not available

6

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0

7

Toro 33-0410

Door Mulching
(Superseded to 33-0412)

$

$

Not available

8

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

9

Toro 47-5550

Door Latch
(Superseded to 47-5551)

$

$

Not available

10

Toro 33-0440

Cover Door
(Superseded to 33-0441)

$14.99

$

Usually ships in 3-6 days

0

11

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

12

Toro 33-2380

SHIELD - TRAILING

$69.99

$

Usually ships in 3-6 days

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

15

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 15

0

16

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 18

0

17

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

18

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 8

0

19

Toro 27-6200

Wheel & Tire Assembly (Incl. Ref. #18)

$

$

Not available

20

Toro 28-8880

PIVOT SCREW

$10.99

$

In Stock, only 2 left!

0

21

Toro 33-0400

PIVOT ARM ASSY

$38.99

$

Usually ships in 3-6 days

0

22

Toro 25-8000

SPRING ARM ASM

$

$

Not available

23

Toro 33-0390

PIVOT WASHER

$3.99

$

In Stock, only 2 left!

0

24

Toro 2412-89

CLAMP-R

$2.99

$

Usually ships in 3-6 days

0

25

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

26

Toro 46-7920

DECAL-DECK

$

$

Not available

27

Toro 12-1089

HSG & CARTON

$1078.99

$

Usually ships in 3-6 days

0

28

Toro 27-6210

Wheel & Tire Assy. (Incl. Ref. #18)

$

$

Not available
