20564 - Toro Walk-Behind Mower, Electric (SN: 005000001 - 005999999) (1985) MOTOR BRIGGS & STATTON MODEL NO. 748001-0125-01 Parts Diagram

Walk-Behind Mower, Electric

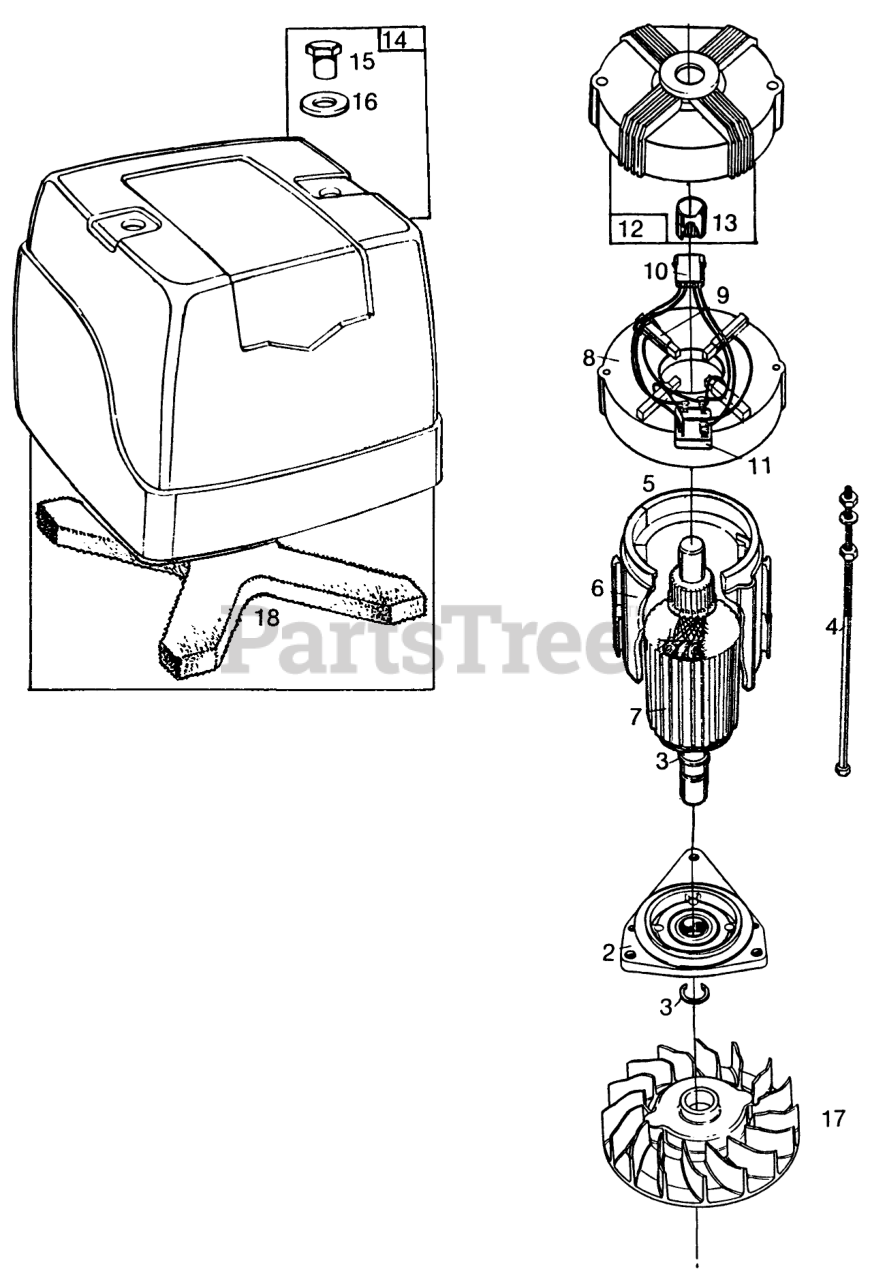

MOTOR BRIGGS & STATTON MODEL NO. 748001-0125-01 Parts Diagram

  • Title

2

Briggs & Stratton 394770

Spacer

$55.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 395477

Ring-Retaining

$0.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 395471

Bolt-Thru (Includes Two Sets)

$5.49

$

In Stock, only 1 left!

0

5

Briggs & Stratton 394750

Housing Assembly

$62.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 395468

Insulator Group-Housing
(Superseded to 490830)

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 397976

Armature Group

$8.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 280569

Box-Brush

$11.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 398575

Brush Group (Includes Brush Holders and Retainers) Uses: 399187 Retainers (Includes 4 Parts)

$34.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 395478

Lead Group

$22.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 394777

Rectifier

$18.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 398440

End Cap-Brush

$15.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 394769

Bearing-Needle

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 397711

Cover Group-Motor (Includes Hardware & Filter)

$25.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 231298

Nut-Hex

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 93852

Washer
(Superseded to 690310)

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 280478

Fan
(Superseded to 491389)

$20.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 271711

Filter
(Superseded to 271792)

$14.99

$

Usually ships in 2-12 days

0
