20564 - Toro Walk-Behind Mower, Electric (SN: 004000001 - 004999999) (1984) MOTOR & BLADE ASSEMBLY Parts Diagram

Walk-Behind Mower, Electric

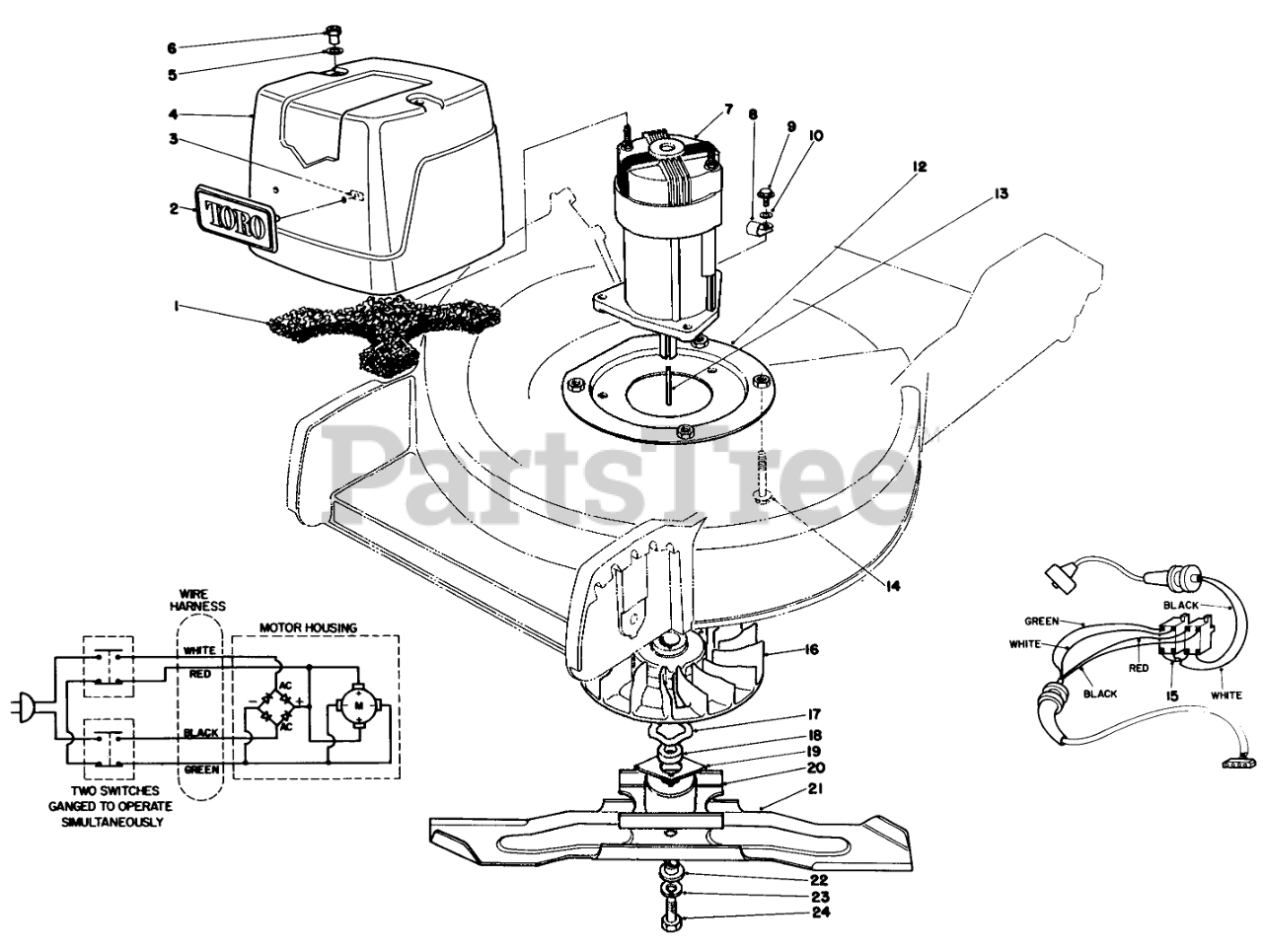

MOTOR & BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 50-9770

FILTER F/W

$

$

Not available

2

Toro 50-9690

TORO LOGO PLT

$

$

Not available

3

Toro 3290-449

Receiver-Stud

$

$

Not available

4

Toro 50-9760

Shroud-Motor
(Superseded to 50-9761)

$

$

Not available

5

Toro 50-9750

WASHER F/W

$

$

Not available

6

Toro 50-9740

NUT F/W

$

$

Not available

7

Toro 50-9990

Motor-Electric

$

$

Not available

8

Toro 2412-91

CLAMP

$3.99

$

In Stock, only 2 left!

0

9

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

10

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 50-9830

MOTOR MOUNT ASM WA

$

$

Not available

13

Toro 32150-1

KEY-SQUARE

$4.99

$

Usually ships in 3-6 days

0

14

Toro 3234-18

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

15

Toro 50-9660

BRAKE WIRE

$

$

Not available

16

Toro 50-9790

FAN F/W

$

$

Not available

17

Toro 3290-448

WAVE WASHER

$

$

Not available

18

Toro 50-9780

BLADE RETAINER SPACER

$

$

Not available

19

Toro 55-4640

FAN DRIVER

$

$

Not available

20

Toro 20-2752

BLADE RETAINER WA

$

$

Not available

21

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

Usually ships in 3-6 days

0

22

Toro 50-9890

BLADE SPACER

$

$

Not available

23

Toro 3253-31

WASHER-LOCK/SP
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

24

Toro 3210-24

SCREW-HH

$

$

Not available
