20564 C - Toro Walk-Behind Mower, Electric (SN: 008000001 - 008999999) (1988) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower, Electric

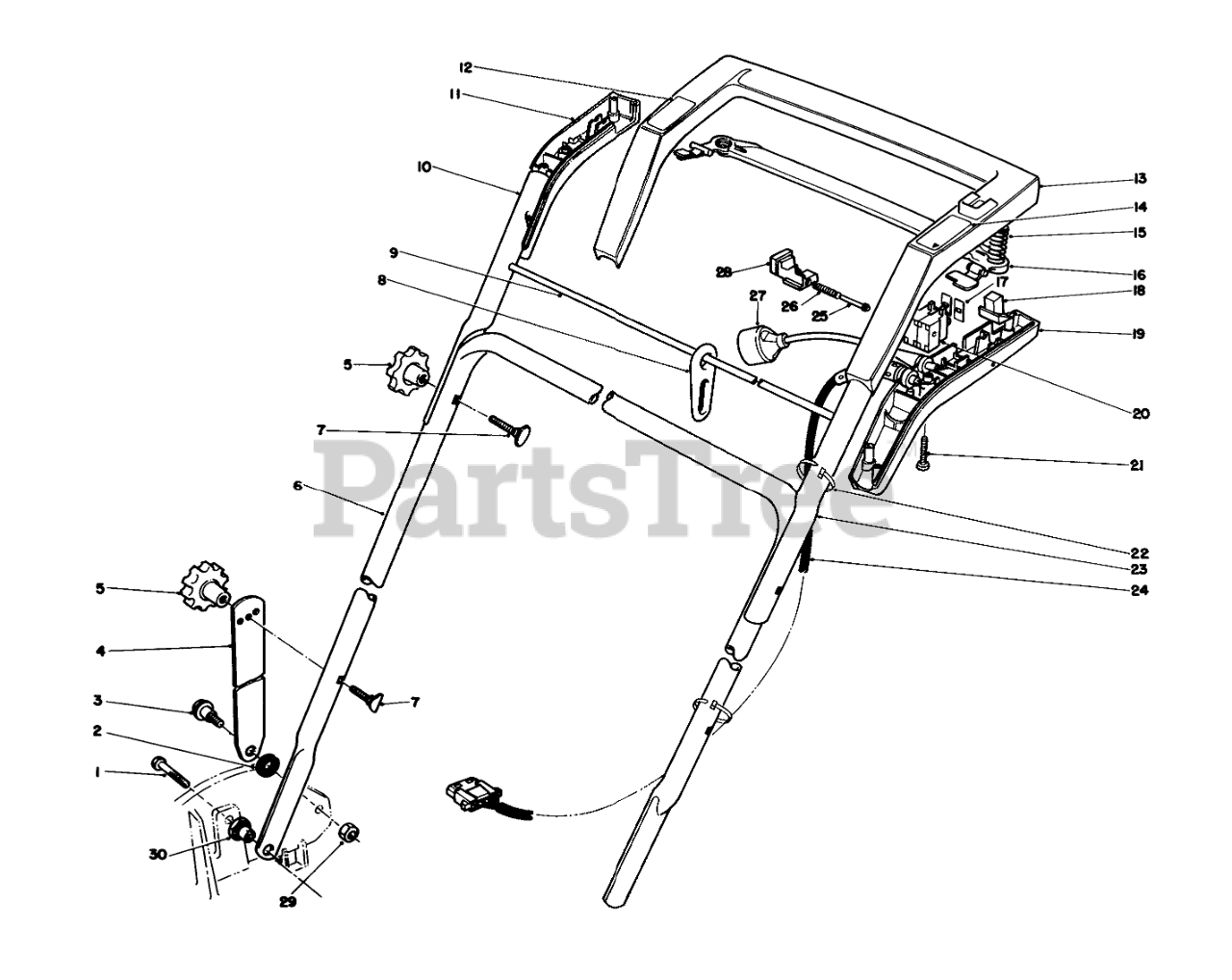

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

2

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 16

0

3

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, Qty 11

0

4

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

5

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

6

Toro 50-9920

LOWER HANDLE

$

$

Not available

7

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 20+

0

8

Toro 50-9860

CORD MINDER

$

$

Not available

9

Toro 50-9850

CORD MINDER ROD

$

$

Not available

10

Toro 50-9940

UPPER HDLE TUBE RH

$

$

Not available

11

Toro 54-7830

RH GRIP COVER

$

$

Not available

12

Toro 62-3260

DECAL - SHOCK WARNING

$

$

Not available

13

Toro 12-7069

Grip-Handle (Incl. Ref. #12 & 14)
(Superseded to 12-1099)

$130.99

$

Usually ships in 3-6 days

0

14

Toro 62-3850

Decal-On-Off

$

$

Not available

15

Toro 34-1030

COMP SPRING

$

$

Not available

16

Toro 54-7810

SQUEEZE LEVER

$

$

Not available

17

Toro 55-4400

DUST COVER

$

$

Not available

18

Toro 34-0320

SWITCH BUTTON

$

$

Not available

19

Toro 54-7820

LH GRIP COVER

$

$

Not available

20

Toro 54-7800

ON/OFF SWITCH

$

$

Not available

21

Toro 32104-120

SCREW-PPH

$1.99

$

Usually ships in 3-6 days

0

22

Cable Tie

$

$

Not available

23

Toro 50-9930

UPPER HDLE TUBE LH

$

$

Not available

24

Toro 50-9840

WIRE HARNESS

$

$

Not available

25

Toro 50-9570

BUTTON GUIDE

$

$

Not available

26

Toro 50-9590

COMPRESSION SPRING

$

$

Not available

27

Toro 42-0771

POWER SUPPLY CORD

$

$

Not available

28

Toro 54-7850

INTERLOCK BUTTON

$

$

Not available

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

30

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

Toro 11-8559

Loose Parts

$

$

Not available
