20562 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) GRASS BAG ASSEMBLY Parts Diagram

Walk-Behind Mower

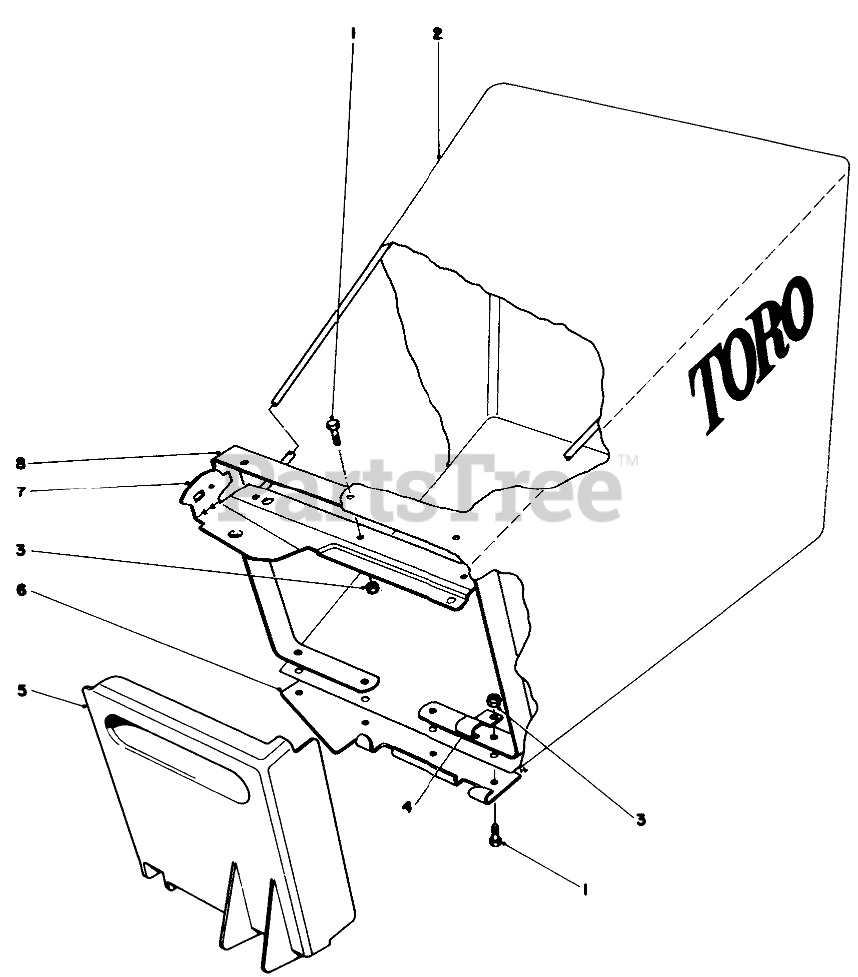

GRASS BAG ASSEMBLY Parts Diagram

  • Title
1

Toro 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

2

Toro 6-1389

REPLACMNT BAG 44-0530

$

$

Not available

3

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

4

Toro 23-5100

SUPPORT BRACKET

$

$

Not available

5

Toro 23-1140

BAG DOOR

$181.99

$

Usually ships in 3-6 days

0

6

Toro 23-1150

DOOR BRACKET

$

$

Not available

7

Toro 27-8170

BAG FRAME WA

$

$

Not available

8

Toro 23-1110

LOWER BAG FRAME

$128.99

$

Usually ships in 3-6 days

0

Toro 6-7859

Grass Bagging Kit (Incl. Ref. 1 thru 8)

Note: Not illustrated

$

$

Not available
