20562 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1977) ENGINE ASSEMBLY (MODEL NO. 20562) Parts Diagram

Walk-Behind Mower

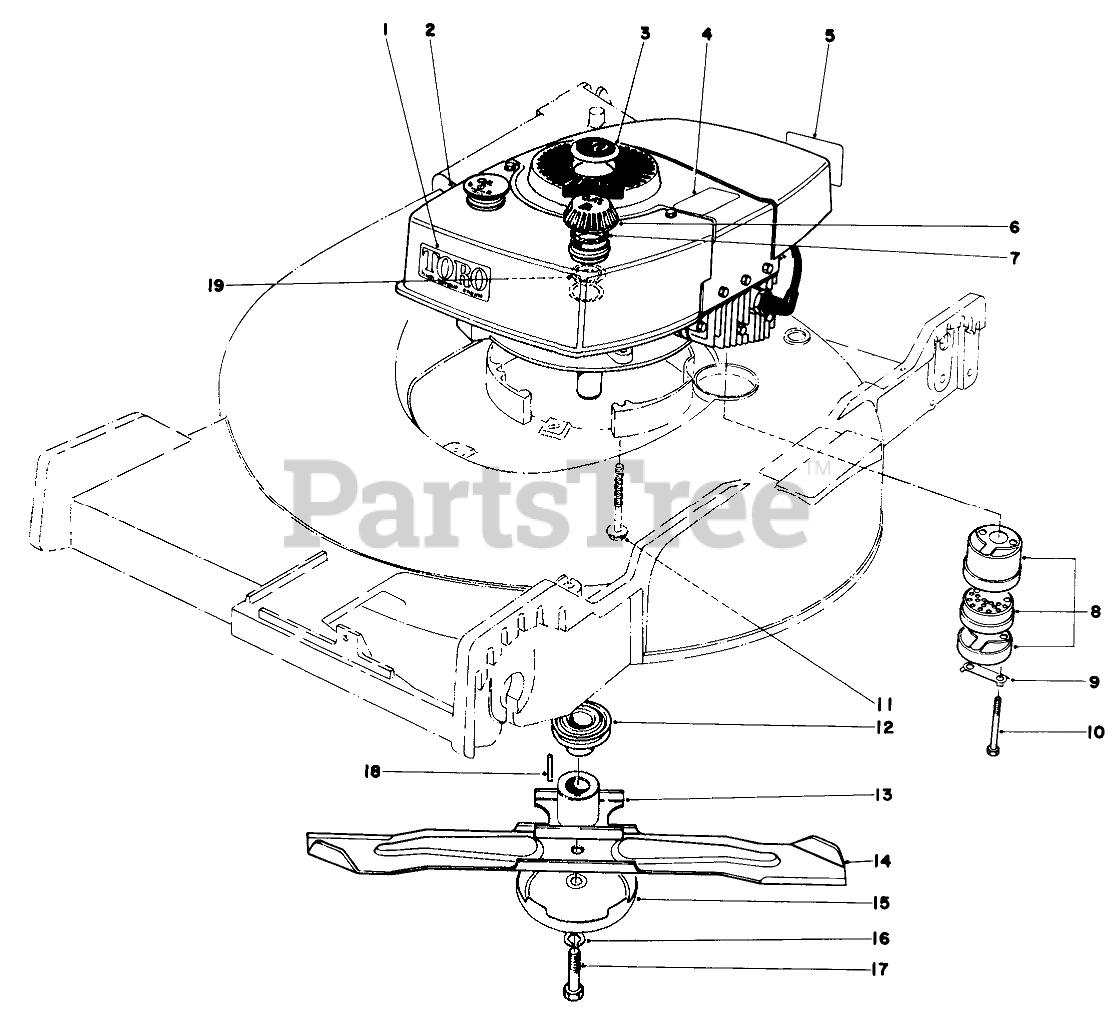

ENGINE ASSEMBLY (MODEL NO. 20562) Parts Diagram

  • Title

1

Toro 23-1260

High Torque

$

$

Not available

2

Toro 221-525

Engine

$

$

Currently unavailable

3

Toro 214870

Plug Button

$

$

Currently unavailable

4

Toro 25-1050

Decal Lockout

$

$

Not available

5

Toro 20-2710

Decal Maintenance

$

$

Not available

6

Toro 27-7870

Gas Cap Assembly (Incl. Ref. #7 & 19)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

8

Toro 5-4769

Muffler Assembly (Incl. Ref. #9 & 10)

$62.99

$

Usually ships in 3-6 days

0

9

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

10

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

12

Toro 21-5580

DRIVER PULLEY

$

$

Not available

13

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

14

Toro 26-0880

Blade
(Superseded to 107-4276-03)

$28.99

$

Usually ships in 3-6 days

0

15

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$17.99

$

Usually ships in 3-6 days

0

16

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

17

Toro 23-0080

BLADE SCREW

$

$

Not available

18

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

19

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available
