20560 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

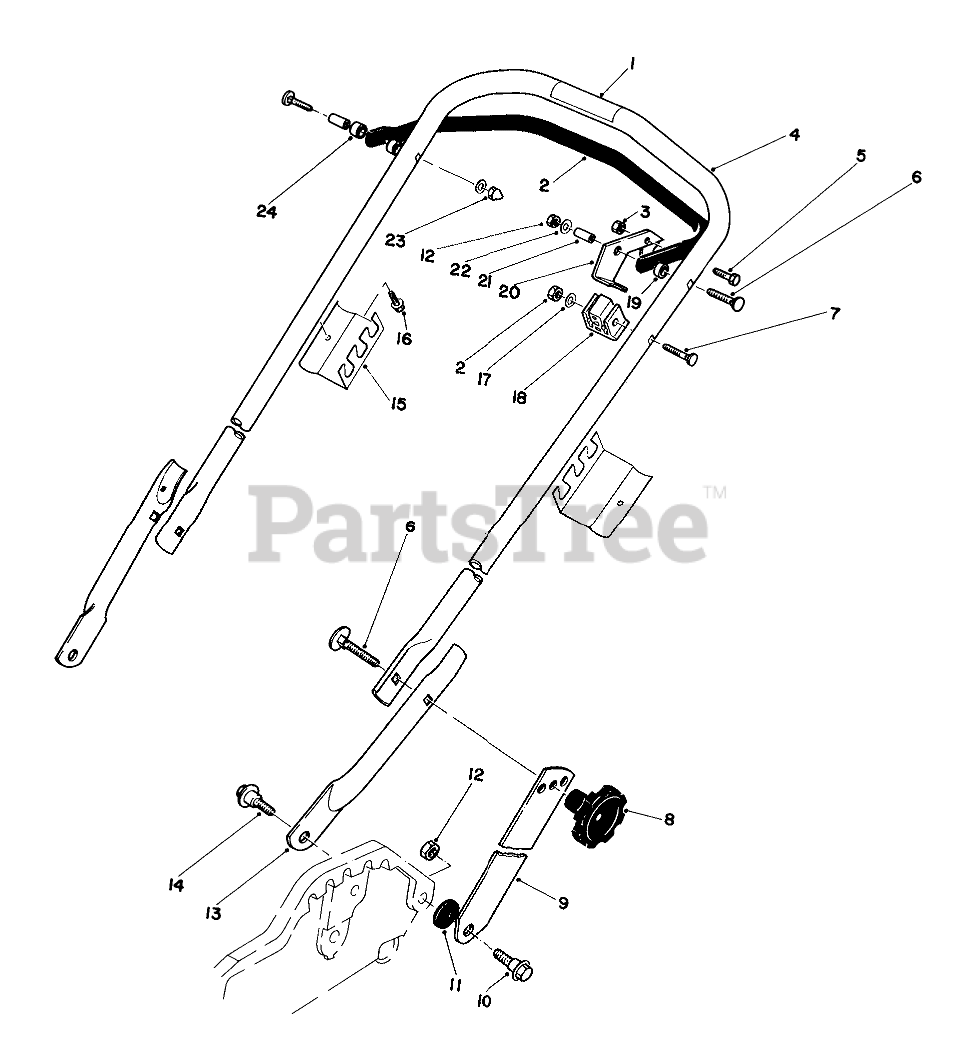

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 47-4580

Decal-Instructions

$

$

Not available

2

Toro 46-9900

CONTROL BAR

$

$

Not available

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

4

Toro 11-5439

Upper Handle (Incl. Ref. #1)

$184.99

$

Usually ships in 3-6 days

0

5

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro 17-9421

5/16-18 X 2 HNDLE SCREW
(Superseded to 92-2260)

$3.99

$

In Stock, Qty 5

0

7

Toro 46-6432

SCREW-HANDLE

$14.99

$

Usually ships in 3-6 days

0

8

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

9

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

10

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 1 left!

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

12

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

13

Toro 33-0520

Hand-Lower

$

$

Not available

14

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

15

Toro 46-9920

Bag Support

$

$

Not available

16

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

19

Toro 46-6240

Nylon Spacer

$

$

Not available

20

Toro 46-7950

Lever-Control
(Superseded to 66-5350)

$13.99

$

Usually ships in 3-6 days

0

21

Toro 46-5580

Spacer

$

$

Not available

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 32111-8

NUT-LOCK, CAP

$3.99

$

Usually ships in 3-6 days

0

24

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0
