20558 - Troy-Bilt Super Pony Rear-Tine Tiller (SN: P80157 - P80408) FORWARD/REVERSE IDLER ASSEMBLY Parts Diagram

Super Pony Rear-Tine Tiller

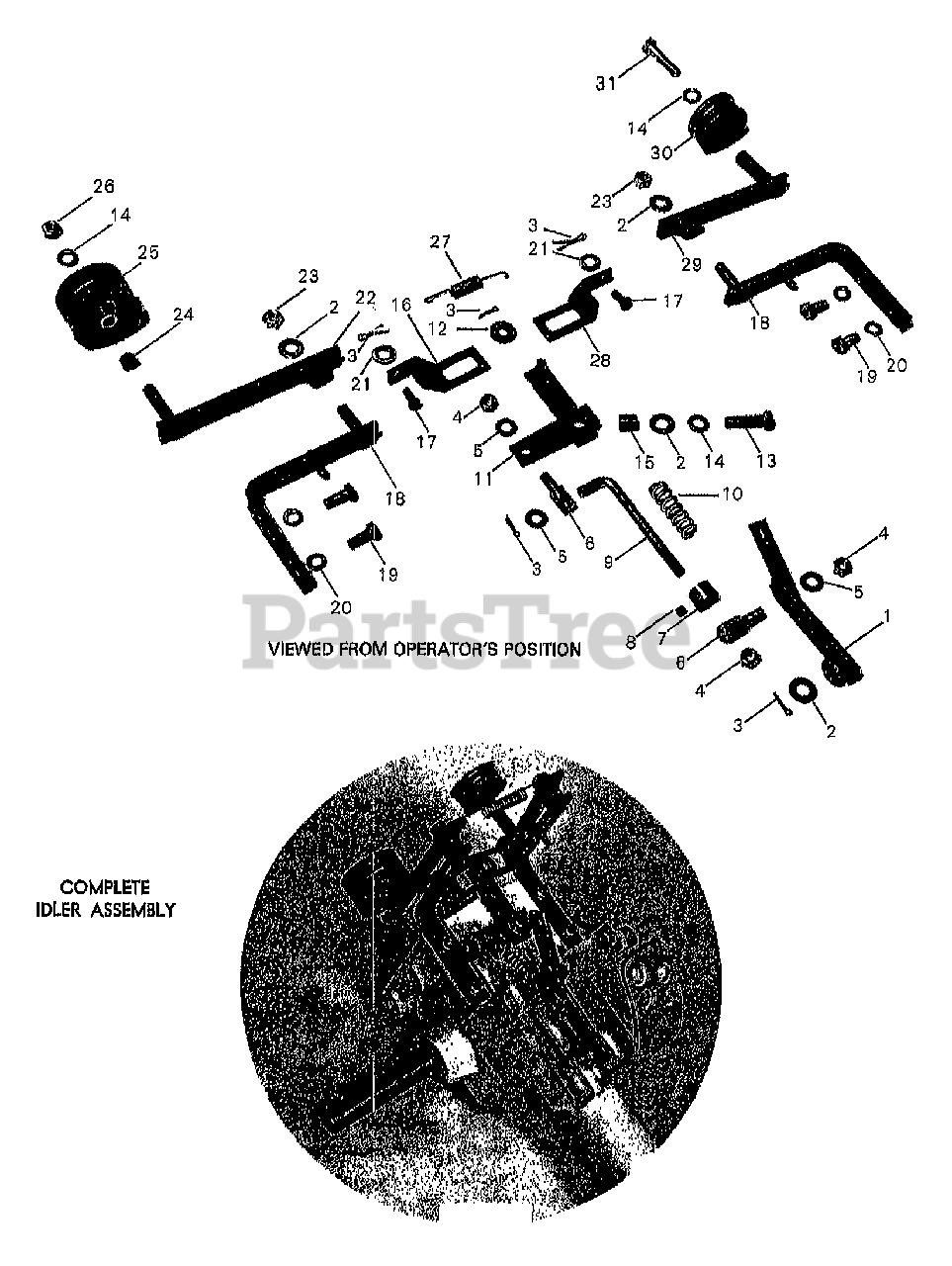

FORWARD/REVERSE IDLER ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 20376

LEVER-WELD REAM (FORWARD/REVERSE)

$

$

Currently unavailable

2

Troy-Bilt 9904

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

3

Troy-Bilt 9341

PIN-COTTER .09X.625

$

$

Currently unavailable

4

Troy-Bilt 9808

NUT-H/LK 5/16-18

$

$

Currently unavailable

5

Troy-Bilt 9902

WASHER-FLAT 5/16 SAE

$

$

Currently unavailable

6

Troy-Bilt 20354

SWIVEL

$

$

Currently unavailable

7

Troy-Bilt 20347

COLLAR-ADJUST

$

$

Currently unavailable

8

Troy-Bilt 9762

SCR-SS 1/4-20 X .25 (WITH BRASS TIP)

$

$

Currently unavailable

9

Troy-Bilt 20375

ROD-CONNECTING

$

$

Currently unavailable

10

Troy-Bilt 20403

SPRING-.48 X 3

$

$

Currently unavailable

11

Troy-Bilt 20345

BELLCRANK-WELD ZP

$

$

Currently unavailable

12

Troy-Bilt 20378

WASHER-#1X .316 X.062 ZP

$

$

Currently unavailable

13

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

14

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

15

Troy-Bilt 20352

BUSHING-.5X.375X.53 (FITS IN #20345 BELLCRANK)

$

$

Currently unavailable

16

Troy-Bilt 20373

LINK-IDLER ARM LT

$

$

Currently unavailable

17

MTD 9340

PIN-CLEVIS .375X.719 (TAKES COTTER PIN)

$

$

Not available

18

Troy-Bilt 20351

BRKT-IDLER SUPPORT

$

$

Currently unavailable

19

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

20

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

21

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

22

Troy-Bilt 20371

ARM-IDLER FWD WELD

$

$

Currently unavailable

23

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

24

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 9193

PULLEY-FWD IDLER

$

$

Currently unavailable

26

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

27

Troy-Bilt 1122

SPRING-.406 X 3.125

$

$

Currently unavailable

28

Troy-Bilt 20374

LINK-IDLER ARM RT

$

$

Currently unavailable

29

Troy-Bilt 20372

ARM-IDLER REV WELD

$

$

Currently unavailable

30

Troy-Bilt 9179

PULLEY-REV IDLER

$

$

Currently unavailable

31

Troy-Bilt 9713

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Currently unavailable
