20550 - Toro Walk-Behind Mower (SN: 005000001 - 005999999) (1975) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

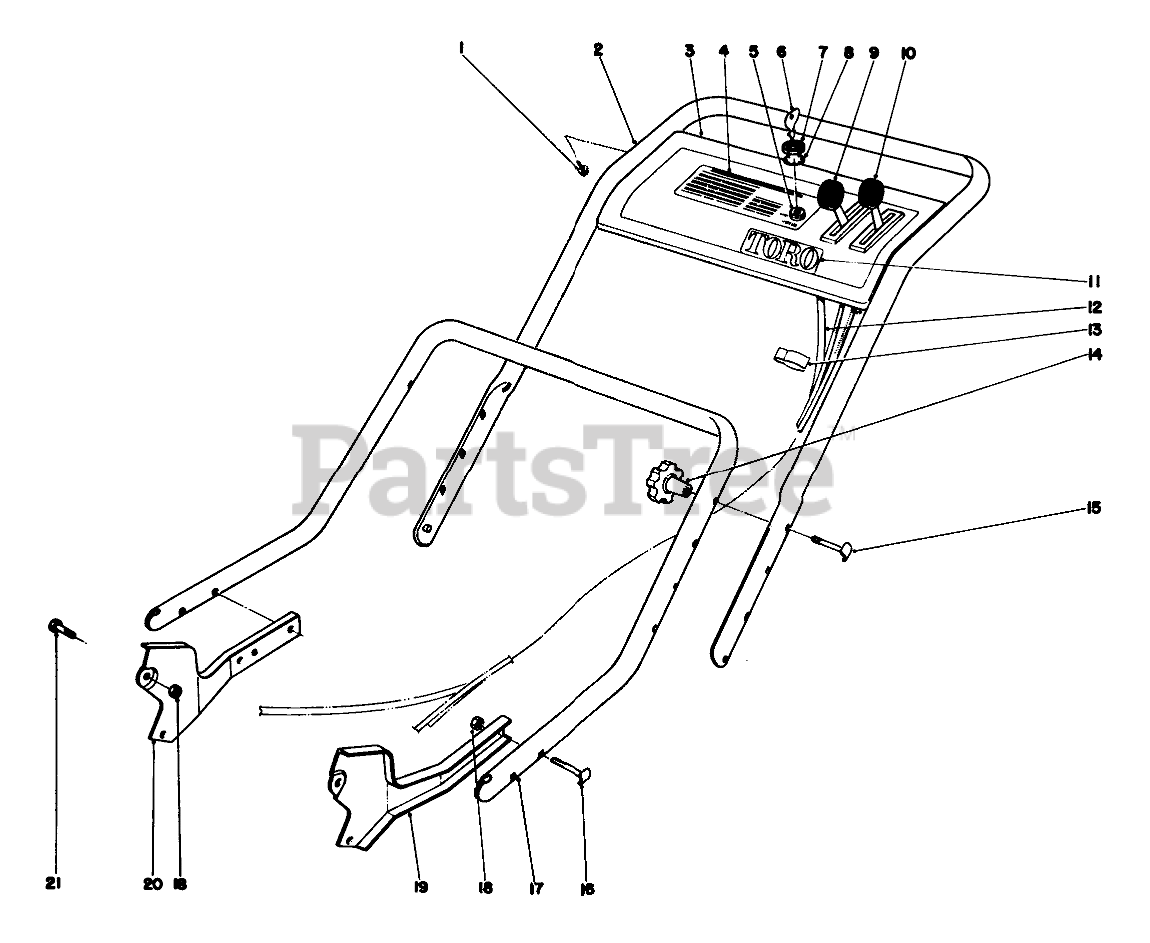

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

2

Toro 23-0580

Upper Handle

$

$

Not available

3

Toro 25-0390

Control Plate

$

$

Not available

4

Toro 23-0770

Decal-Control Plate

$

$

Currently unavailable

5

Toro 23-0650

Switch
(Superseded to 29-5560)

$17.99

$

In Stock, only 2 left!

0

6

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, only 1 left!

0

7

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

8

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

9

Toro 20-9780

SPEED CONTROL

$

$

Not available

10

Toro 25-1030

Control Traction
(Superseded to 46-6050)

$

$

Not available

11

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

12

Toro 23-0820

Wire Harness

$

$

Not available

13

Toro 218-465

BOWDEN CLIP

$

$

Not available

14

Toro 19-4050

KNOB

$17.99

$

In Stock, only 2 left!

0

15

Toro 6-6330

HANDLE SCREW

$

$

Not available

16

Toro 23-9140

Handle Screw

$

$

Currently unavailable

17

Toro 25-2230

Lower Handle

$

$

Currently unavailable

18

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

19

Toro 25-2220

Latch Handle L.H.

$

$

Currently unavailable

20

Toro 25-2210

RH HANDLE LATCH

$

$

Not available

21

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

Toro 24-8740

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
