20550 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1974) ENGINE ASSEMBLY MODEL NO. 20660 Parts Diagram

Walk-Behind Mower

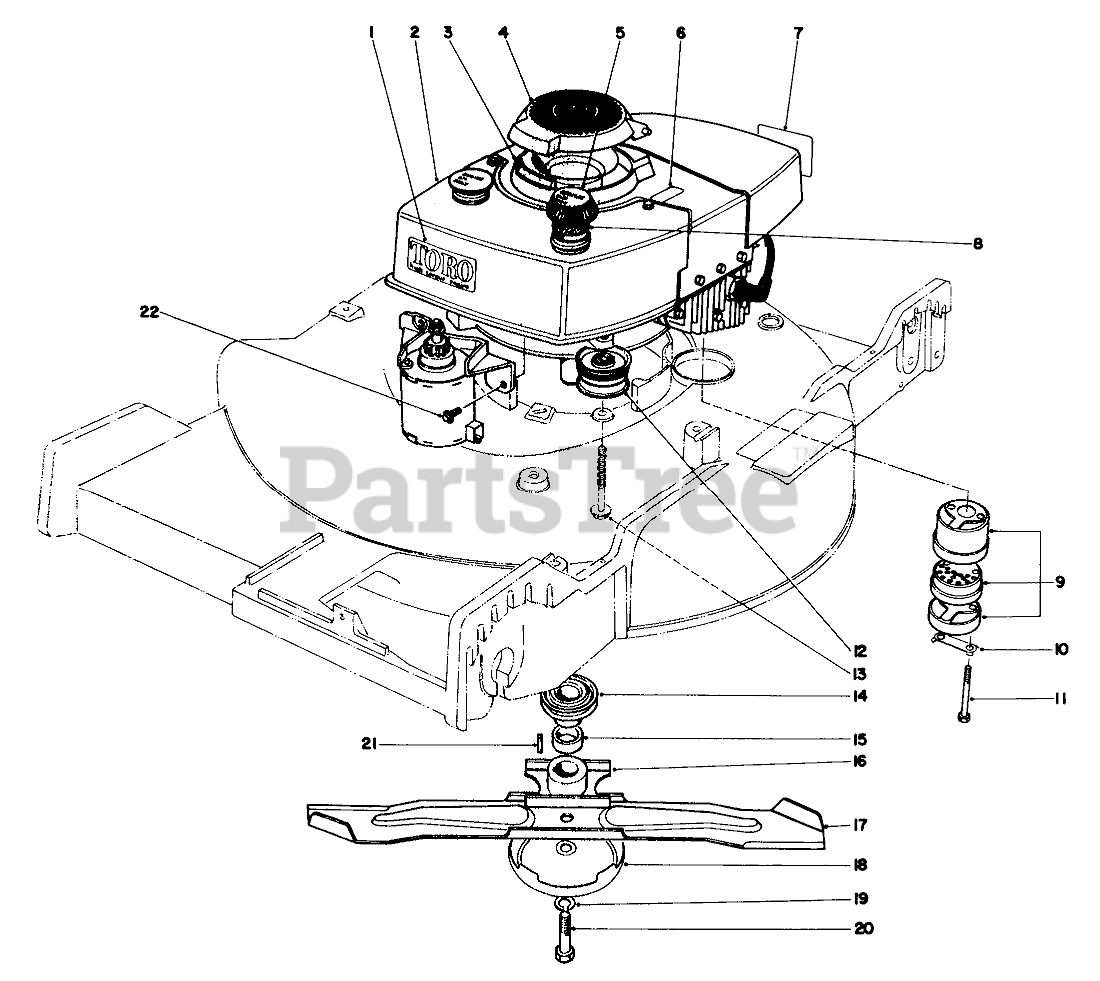

ENGINE ASSEMBLY MODEL NO. 20660 Parts Diagram

  • Title

1

Toro 23-1260

High Torque

$

$

Not available

2

Toro 221464

Engine

$

$

Currently unavailable

3

Toro 214850

Base-Hinged

$

$

Currently unavailable

4

Toro 23-0620

Cover-Hinged
(Superseded to 38-4720)

$

$

Not available

5

Toro 224790

Gas Cap (Incl. Ref. #8)

$

$

Currently unavailable

6

Toro 204680

Decal-Caution

$

$

Currently unavailable

7

Toro 20-2710

Decal Maintenance

$

$

Not available

8

Toro 5-2044

Gasket

$

$

Currently unavailable

9

Toro 5-4769

MUFFLER ASM

$62.99

$

Usually ships in 3-6 days

0

10

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

11

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

12

Toro 23-2470

Idler Pulley
(Superseded to 24-6510)

$

$

Not available

13

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

14

Toro 23-0130

Pulley
(Superseded to 93-0278)

$49.99

$

Usually ships in 3-6 days

0

15

Toro 23-0120

Spacer Pulley

$

$

Currently unavailable

16

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

17

Toro 23-0070

Blade
(Superseded to 107-4276-03)

$30.99

$

In Stock, only 1 left!

0

18

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$16.99

$

Usually ships in 3-6 days

0

19

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

20

Toro 23-0080

BLADE SCREW

$

$

Not available

21

Toro 21-5060

Key Square
(Superseded to 27-6300)

$6.49

$

In Stock, only 1 left!

0

22

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0
