2054F (55AF3B6K195) - MTD Pro Hydro Walk-Behind Mower Kohler Engine Oil Pan & Lubrication Parts Diagram

Pro Hydro Walk-Behind Mower

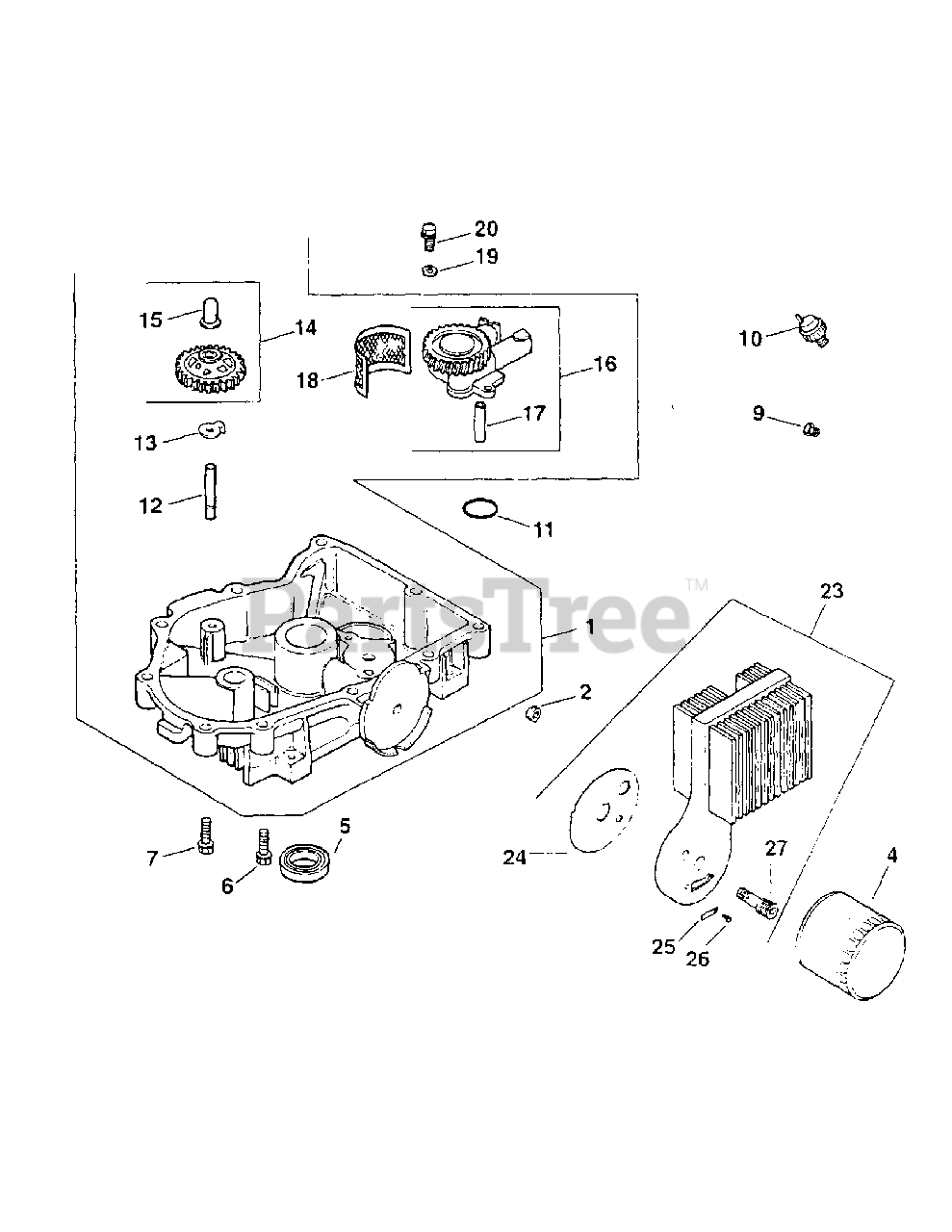

Kohler Engine Oil Pan & Lubrication Parts Diagram

  • Title

1

MTD KH-24-199-07

Oil Pan Assembly
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 1 left!

0

2

MTD KH-25-139-62-S

Plug, Allen Head 3/8"

$3.49

$

In Stock, only 2 left!

0

4

MTD KH-28-050-01-S

Filter, Oil

$22.99

$

In Stock, only 1 left!

0

5

MTD KH-25-032-06-S

Seal, Oil (PTO END)

$10.99

$

In Stock, Qty 20+

0

6

MTD KH-24-086-17-S

Screw, Hex Flange

$2.49

$

In Stock, Qty 7

0

7

MTD KH-24-086-17-S

Screw, Hex Flange

$2.49

$

In Stock, Qty 7

0

9

MTD KH-52-139-02

Plug, Hex Head 3/8"

$

$

Not available

10

MTD KH-25-099-27-S

Switch, Oil Pressure

$15.99

$

In Stock, only 4 left!

0

11

MTD KH-24-153-08

0-Ring

$

$

Not available

12

MTD KH-12-144-02

Shaft, Governor Gear

$

$

Not available

13

MTD KH-24-448-01-S

Tab, Locking

$2.49

$

In Stock, only 2 left!

0

14

MTD KH-24-043-12

Kit, Governor Gear w/Pin

$

$

Not available

15

MTD KH-12-380-01

Pin, Governor Regulating

$

$

Not available

16

MTD KH-24-393-53-S

Oil Pump Assembly

$

$

Not available

17

MTD KH-24-123-05

Tube, Oil Pickup
(Superseded to KH-24-381-11-S)

$

$

Not available

18

MTD KH-12-162-02

Screen, Oil Pickup

Note: NLA

$

$

Not available

19

MTD KH-M-631005

Washer, Plain 6mm

$

$

Not available

20

MTD KH-M-645025-S

Screw, Hex Flange
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 2 left!

0

23

MTD KH-24-755-52

Kit, Oil Cooler

Note: NLA

$

$

Not available

24

MTD n/a

Gasket, Oil Filter Adapter

$

$

Currently unavailable

25

MTD KH-24-402-02

Reed, Oil Relief

$

$

Not available

26

MTD KH-M-448010

Screw, Hex Cap

$

$

Not available

27

MTD KH-28-136-01-S

Nipple, Oil Filter

$90.99

$

Usually ships in 2-5 days

0

MTD KH-24-755-107-S

Gasket Set

Note: (not shown)

$143.99

$

In Stock, only 3 left!

0
